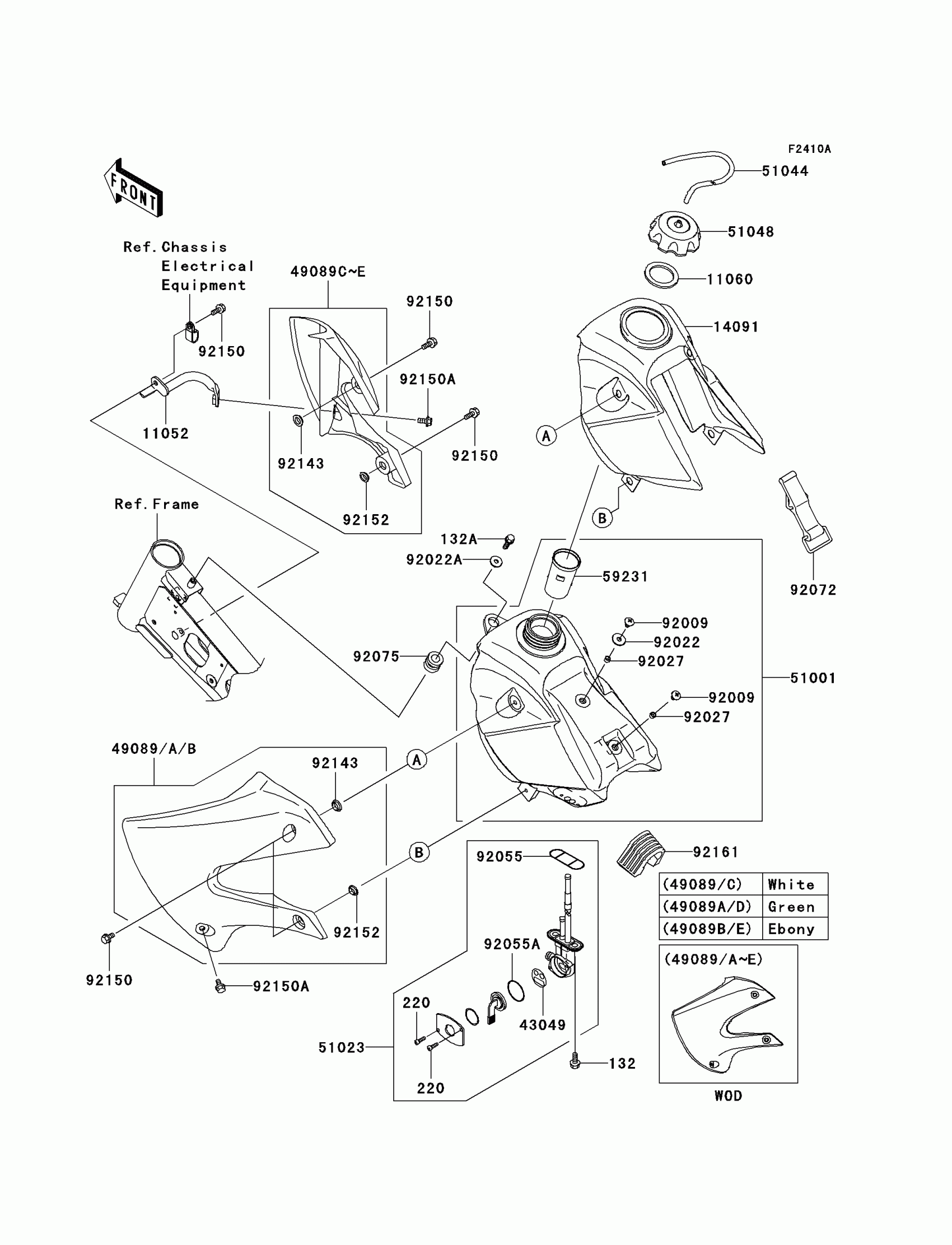

Kawasaki KLX®110 Fuel Tank(A8F-A9FA) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X14
132BA0614
$1.46
220
SCREW-PAN-CROS,3X8
220AA0308
$0.59
11052
BRACKET,SHROUD,RH
11052-1639
$29.22
11060
GASKET,FUEL TANK CAP
11060-1340
$6.16
14091
COVER,FUEL TANK,F.BLACK
14091-0884-6Z
$67.28
43049
PACKING,TAP VALVE
43049-1091
$7.26
49089B
SHROUD-ENGINE,LH,EBONY
49089-1144-6C
$48.02
49089E
SHROUD-ENGINE,RH,EBONY
49089-1145-6C
$47.71
51001
TANK-COMP-FUEL,F.BLACK
51001-0222-6Z
$595.55
51023
TAP-ASSY,FUEL
51023-1342
$63.81
51044
TUBE-ASSY
51044-1185
$17.39
51048
CAP-ASSY-TANK,FUEL
51048-0014
$54.33
59231
FILLER
59231-1096
$6.16
92009
SCREW,6X10
92009-1530
$3.92
92022
WASHER,PLAIN,6.5X20X1
92022-165
$3.74
92022A
WASHER,6.5X24X2
92022-1690
$3.92
92027
COLLAR,6.2X7.8X5
92027-2096
$0.49
92055
RING-O,FUEL TAP PACKING
92055-1348
$7.34
92055A
RING-O,TAP LEVER
92055-1419
$5.00
92072
BAND,FUEL TANK
92072-1229
$12.74
92075
DAMPER
92075-1787
$6.57
92143
COLLAR
92143-1196
$4.69
92150
BOLT,6X12
92150-1435
$4.31
92150A
BOLT,FLANGED,6X16
92150-1506
$5.00
92152
COLLAR
92152-1235
$4.13
92161
DAMPER,FUEL TANK,RR
92161-1077
$17.76
