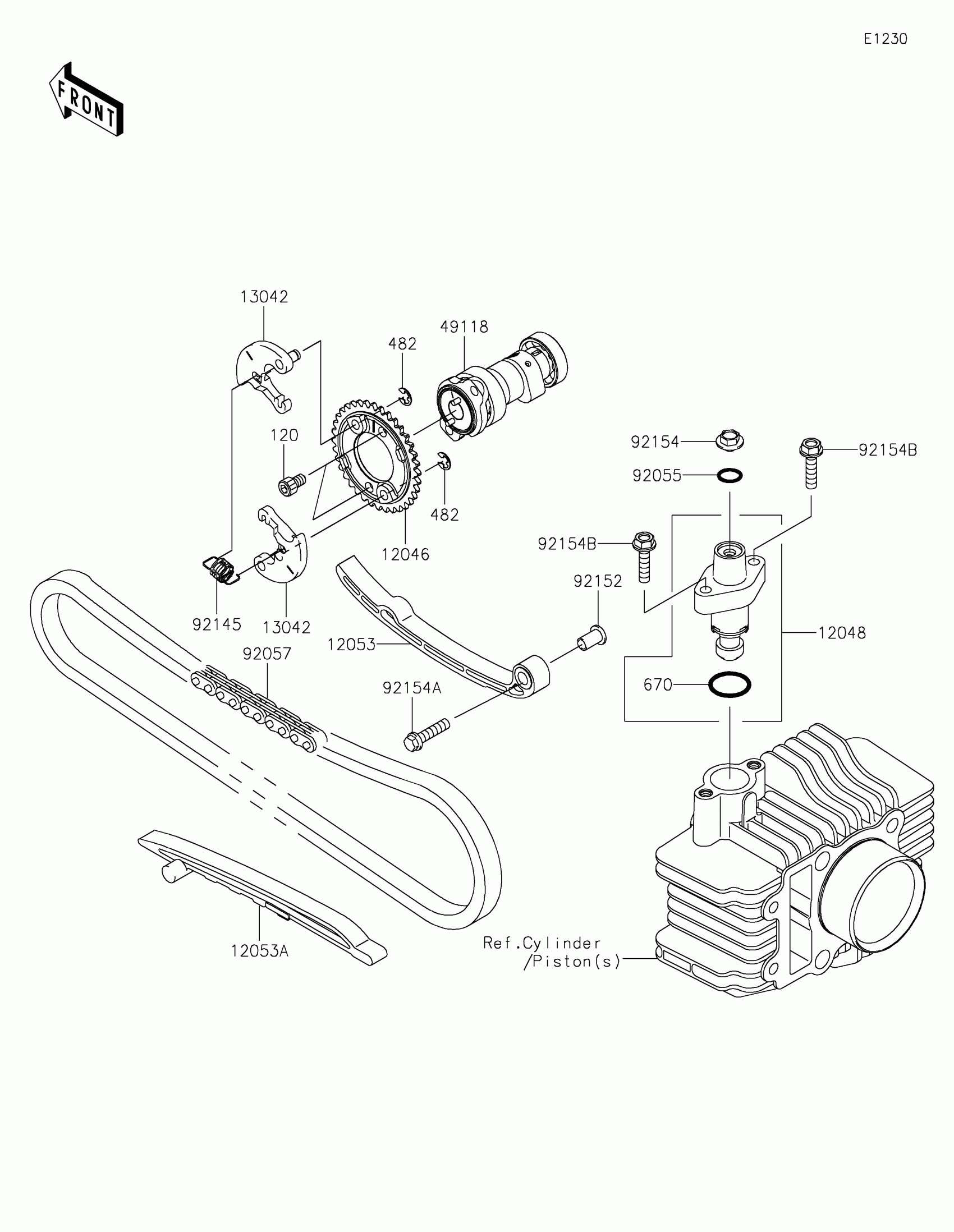

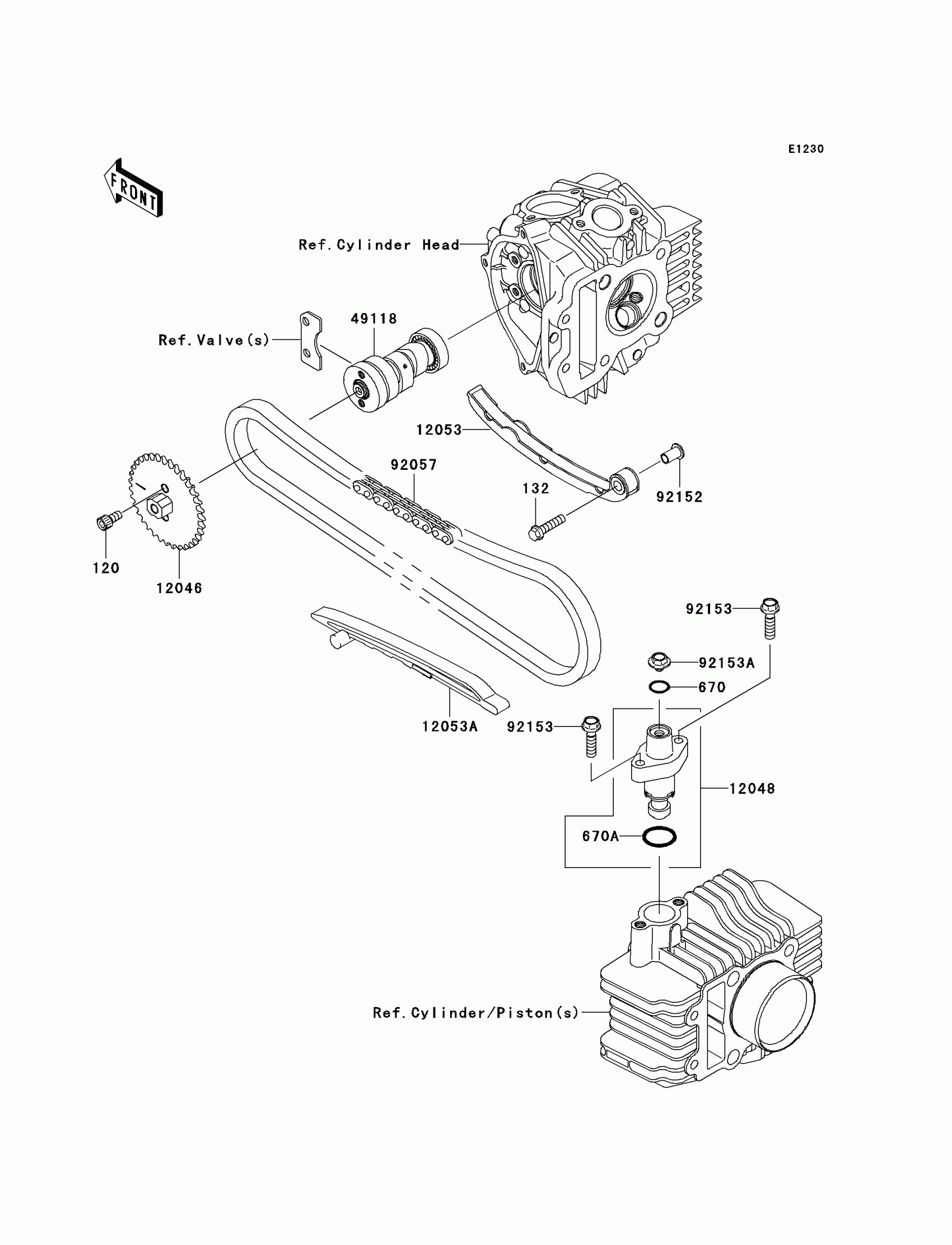

Kawasaki KLX®110 Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X10

120CA0610

$1.71

12046

SPROCKET,36T

12046-0591

$75.13

12048

TENSIONER-ASSY

12048-1164

$55.56

12053

GUIDE-CHAIN

12053-0185

$44.67

12053A

GUIDE-CHAIN

12053-1461

$3.93

13042

WEIGHT,DECOMP

13042-1141

$44.00

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

49118

CAMSHAFT-COMP

49118-0880

$145.07

670

O RING,21MM

670D2021

$6.85

92055

RING-O,9.8X2.4

92055-0060

$2.61

92057

CHAIN,CAM,94L

92057-0610

$47.96

92145

SPRING

92145-0132

$2.71

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.67

92154

BOLT,FLANGED,6X6

92154-0536

$1.94

92154A

BOLT,FLANGED,6X25

92154-1156

$1.97

92154B

BOLT,FLANGED,6X25

92154-1196

$0.85
