Description

Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

WASHER SPRING 6MM

461F0600

$0.69

3

COLLAR

92027-1045

$5.52

4

SCREW-PAN-CROS

220B0518

$4.62

5

WASHER SPRING 5MM

461F0500

$0.69

6

LAMP,TAIL

23025-4001

$32.92

7

SCREW-PAN-CROS

220B0330

$1.73

8

LENS,TAIL LAMP

23026-040

Unavailable

9

CASE,TAIL LAMP

23027-044

$83.51

10

GASKET,TAIL LIGHT

23028-020

Unavailable

11

BULB,12V 27/8W

92069-059

$8.12

12

BRACKET-TAIL LAMP

23036-4003

$10.54

13

DAMPER RUBBER

92075-4014

Unavailable

14

WASHER PLAIN 5MM

410B0500

$0.46

15

DAMPER

92075-277

$2.84

16

NUT,LOCK,6MM

92019-008

$4.26

17

BRKT,TAIL LAMP

23036-4002

$10.55

18

BOLT-UPSET,6X12

112G0612

$1.45

19

WASHER SPRING 6MM

461F0600

$0.69

20

WASHER PLAIN 6MM

411B0600

$2.84

21

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

22

WASHER SPRING 5MM

461F0500

$0.69

23

WASHER,5.2X16X1.2

92022-263

$1.66

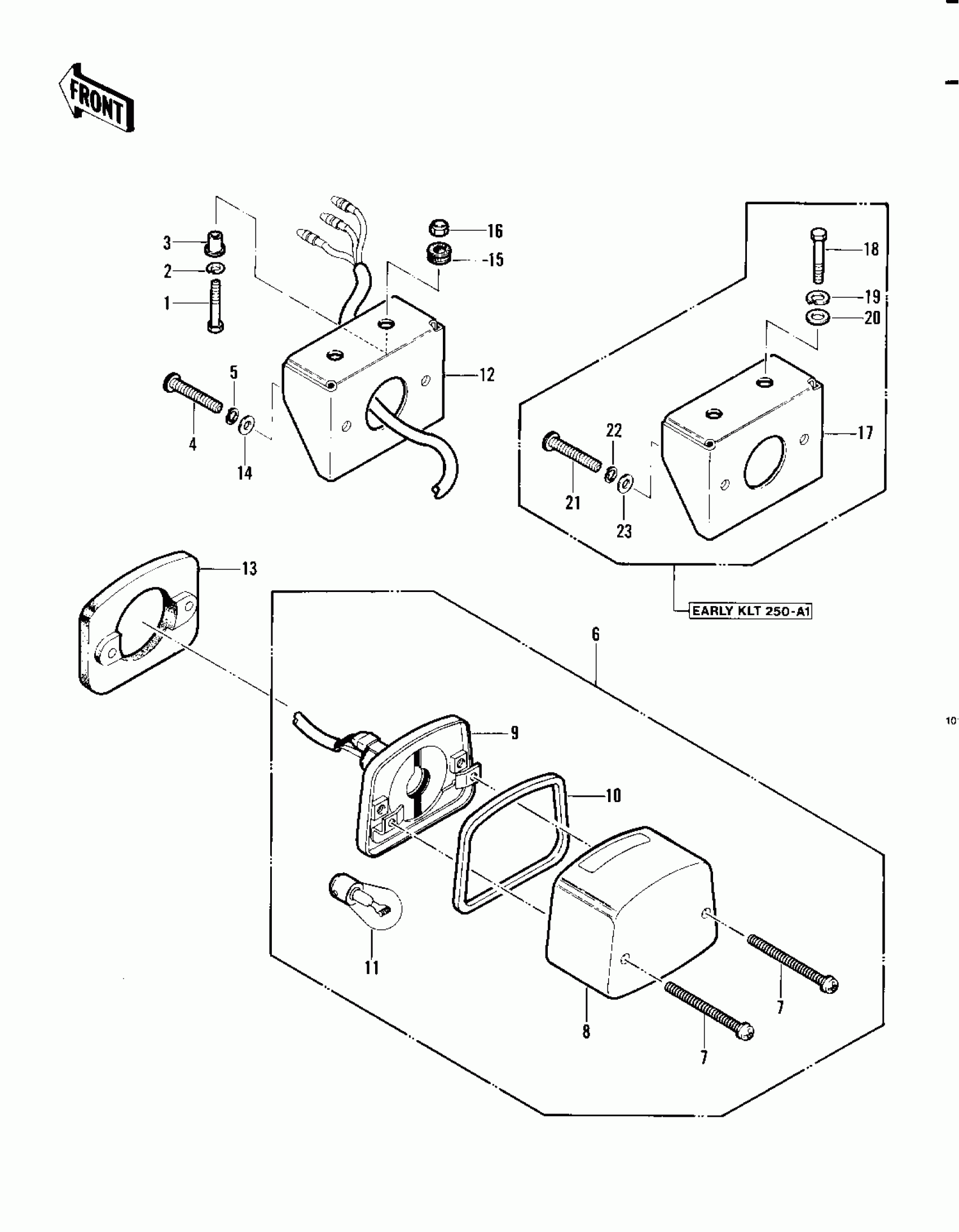

Kawasaki KLT250 TAILLIGHT ('82 A1) Diagram

BOLT-UPSET,6X20

WASHER SPRING 6MM

COLLAR

SCREW-PAN-CROS

WASHER SPRING 5MM

LAMP,TAIL

SCREW-PAN-CROS

LENS,TAIL LAMP

CASE,TAIL LAMP

GASKET,TAIL LIGHT

BULB,12V 27/8W

BRACKET-TAIL LAMP

DAMPER RUBBER

WASHER PLAIN 5MM

DAMPER

NUT,LOCK,6MM

BRKT,TAIL LAMP

BOLT-UPSET,6X12

WASHER SPRING 6MM

WASHER PLAIN 6MM

UNAVAILABLE IN PRICE BOOK

WASHER SPRING 5MM

WASHER,5.2X16X1.2
