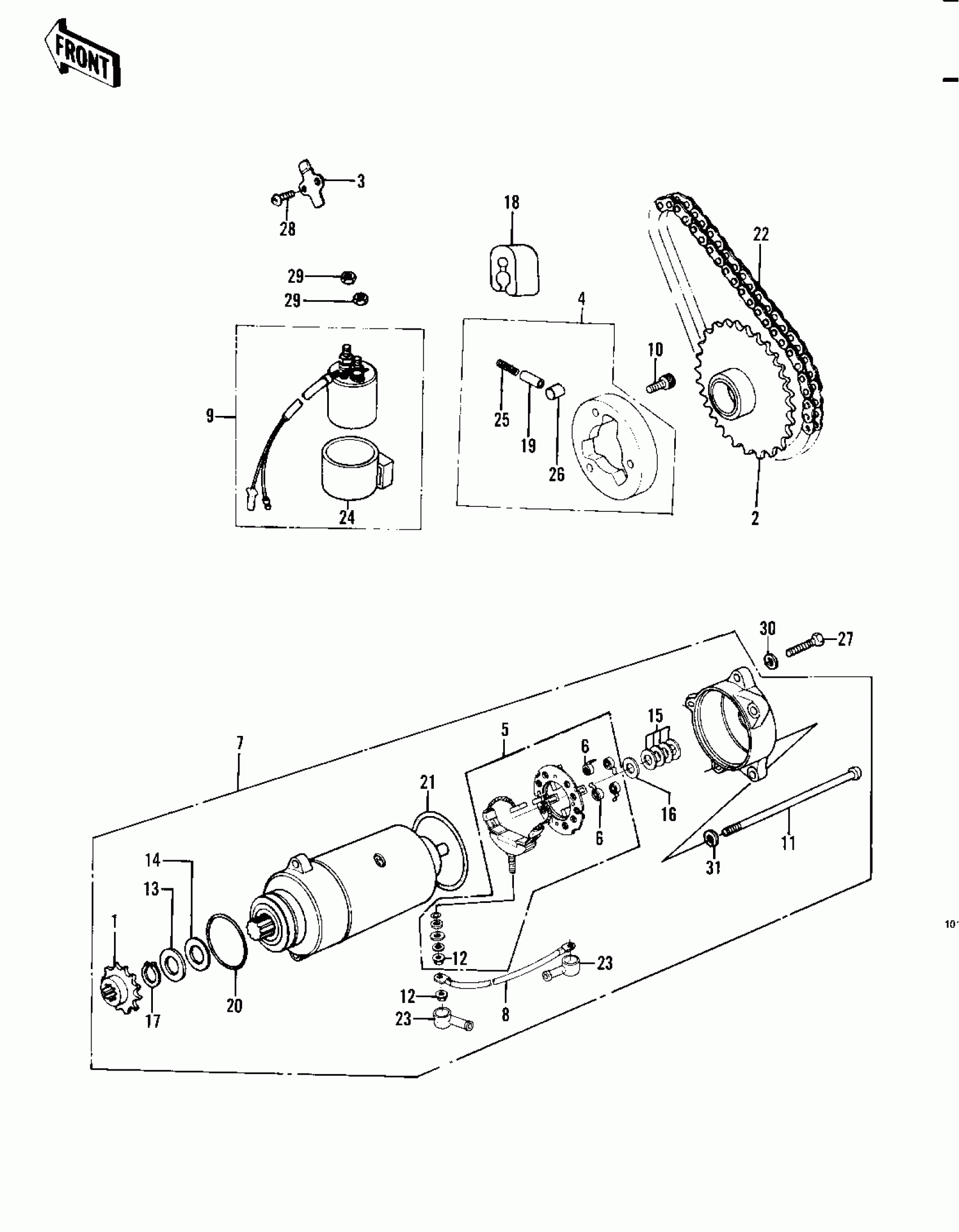

Kawasaki KLT250 STARTER MOTOR/STARTER CLUTCH ('82 A1) Diagram
#
Description
Price
1
SPROCKET,STARTER MOTO
12046-1004
Unavailable
2
SPROCKET,STARTER
12046-1023
Unavailable
3
PLATE
13169-1010
Unavailable
4
CLUTCH-ASSY-ONEWAY
13193-1006
$178.91
5
BRUSH,CARBON
21039-1007
Unavailable
6
SPRING CARBON BRUSH
21040-004
Unavailable
7
STARTER-ELECTRIC
21163-1036
Unavailable
8
WIRE-LEAD,STARTER MOT
26011-1201
$48.53
9
SWITCH ASSY,MAGNETIC
21164-005
$159.50
10
BOLT-SOCKET,8X16
120P0816
$4.15
11
SCREW,PAN HEAD,6X119
92009-1097
Unavailable
12
NUT,FLANGED,6MM
92015-1078
Unavailable
13
WASHER,PLAIN,14MM
21025-008
Unavailable
14
WASHER PLAIN 14MM
21025-009
Unavailable
15
WASHER,9.1X18X0.2
21025-011
Unavailable
16
WASHER,9.1X18X0.8
92022-1132
$6.22
17
RING-SNAP,13MM
92033-037
$9.80
18
CLAMP,CABLE
92037-1049
$3.60
19
PIN
92043-087
$12.76
20
RING-O,42.8MM
21027-005
Unavailable
21
RING-O,64MM
92055-1086
$10.00
22
CHAIN,DYNAMO
92057-1009
$49.50
23
CAP,STARTING MOTOR
21017-020
$8.42
24
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
25
SPRING
92081-110
$4.76
26
ROLLER,15X14.4
92122-001
$11.60
27
BOLT-UPSET
112G0625
$3.62
28
SCREW-PAN-CROS,6X14
220B0614
$1.48
29
NUT-HEX,8MM
311G0800
Unavailable
30
WASHER PLAIN 6MM
411B0600
$2.84
31
WASHER SPRING 6MM
461F0600
$0.69
