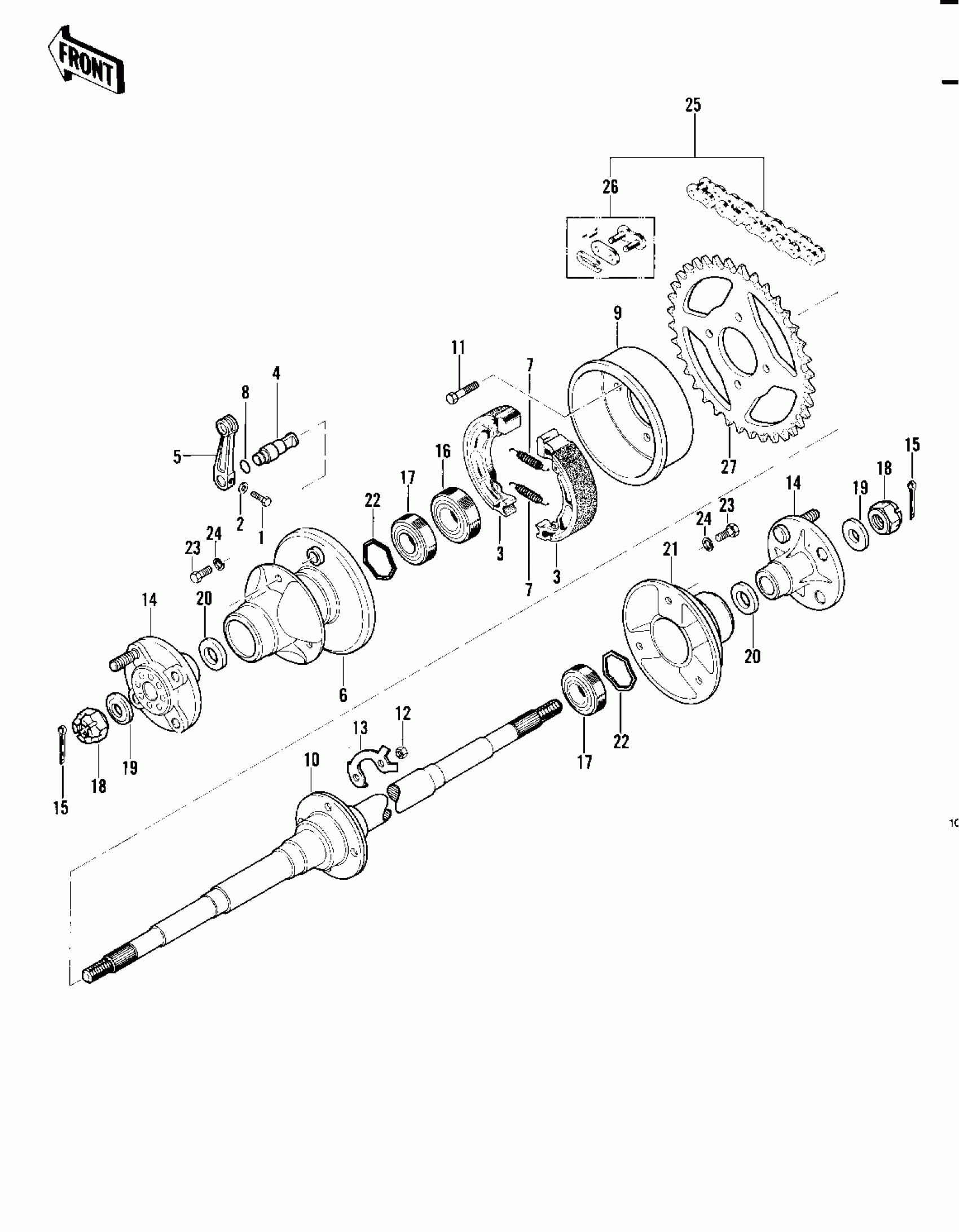

Kawasaki KLT250 REAR AXLE/BRAKE/CHAIN ('82 A1) Diagram

#

Description
Price

1

BOLT-UPSET

112G0622

$3.48

2

WASHER PLAIN 6MM

411B0600

$2.84

3

SHOE-BRAKE

41048-1068

$27.31

4

CAM SHAFT,BRAKE

41050-1002

Unavailable

5

LEVER BRAKE CAM

41053-1022

Unavailable

6

PANEL-REAR BRAKE

42016-4004

$105.97

7

SPRING,BRAKE SHOE

42020-004

$8.51

8

O RING,15MM

670B2015

$1.42

9

DRUM,REAR

41038-4009

$41.13

10

AXLE,REAR

41068-4008

$161.55

11

BOLT,10X30

92001-4017

$4.36

12

NUT,10MM

92015-1429

$6.88

13

WASHER

92022-4022

$3.41

14

HUB

49030-4001

Unavailable

15

PIN COTTER 4.0X30

550D4030

$2.33

16

BEARING-BALL,#6008UU

601A6008UU

$61.39

17

BEARING-BALL

601A6206UU

$40.38

18

NUT

92015-4015

Unavailable

19

WASHER,16X41X4

92022-230

$11.93

20

WASHER

92022-4020

$2.77

21

HOUSING, BEARING

41046-4005

$81.56

22

SPRING,BEARING

92081-4019

$7.09

23

BOLT

92001-160

Unavailable

24

WASHER SPRING 10MM

461F1000

$0.67

25

DR CHAIN 520X98

92057-106

$175.64

26

CHAIN JOINT 520

92058-1001

Unavailable

27

SPROCKET-HUB,50T

42041-4008

Unavailable
