Description

Price

1

GASKET,OIL PUMP

11060-1115

$5.18

2

PUMP ASSY OIL

16082-1015

$181.60

3

GEAR,OIL PUMP

16085-026

Unavailable

4

FILTER-ASSY-OIL

16097-1001

$12.23

5

PISTON-ASSY,VALVE,BY-PASS

16156-002

$23.25

6

VALVE

92136-002

$4.65

7

COVER-PUMP,WATER

16142-1008

$57.97

8

ROTOR-PUMP

16154-1008

$34.82

9

BODY,OIL PUMP

16141-006

$24.49

10

ELEMENT-OIL FILTER

16099-004

$9.26

11

GEAR,OIL PUMP

16084-018

$11.54

12

WASHER,THRUST,16.5X28X1

92022-170

$9.28

13

PIN,DOWEL,4X12.8

92042-041

$6.57

14

PIN,SPRING,2.2X13.5

92043-123

$4.69

15

GROMMET,OIL STRAINER

92071-100

$5.46

16

SPRING,PISTON

92081-043

$5.46

17

SCREW-PAN-CROS,6X16

220B0616

$2.84

18

SCREW PAN HEAD 6X25

220B0625

$2.60

19

NUT-HEX-FINE,16MM

315B1600

Unavailable

20

WASHER-CLAW,16MM

420B1611

$3.59

21

PIN DOWEL 3X12

551A0312

Unavailable

22

PIN-DOWEL,6X8

551A0608

$3.92

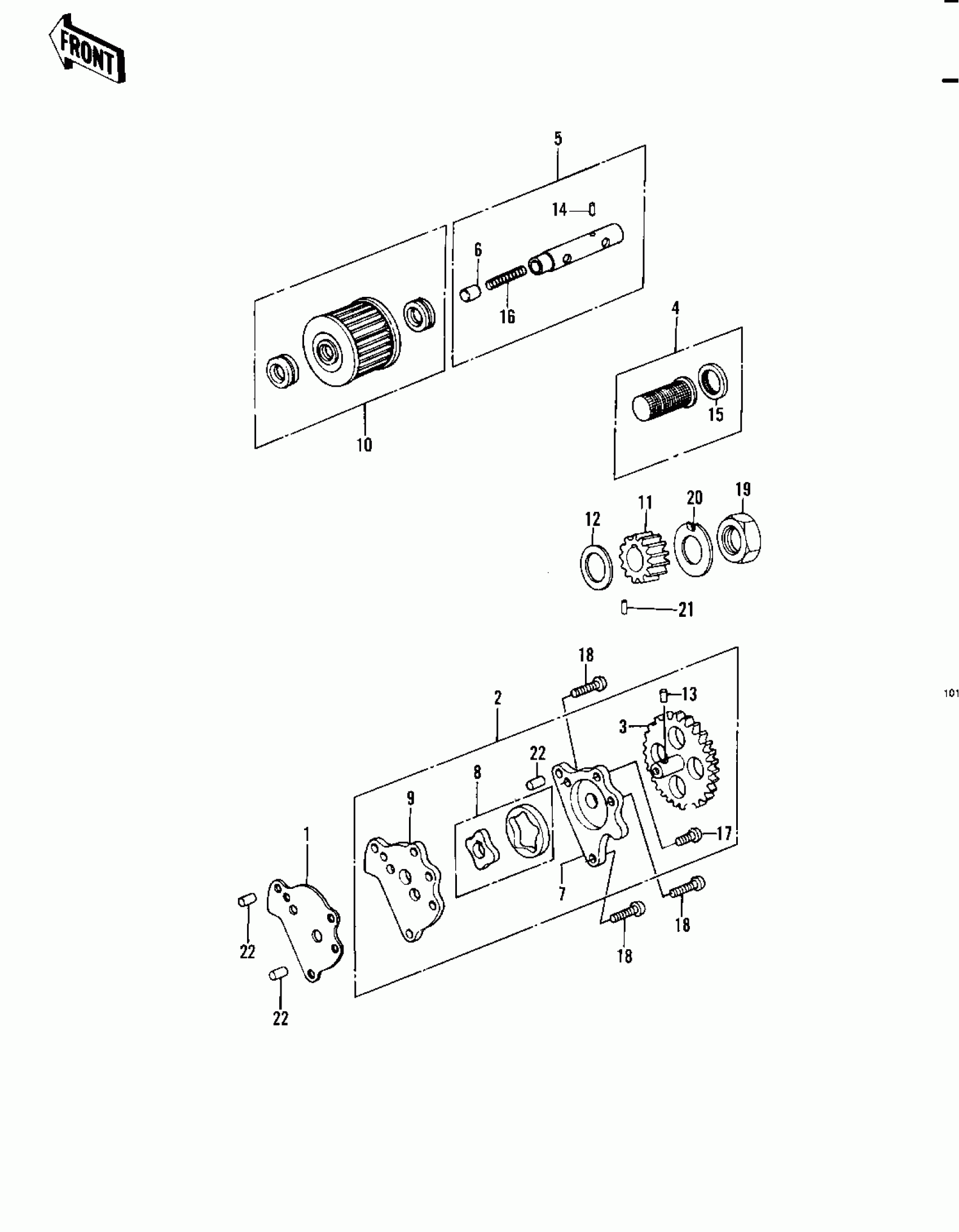

Kawasaki KLT250 OIL PUMP/OIL FILTER ('82 A1) Diagram

GASKET,OIL PUMP

PUMP ASSY OIL

GEAR,OIL PUMP

FILTER-ASSY-OIL

PISTON-ASSY,VALVE,BY-PASS

VALVE

COVER-PUMP,WATER

ROTOR-PUMP

BODY,OIL PUMP

ELEMENT-OIL FILTER

GEAR,OIL PUMP

WASHER,THRUST,16.5X28X1

PIN,DOWEL,4X12.8

PIN,SPRING,2.2X13.5

GROMMET,OIL STRAINER

SPRING,PISTON

SCREW-PAN-CROS,6X16

SCREW PAN HEAD 6X25

NUT-HEX-FINE,16MM

WASHER-CLAW,16MM

PIN DOWEL 3X12

PIN-DOWEL,6X8
