1982 Kawasaki KLT250 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

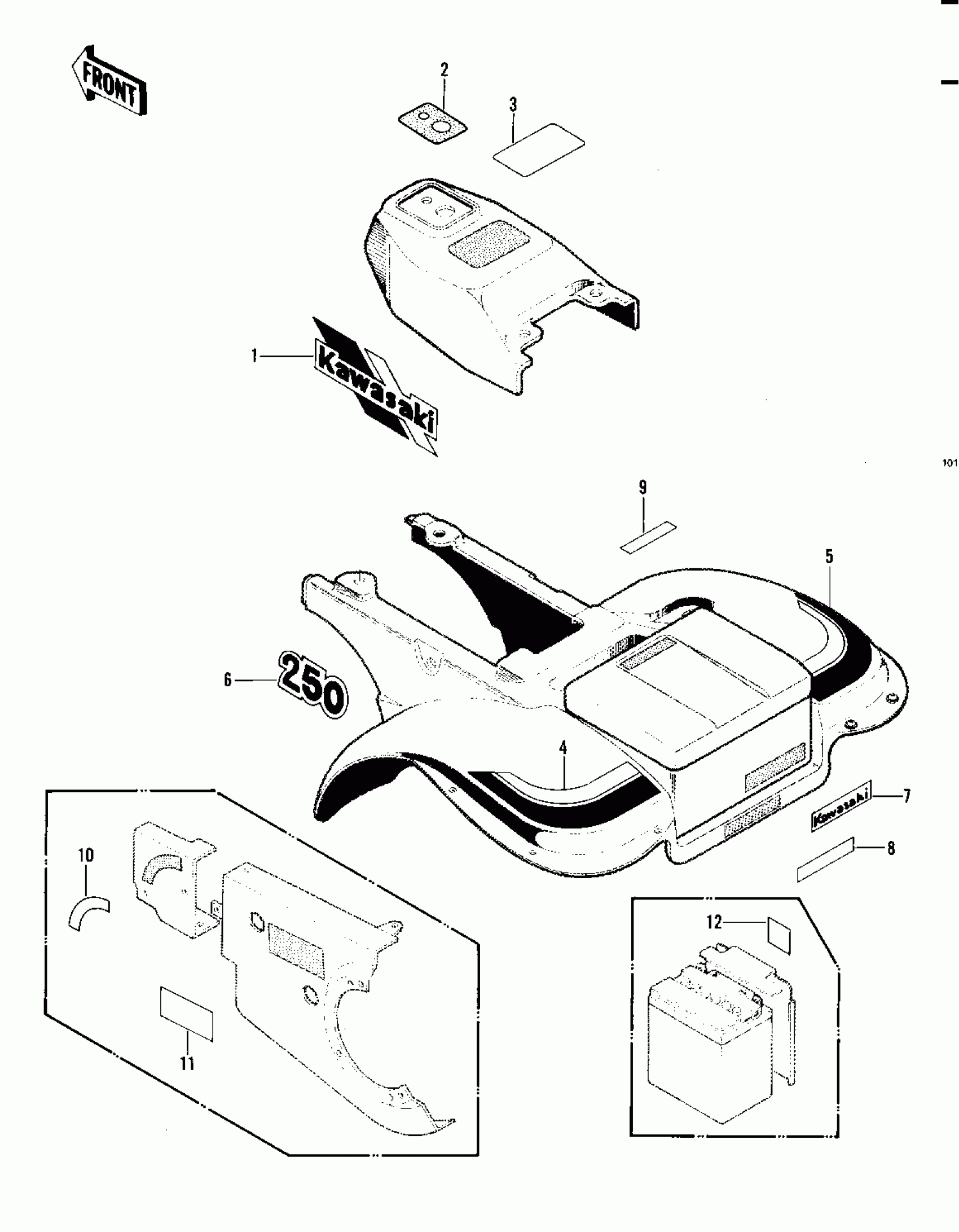

1982 Kawasaki KLT250 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EMBLEM-"KAWASAKI"-LH

56014-4013

1
Out of stock

1

EMBLEM-"KAWASAKI"-RH

56014-4014

1
Out of stock

2

LABEL-IGNITION PLATE

56030-4003

1
Out of stock

3

LABEL-WARNING,INFO

56040-4006

1
Out of stock

4

PATTERN-FNDR-REAR,LH

56027-4059

1
Out of stock

5

PATTERN-FNDR-REAR,RH

56027-4060

1
Out of stock

6

MARK-"250"

56018-4002

1
Out of stock

7

EMBLEM KAWASAKI TRUNK

56014-4017

1
Out of stock

8

LABEL-DO NOT CARRY

56040-4009

1
Out of stock

9

LABEL-NO PASSENGER

56040-4008

1
Out of stock

10

LABEL-SHIFT PATTERN

56031-4008

1
Out of stock

11

LABEL-CHAIN TENSION

56031-4007

1
Out of stock

12

LABEL-BATTERY VENT

56031-4009

1
Out of stock
