1982 Kawasaki KLT250 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

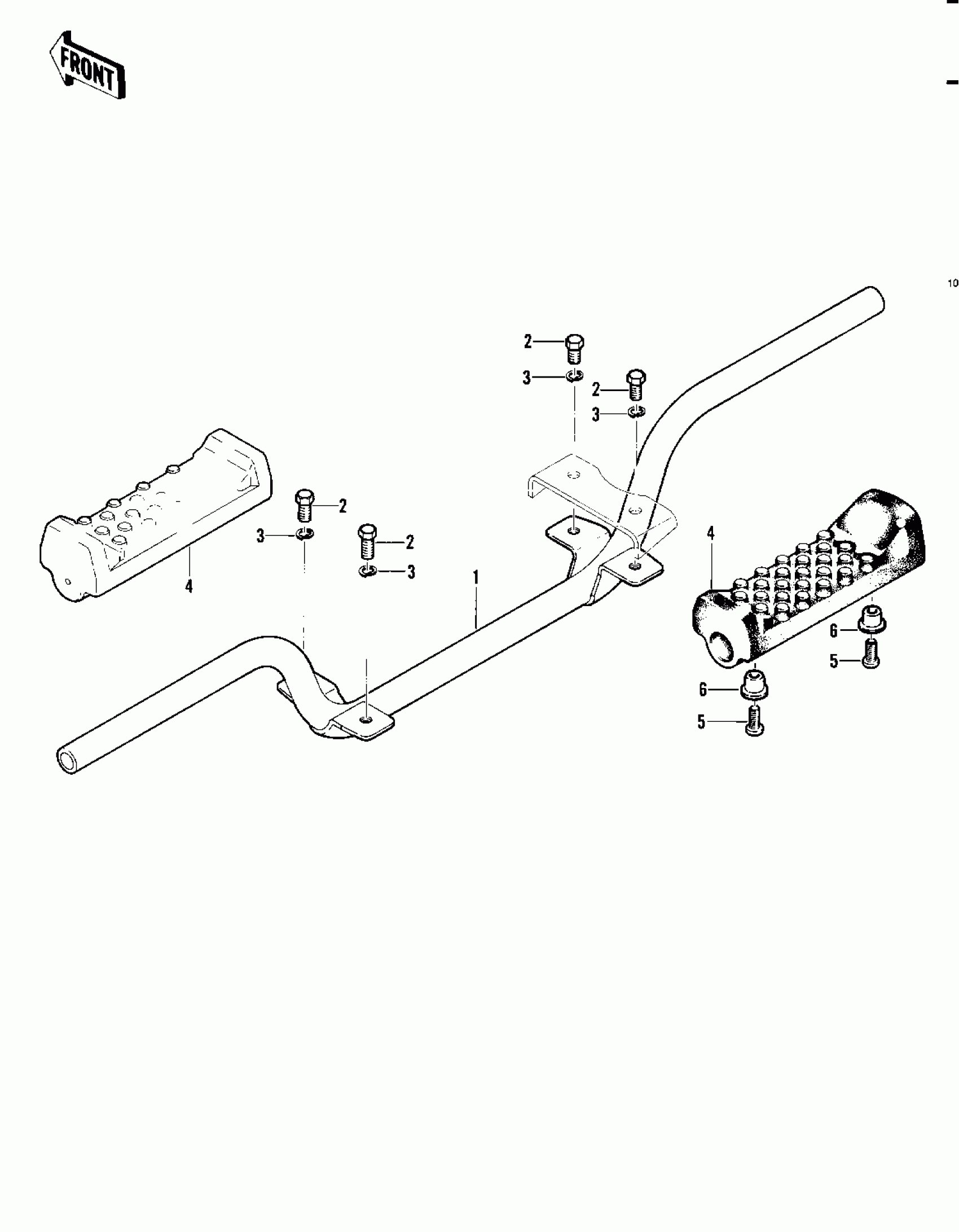

1982 Kawasaki KLT250 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER-STEP

34003-4006

1
Out of stock

2

BOLT-SMALL-UPSET,8X18

115G0818

1
Out of stock

3

WASHER SPRING 8MM

461F0800

1
Out of stock

4

STEP

34028-4005

1
Out of stock

5

SCREW

92009-4004

1
Out of stock

6

COLLAR

92027-4020

1
Out of stock
