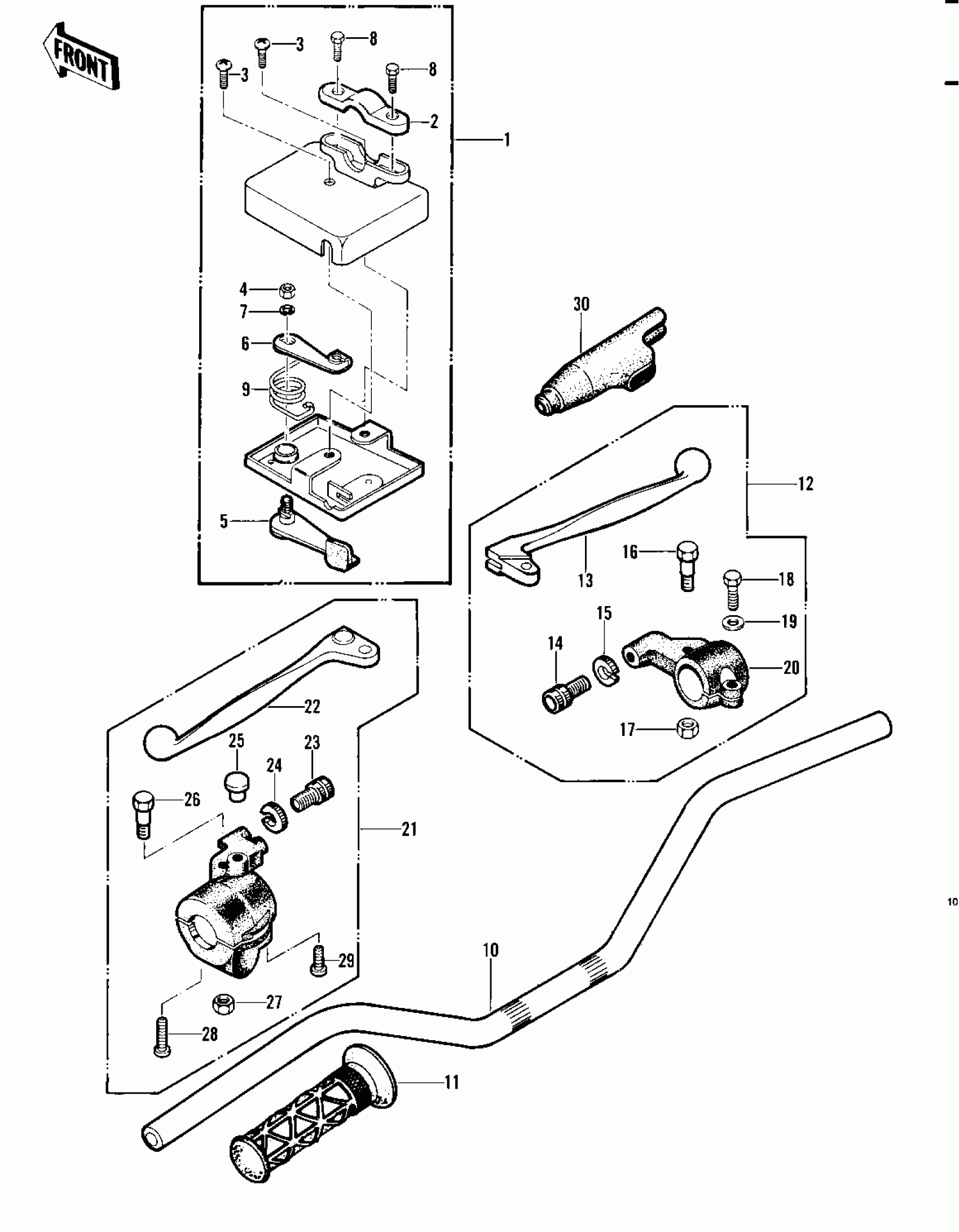

Kawasaki KLT250 HANDLEBAR ('82 A1) Diagram
#
Description
Price
1
LEVER-ASSY-THROTTLE
39074-4001
$89.19
2
HOLDER,THROTTLE LEVER
13091-4002
Unavailable
3
SCREW PAN HEAD 6X10
220B0610
$3.14
4
NUT 6MM
311B0600
$0.93
5
LEVER THROTTLE OUTER
39075-4001
$24.16
6
LEVER THROTTLE INNER
39075-4002
$6.23
7
WASHER SPRING 6MM
461F0600
$0.69
8
BOLT HEX HEAD
92001-4011
$2.32
9
SPRING RETURN
92081-4007
$5.26
10
HANDLEBAR
46003-4004
$85.51
11
GRIP,RH
46075-4001
Unavailable
12
LEVER ASSY,FRNT BRAKE
46021-025
Unavailable
13
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
14
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
15
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
16
BOLT,5X22
92007-046
$7.62
17
NUT,LOCK,5MM
92019-014
$4.50
18
BOLT HEX HEAD 6X25
110N0625
$5.46
19
WASHER,PLAIN,6MM
410D0600
$0.77
20
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-011-21
Unavailable
21
HOUSING-ASSY-CONTROL
46091-4001
$243.44
22
LEVER,CLUTCH
46092-024
Unavailable
23
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
24
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
25
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
26
BOLT,5X22
92007-046
$7.62
27
NUT,LOCK,5MM
92019-014
$4.50
28
SCREW,PAN HEAD,5X38
92009-1018
Unavailable
29
SCREW-PAN-CROS,5X25
220B0525
$3.67
30
BOOT,LEVER HOLDER
49006-1017
$18.72
