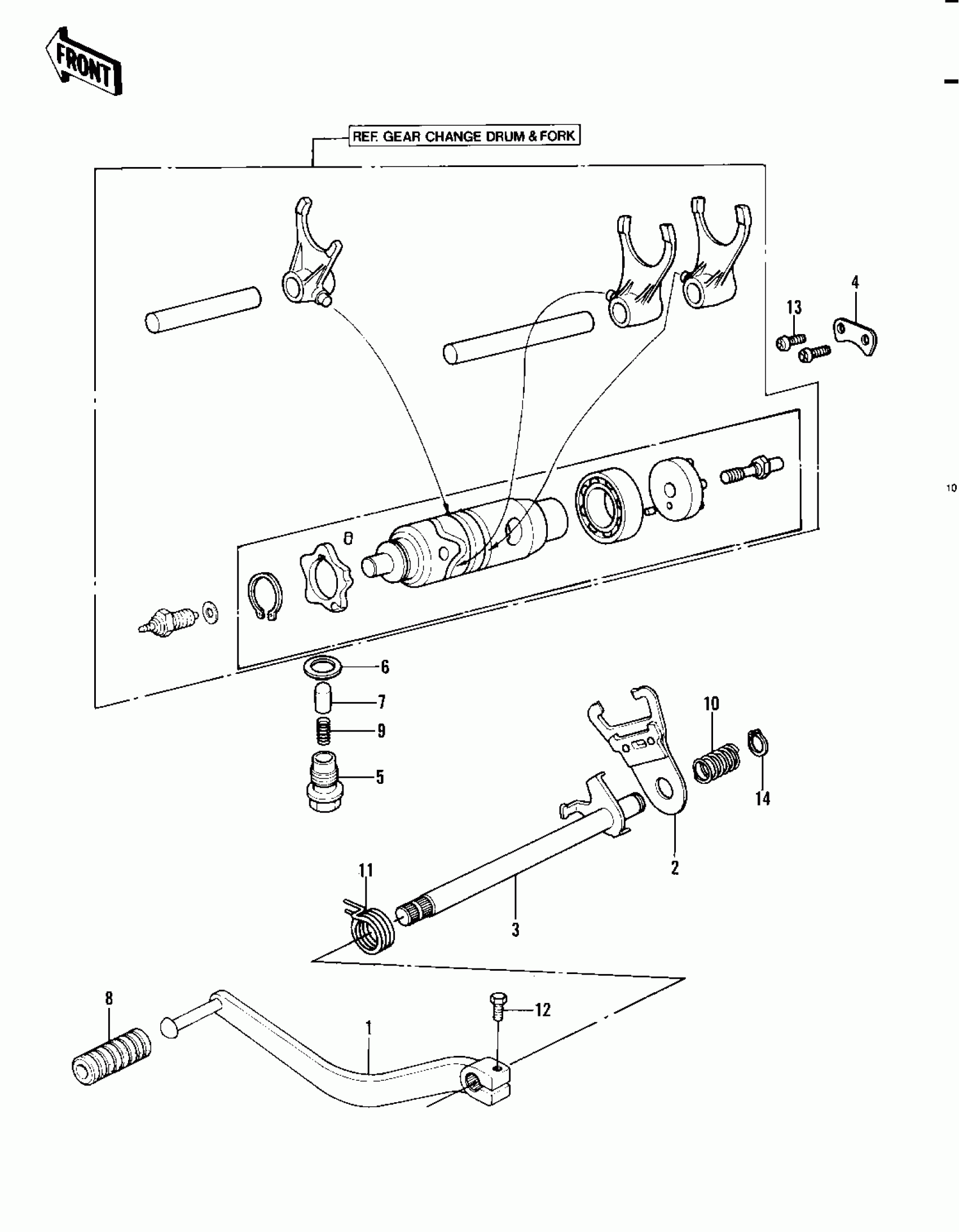

Kawasaki KLT250 GEAR CHANGE MECHANISM ('82 A1) Diagram

#

Description

Price

1

LEVER,GEAR SHIFT

13156-1070

Unavailable

2

LEVER ASSY,GEAR SHIFT

13161-044

Unavailable

3

LEVER ASSY,GEAR SHIFT

13161-1013

Unavailable

4

PLATE,GEAR CHANGE DRUM

13169-014

$5.23

5

BOLT,NEUTRAL POSITION

92001-182

$18.66

6

WASHER,16.5X23X2

92022-324

$5.23

7

PIN,NEUTRAL POSITIONG

92043-131

Unavailable

8

DAMPER,CHANGE PEDAL

92160-1108

$8.10

9

SPRING

92081-112

$6.16

10

SPRING,COIL

92081-149

Unavailable

11

SPRING,CHG PEDL RTRN

92083-028

Unavailable

12

BOLT-UPSET,6X20

112G0620

$2.12

13

SCREW-PAN-CROS,6X14

220B0614

$1.48

14

CIRCLIP-TYPE-C,13MM

480J1300

$3.92
