Description

Price

1

DRUM ASSY,FRONT

41038-4007

$66.00

2

BOLT,LUG

92001-4006

Unavailable

3

PIPE,SPACER

32032-4109

$9.69

4

"0" RING

92055-4001

$1.99

5

BEARING BALL HUB-ASSY

92045-4005

Unavailable

6

PANEL-ASSY-BRAKE,FR

41035-1165

$228.54

7

BOLT-UPSET

112G0630

$1.36

8

SHOE-BRAKE

41048-1085

$22.53

9

SPRING,BRAKE SHOE

92081-1766

$8.03

10

CAM-BRAKE

41050-018

$23.50

11

LEVER-BRAKE CAM

41053-005

$15.47

12

NUT,6MM

41072-007

$3.92

13

INDICATOR,BRAKE SHOE

41085-013

$14.51

14

RING-O,BRAKE CAM

92055-004

$4.80

15

CAP

14022-4002

Unavailable

16

WASHER PLAIN 16MM

410B1600

Unavailable

17

AXLE,FRONT

41068-4003

$75.32

18

NUT,LOCK 14M/M

92015-1122

$7.34

19

COLLAR

92027-4009

$3.63

20

GEAR-METER SCREW

41060-4001

$34.19

21

RECEIVER-SPEEDOMETER

41064-4001

Unavailable

22

SEAL-OIL,BRAKE PANEL

92050-002

$14.64

23

WASHER,5.1X9X0.4

41063-001

$4.69

24

PINION-SPEEDOMETER

41060-014

Unavailable

25

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

26

PIN,SPRING

41082-001

$3.92

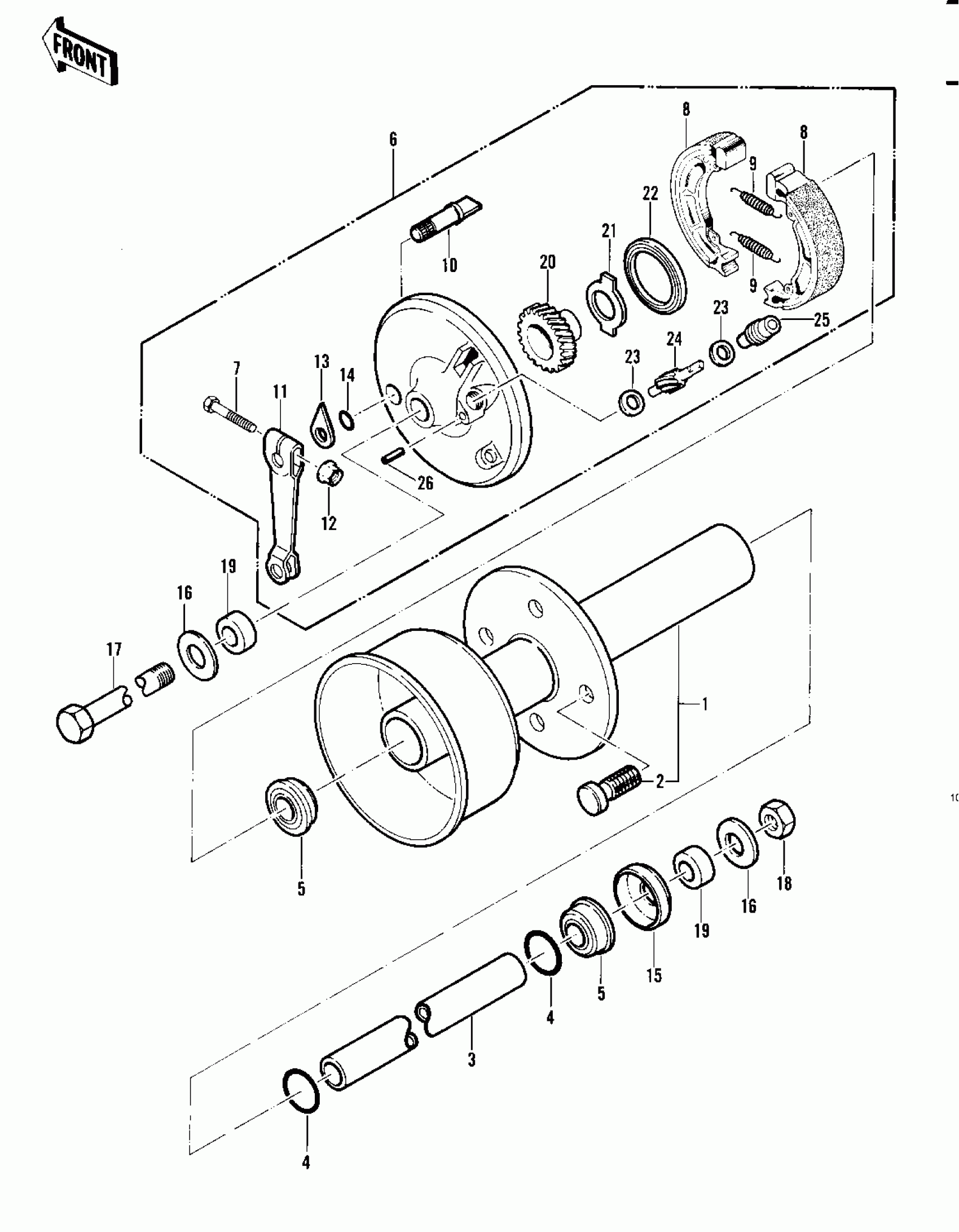

Kawasaki KLT250 FRONT HUB/BRAKE ('82 A1) Diagram

DRUM ASSY,FRONT

BOLT,LUG

PIPE,SPACER

"0" RING

BEARING BALL HUB-ASSY

PANEL-ASSY-BRAKE,FR

BOLT-UPSET

SHOE-BRAKE

SPRING,BRAKE SHOE

CAM-BRAKE

LEVER-BRAKE CAM

NUT,6MM

INDICATOR,BRAKE SHOE

RING-O,BRAKE CAM

CAP

WASHER PLAIN 16MM

AXLE,FRONT

NUT,LOCK 14M/M

COLLAR

GEAR-METER SCREW

RECEIVER-SPEEDOMETER

SEAL-OIL,BRAKE PANEL

WASHER,5.1X9X0.4

PINION-SPEEDOMETER

BUSHING,SPEEDOMETER CABLE

PIN,SPRING
