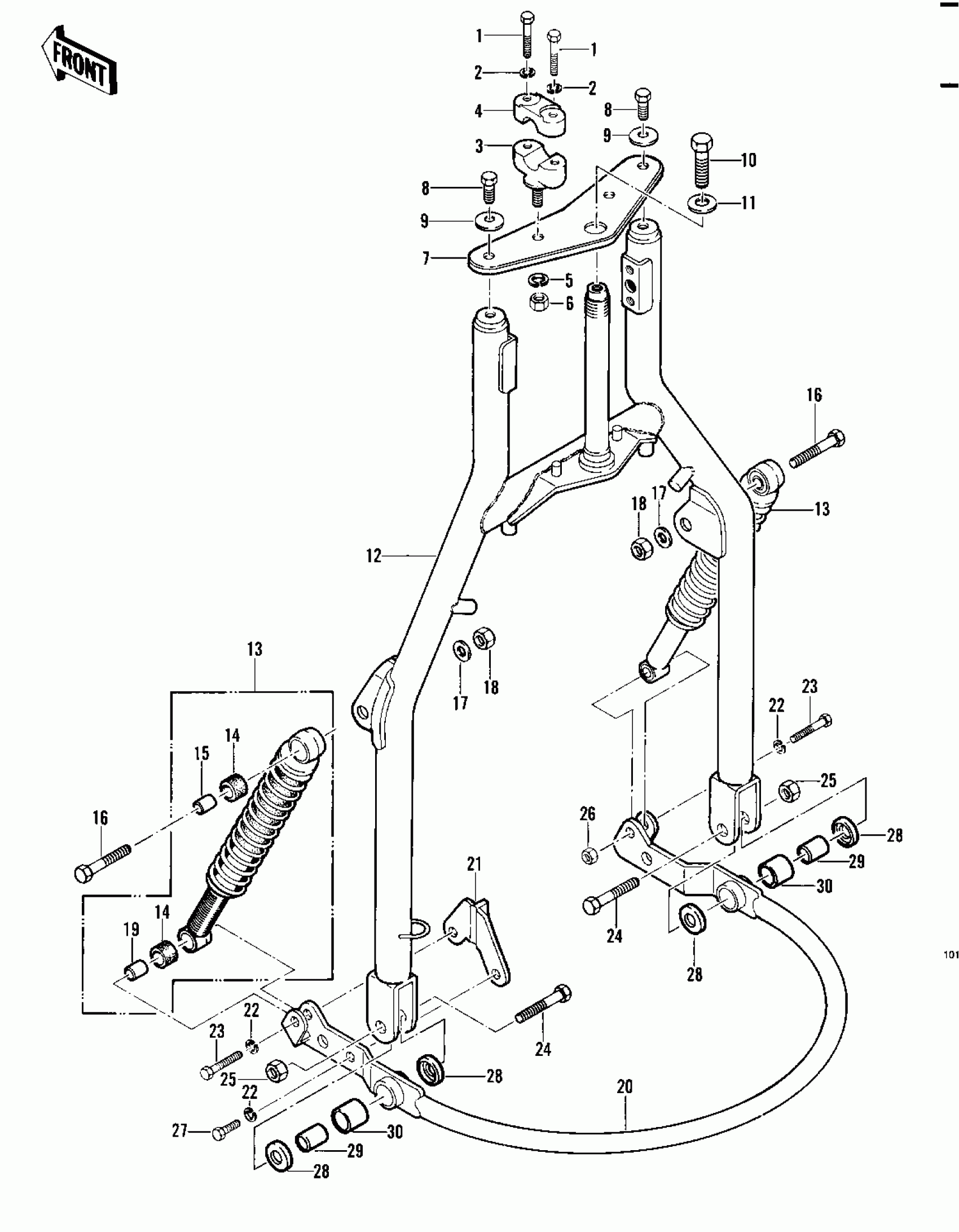

Kawasaki KLT250 FRONT FORK ('82 A1) Diagram
#
Description
Price
1
BOLT HEX HEAD
114N0835
$0.60
2
WASHER SPRING 8MM
461F0800
$0.40
3
HOLDER,HANDLEBAR,BUFF
46012-002-80
$29.86
4
HOLDER-HANDLE,UPP
46012-004
Unavailable
5
WASHER SPRING 10MM
461F1000
$0.67
6
NUT-HEX-FINE,10MM
314B1000
$0.67
7
HOLDER-FORK UPPER
44039-4003
Unavailable
8
BOLT
92001-1742
$19.67
9
WASHER
92022-1381
$9.44
10
BOLT,STEERING STEM
44041-072
Unavailable
11
WASHER,STEERING STEM
44043-056
Unavailable
12
FRONT FORK,L.GREEN
44001-4007-7F
$220.57
12
FRONT FORK,EBONY
44001-4007-8G
$222.48
13
SHOCKABSORBER,L.GREEN
45014-4010-7F
$122.61
13
SHOCKABSORBER,EBONY
45014-4010-8G
$122.39
14
DAMPER,SHOCKABSORBER
92075-4030
$14.90
15
COLLAR
92027-4023
$3.15
16
BOLT,12X45
92001-4018
$6.41
17
WASHER,PLAIN,12 X 22
92022-1057
Unavailable
18
NUT-LOCK,12MM
92019-009
$7.29
19
COLLAR,SHOCKABSORBER
92027-4024
$3.61
20
ARM-SUSP
39007-4003
$85.94
21
STOPPER
32085-4006
$18.47
22
WASHER SPRING 10MM
461F1000
$0.67
23
BOLT,HEX HEAD 10X40
92001-1253
Unavailable
24
BOLT HEX HEAD 14X55
113B1455
$6.88
25
NUT-LOCK,14MM
92019-011
Unavailable
26
NUT,LOCK,10MM
92019-021
$6.11
27
BOLT-UPSET,10X20
112B1020
Unavailable
28
CAP
11012-4004
Unavailable
29
SLEEVE,14X20X25.3
42036-4003
$20.88
30
BUSHING,SWING ARM
92028-4001
Unavailable
