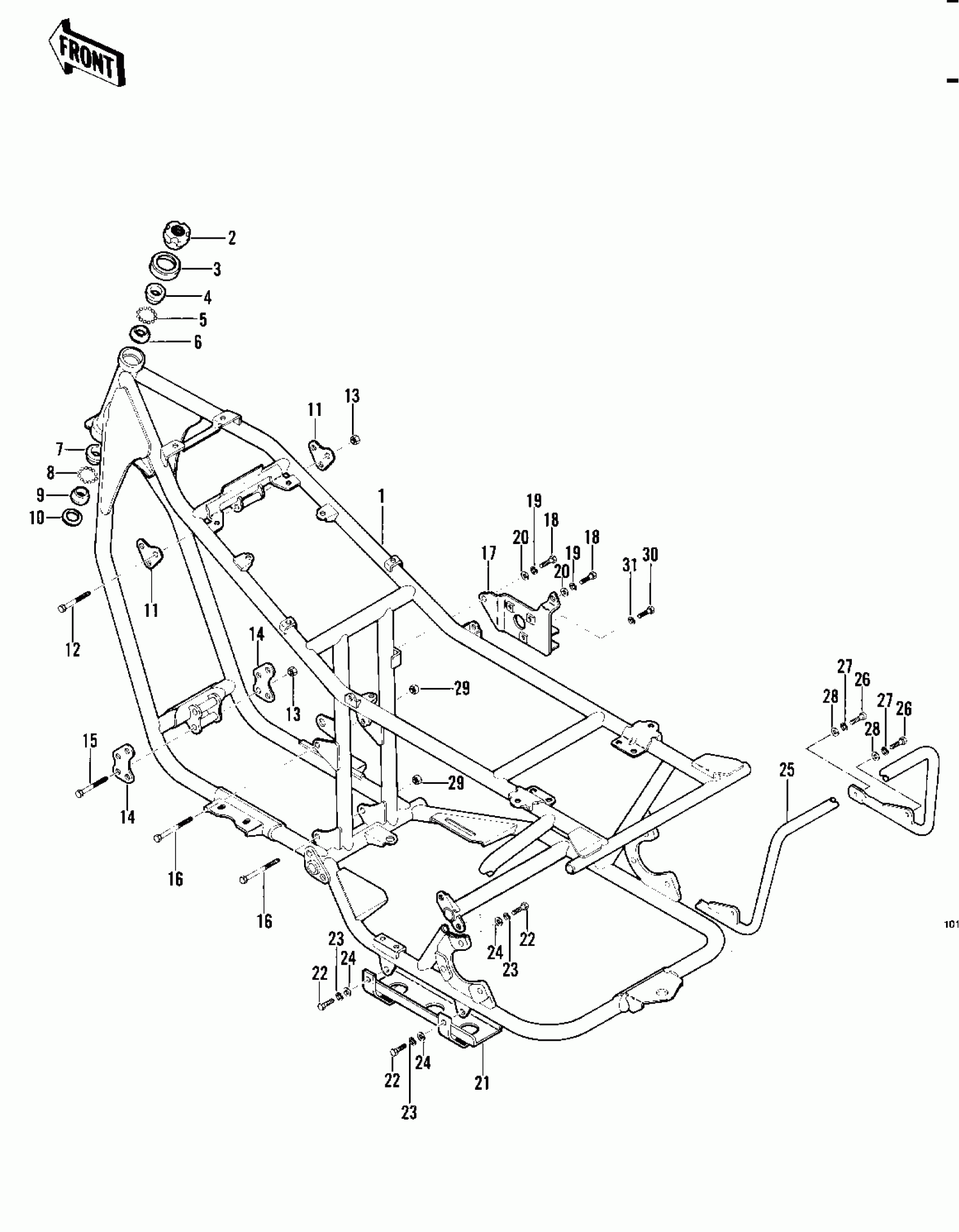

Kawasaki KLT250 FRAME/FRAME FITTINGS ('82 A1) Diagram

#

Description
Price

1

FRAME-COMP

32002-4009

Unavailable

2

NUT,STEERING STEM

92015-4007

Unavailable

3

CAP,STEERING STEM

46098-012

Unavailable

4

RACE,STEERING STEM BEARING

92047-014

$12.72

5

BALL-STEEL,3/16

600A0600

$1.07

6

RACE,STEERING STEM BEARING

92048-009

$14.10

7

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

8

BALL-STEEL,1/4

600A0800

$0.62

9

RACE,STEERING STEM BEARING

92047-010

$10.51

10

SEAL,STEERING STEM

44010-027

Unavailable

11

BRACKET-ENGINE

32029-4023

$14.35

12

BOLT,8X63

92001-1397

$5.43

13

NUT,LOCK,8MM

92015-1124

$5.42

14

BRACKET-ENGINE

32029-4022

$9.99

15

BOLT-FLANGE

92001-1582

Unavailable

16

BOLT,FLANGED,10X110

92001-1602

$11.07

17

BRACKET

11034-4100

Unavailable

18

BOLT-UPSET,6X12

112G0612

$1.45

19

WASHER SPRING 6MM

461F0600

$0.69

20

WASHER PLAIN 6MM

411B0600

$2.84

21

GUARD

55020-4016

$22.58

22

BOLT,8X20

115G0820

$5.14

23

WASHER SPRING 8MM

461F0800

$0.40

24

WASHER PLAIN 8MM

410B0800

$0.93

25

GUARD,REAR

55020-4015

Unavailable

26

BOLT,8X20

115G0820

$5.14

27

WASHER SPRING 8MM

461F0800

$0.40

28

WASHER PLAIN 8MM

410B0800

$0.93

29

NUT,LOCK,10MM

92019-021

$6.11

30

BOLT-UPSET,6X16

112G0616

$1.10

31

WASHER SPRING 8MM

461F0800

$0.40
