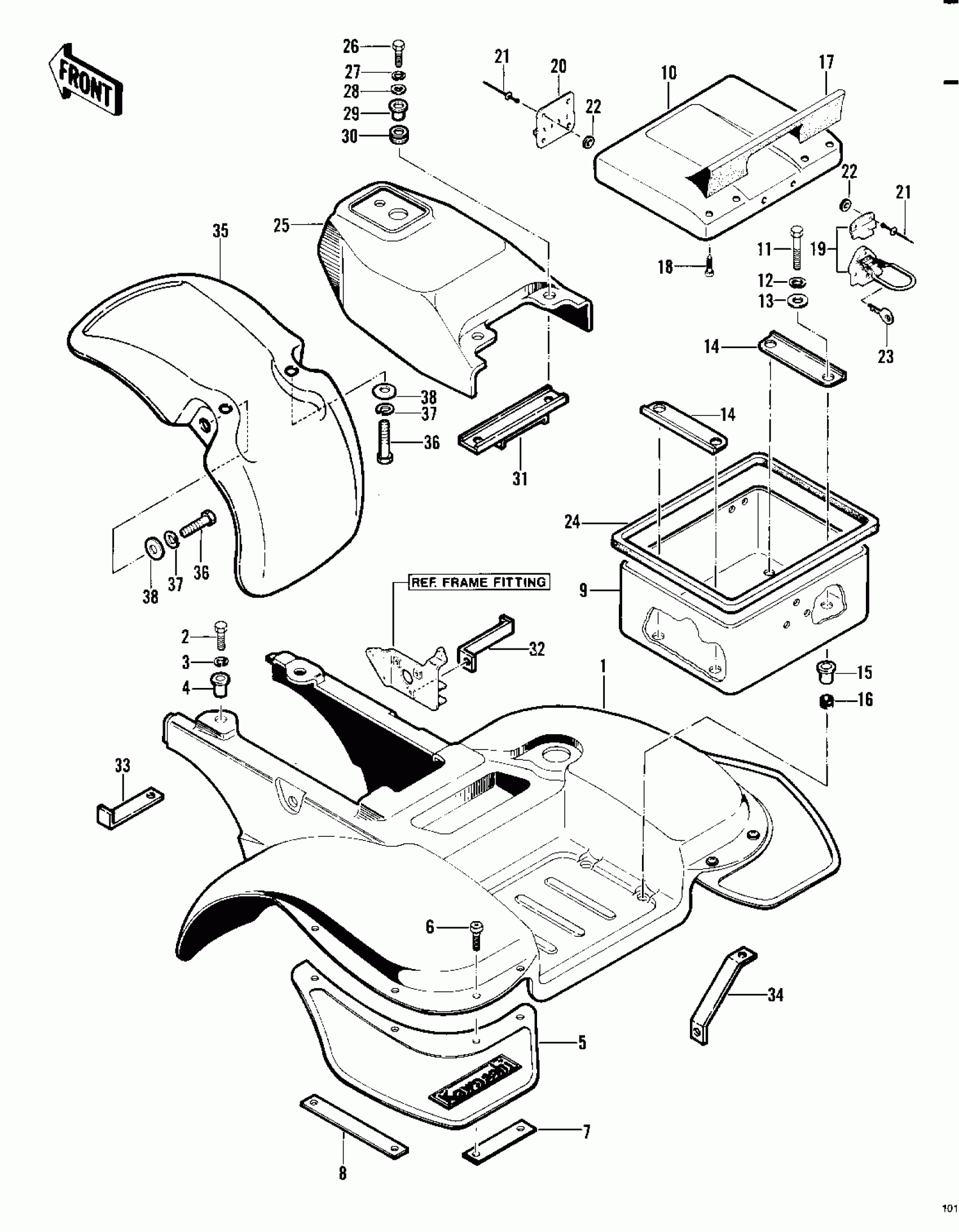

Kawasaki KLT250 FENDERS/COVER/TRUNK ('82 A1) Diagram
#
1
FENDER-RR,L.GREEN
35022-4003-6W
Unavailable
1
FENDER-RR,BLACK
35022-4003-6D
Unavailable
2
BOLT-UPSET 6X14
112B0614
Unavailable
3
WASHER SPRING 6MM
461F0600
$0.69
4
COLLAR
92027-4020
$4.65
5
FLAP
35019-4004
Unavailable
6
SCREW,6X20
92009-1289
$4.31
7
BRACKET,FLAP
11034-4062
Unavailable
8
BRACKET,FLAP
11034-4063
Unavailable
9
CASE, TRUNK
32099-4006
$18.70
10
COVER,TRUNK,LM GREEN
14025-4016-6W
Unavailable
10
COVER,TRUNK,BLACK
14025-4016-6D
Unavailable
11
BOLT,8X40
115G0840
$6.00
12
WASHER SPRING 8MM
461F0800
$0.40
13
WASHER PLAIN 8MM
410B0800
$0.93
14
PLATE
13169-4017
Unavailable
15
COLLAR,FUEL TANK FITT
92027-1134
$10.28
16
DAMPER RUBB TANK FRNT
92075-013
$5.47
17
GRIP
46075-4002
$4.21
18
SCREW-.125X.50
92009-4010
$0.36
19
LATCH
49031-4002
$14.49
20
HINGE
53009-4001
$8.71
21
RIVET
92039-004
$0.70
22
WASHER
92022-4017
$0.82
23
KEY
27008-4001
$7.70
24
SEAL-TRUNK
92093-4003
$3.95
25
COVER,FR,LM GREEN
14025-4015-6W
Unavailable
25
COVER,FR,BLACK
14025-4015-6D
Unavailable
26
BOLT-UPSET
112G0625
$3.62
27
WASHER SPRING 8MM
461F0800
$0.40
28
WASHER PLAIN 8MM
411B0800
$0.93
29
COLLAR
92027-194
$5.52
30
DAMPER RUBBER
92075-112
$4.31
31
BRACKET-SEAT
32046-4012
$15.47
32
BRACE-FNDR,RH FT
35009-4002
$3.69
33
BRACE-FNDR,LH FT
35009-4001
$3.69
34
BRACE-FNDR,REAR
35009-4003
$3.62
35
FENDER-FR,LIME GREEN
35004-4003-6W
Unavailable
35
FENDER-FR,BLACK
35004-4003-6D
Unavailable
36
BOLT-UPSET 6X14
112B0614
Unavailable
37
WASHER SPRING 6MM
461F0600
$0.69
38
WASHER,6.5X20X1.6
92022-125
$1.40
