Description

Price

1

GASKET,ENGINE COV,RH

11009-1235

Unavailable

2

GASKET,L.H ENGINE COV

14045-031

$30.41

3

COVER,FILTER,F.BLACK

14025-1102

Unavailable

4

COVER,DYNAMO

14025-1239

Unavailable

5

COVER-CHAIN,BLACK

14026-1052

Unavailable

6

COVER-GENERATOR,F.BLA

14031-1085

Unavailable

7

COVER-CLUTCH,F.BLACK

14032-1066

Unavailable

8

CAP-OIL FILLER

16115-013

$19.96

9

GAUGE,OIL LEVEL

52005-1009

$18.40

10

SCREW OVL CNTSK 6X25

222E0625

Unavailable

11

WASHER,6.2X11X1

92022-304

$3.65

12

PIN,DOWEL,6.3X8X14

92042-007

$5.70

13

RING-O,31.5X2.6

92055-049

$4.31

14

RING-O

92055-098

$9.57

15

"0" RING,FILTER COVER

92055-1048

$14.50

16

"O" RING,DYNAMO COVER

92055-108

$14.93

17

RING-O,5.28X1.78

92055-109

$4.39

18

BOLT HEX HEAD 6X8

110B0608

$0.18

19

SCREW PAN HEAD 6X10

220B0610

$3.14

20

SCREW PAN HEAD 6X25

220B0625

$2.60

21

SCREW PAN HEAD 6X30

220B0630

$3.41

22

SCREW PAN HEAD 6X40

220B0640

Unavailable

23

SCREW-PAN-CROS,6X60

220B0660

$1.79

24

WASHER SPRING 6MM

461F0600

$0.69

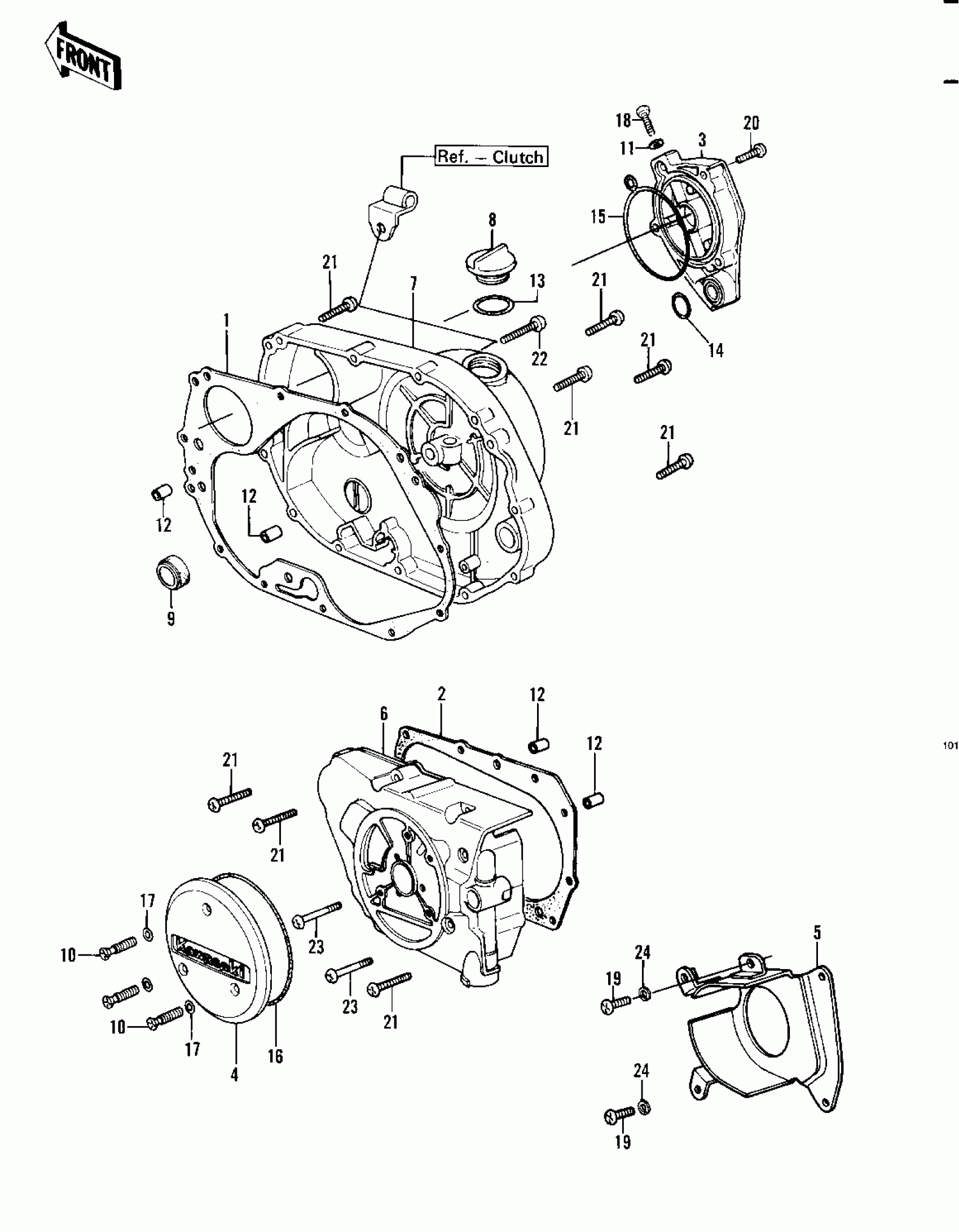

Kawasaki KLT250 ENGINE COVERS ('82 A1) Diagram

GASKET,ENGINE COV,RH

GASKET,L.H ENGINE COV

COVER,FILTER,F.BLACK

COVER,DYNAMO

COVER-CHAIN,BLACK

COVER-GENERATOR,F.BLA

COVER-CLUTCH,F.BLACK

CAP-OIL FILLER

GAUGE,OIL LEVEL

SCREW OVL CNTSK 6X25

WASHER,6.2X11X1

PIN,DOWEL,6.3X8X14

RING-O,31.5X2.6

RING-O

"0" RING,FILTER COVER

"O" RING,DYNAMO COVER

RING-O,5.28X1.78

BOLT HEX HEAD 6X8

SCREW PAN HEAD 6X10

SCREW PAN HEAD 6X25

SCREW PAN HEAD 6X30

SCREW PAN HEAD 6X40

SCREW-PAN-CROS,6X60

WASHER SPRING 6MM
