1982 Kawasaki KLT250 Cylinder/piston Diagram

← All diagrams

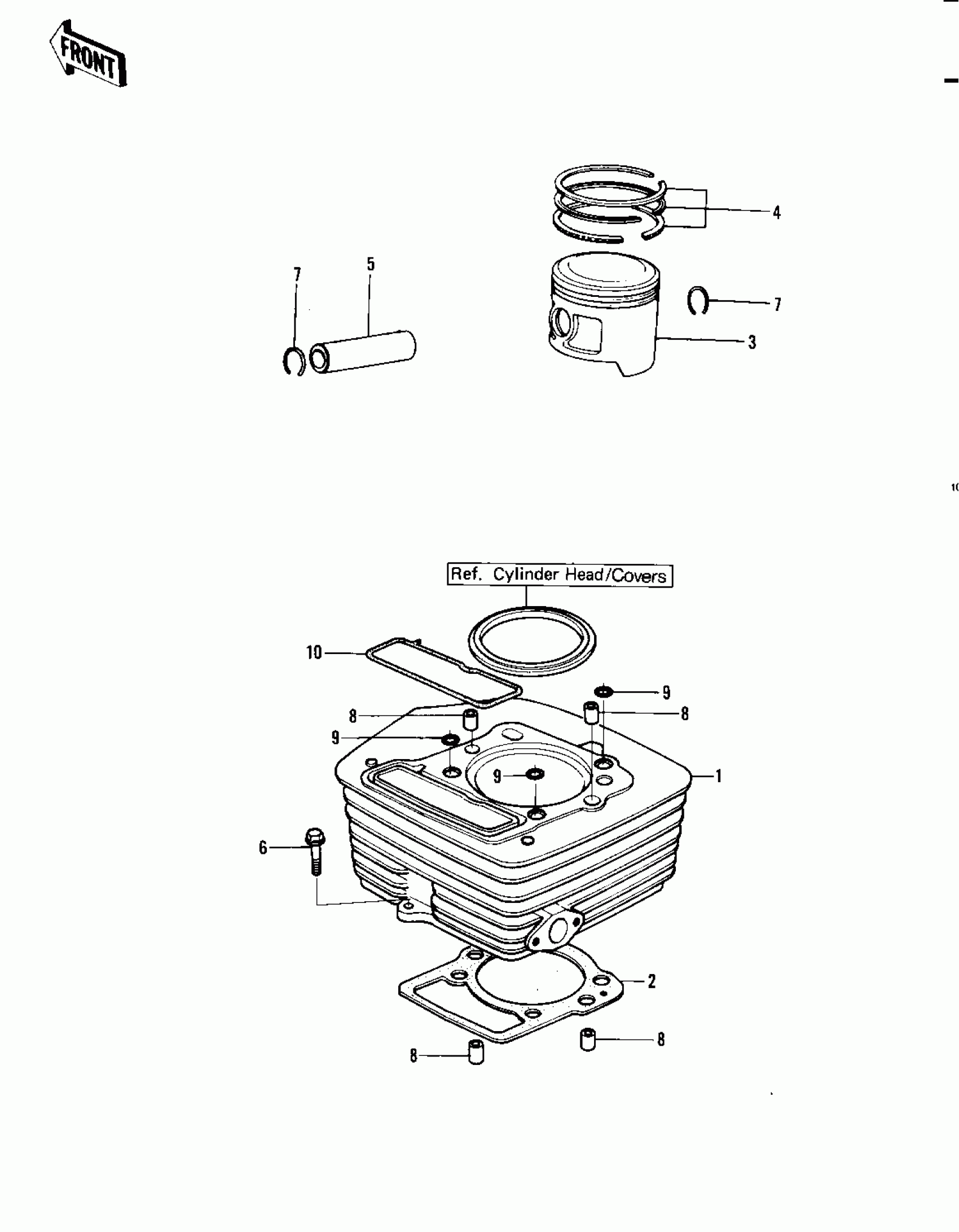

Find the part on the Cylinder/piston diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Kawasaki KLT250 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,F.BLACK

11006-1002

1
Out of stock

2

GASKET,CYLINDER BASE

11009-043

1
Out of stock

3

PISTON,S.T.D

13001-1037

1
Out of stock

3

PISTON,0.020 O/S

13029-1003

—
Out of stock

3

PISTON,0.040 O/S

13027-1005

—
Out of stock

4

RING SET,STD

13008-5012

1
Out of stock

4

RING SET,0.020"O/S

13025-5007

—
Out of stock

4

RING SET,0.040"O/S

13024-5008

—
Out of stock

5

PIN-PISTON

13002-1013

1
Out of stock

6

BOLT,FLANGED,6X28

92003-202

1
Out of stock

7

CIRCLIP,PISTON PIN

92036-021

1
Out of stock

8

PIN,DOWEL,10X14

92043-1037

1
Out of stock

9

RING-O,10MM

92055-1149

1
Out of stock

10

"0" RING

92055-105

1
Out of stock
