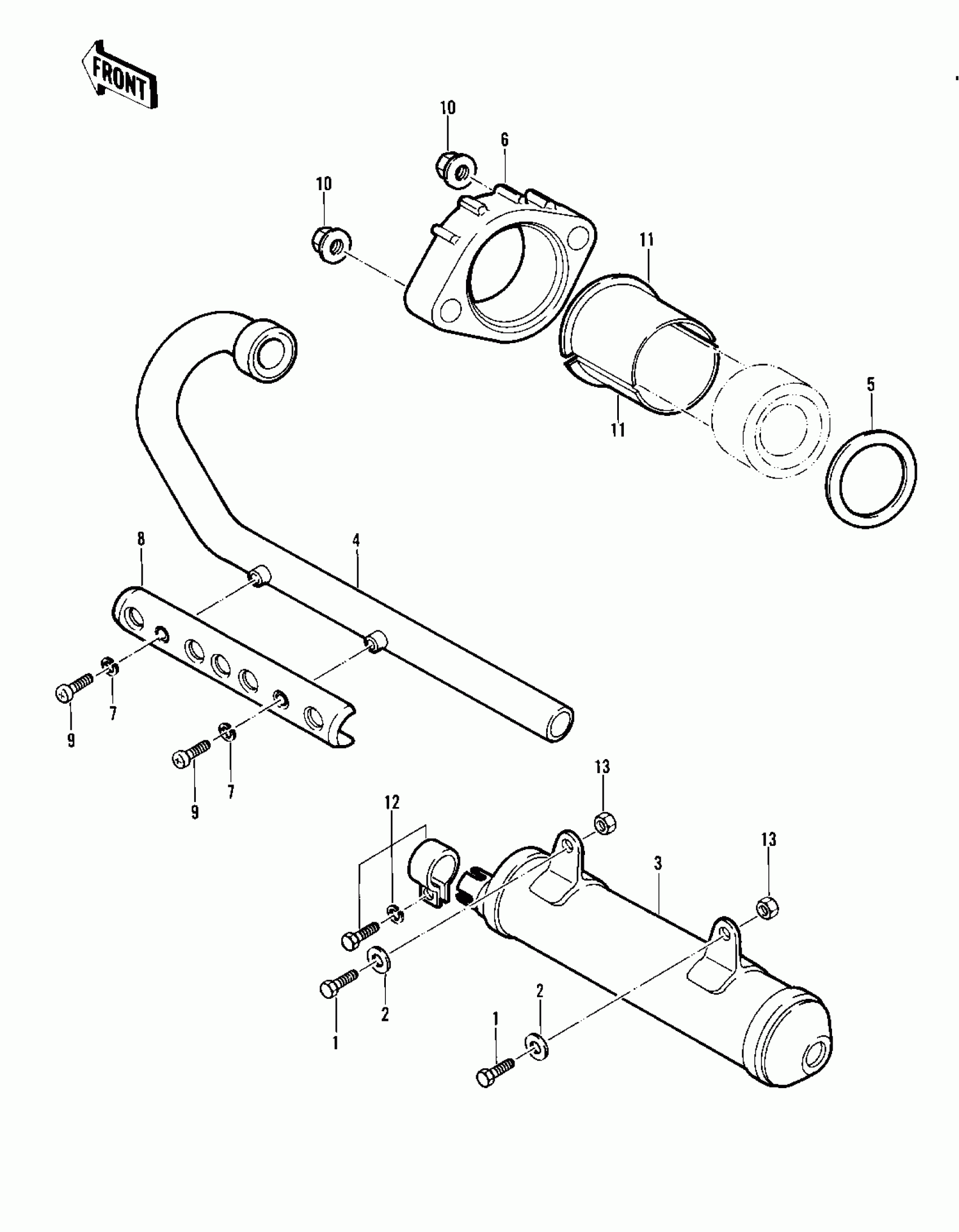

Kawasaki KLT250 MUFFLER ('82 A1) Diagram

#

Description
Price

1

BOLT,8X20

115G0820

Unavailable

2

WASHER PLAIN 8MM

410B0800

Unavailable

3

MUFFLER

18001-1452

$416.61

4

PIPE-EXHAUST

18049-1153

$82.57

5

GASKET,EXHAUST PIPE H

11009-1866

$6.29

6

HOLDER-EXHAUST PIPE

18069-1014

$14.19

7

WASHER SPRING 6MM

461F0600

Unavailable

8

COVER-EXHAUST PIPE,BL

49107-1004

$14.75

9

SCREW,6X6.7

92009-1054

$2.56

10

NUT,8MM

92015-1143

$0.57

11

COLLAR,EXHAUST PIPE

92027-264

$3.60

12

CLAMP,MUFFLER CONNECT

92037-1115

Unavailable

13

NUT,LOCK,8MM

92015-1124

$4.10
