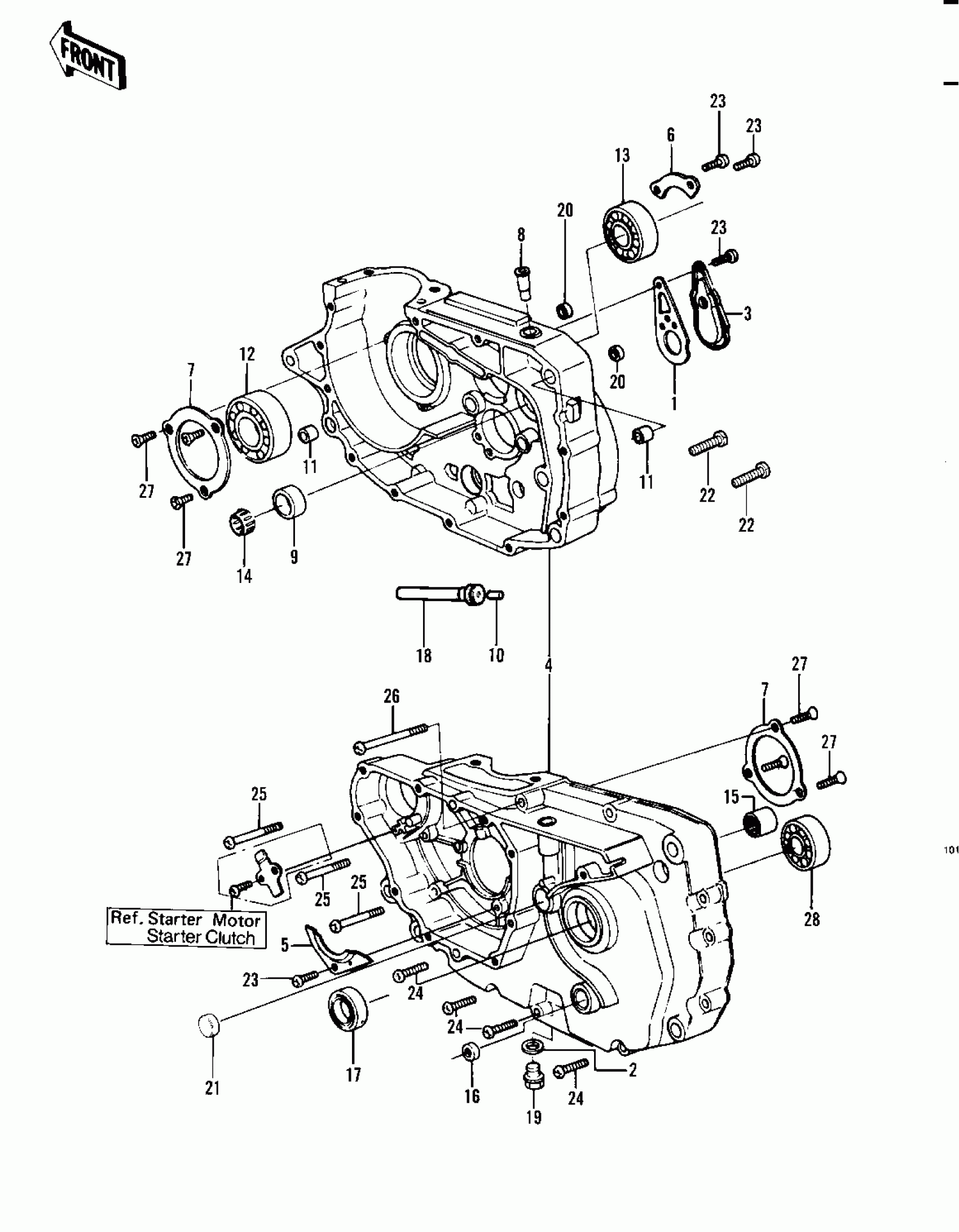

Kawasaki KLT250 CRANKCASE ('82 A1) Diagram
#
Description
Price
1
GASKET
16079-002
Unavailable
2
GASKET,12X22X2
92065-097
$0.74
3
CAP
16078-002
$7.59
4
SET-CHANKCASE
14001-5107
Unavailable
5
PLATE,POSITIONING
14014-035
$5.24
6
PLATE-POSITION
14014-037
$4.60
7
PLATE-POSITION,CRANK BEARING
14014-1004
$11.61
8
FITTING,BREATHER
14067-006
$21.09
9
BUSHING,23X30X13
92028-132
$38.06
10
PIN,DOWEL,6.3X8X14
92042-007
$5.70
11
PIN,DOWEL,14X14
92042-032
Unavailable
12
BEARING-BALL,#6306
92045-037
$42.66
13
BEARING,BALL#6006
92045-038
Unavailable
14
BEARING-NEEDLE
92046-1184
$21.25
15
BRG,NEEDLE,HMK1515B
92046-060
$18.53
16
SEAL-OIL
92050-082
$8.58
1
SEAL-OIL,TC32457
92049-1159
$8.60
18
TUBE CRANKCASE
92059-1189
$8.18
19
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
20
PLUG
92066-1282
$6.51
21
PLUG
92066-1116
$9.50
22
SCREW-PAN-CROS,6X8
220B0608
$0.59
23
SCREW-PAN-CROS,6X14
220B0614
$1.48
24
SCREW PAN HEAD 6X30
220B0630
$3.41
25
SCREW PAN HEAD 6X55
220B0655
$4.12
26
SCREW-PAN-CROS,6X75
220B0675
$4.66
27
SCREW-CSK-CROS,6X16
221B0616
$0.59
28
BEARING-BALL,#6205C3
601B6205
$19.57
