Description

Price

1

BRACKET,CLUTCH CABLE

11045-1081

Unavailable

2

CLUTCH-ASSY

13081-1071

Unavailable

3

HUB,CLUTCH

13087-1001

$108.45

4

PLATE,CLUTCH FRICTION

13088-1008

Unavailable

5

PLATE-CLUTCH,T=1.6

13089-013

$13.16

6

HOUSING-COMP-CLUTCH

13095-1032

Unavailable

7

GEAR-PRIMARY,19T

13097-1039

Unavailable

8

RELEASE,CLUTCH

13102-1011

Unavailable

9

PLATE-CLUTCH OPERATING

13187-1008

Unavailable

10

ROD,CLUTCH PUSH

46102-1033

$28.64

11

BOLT,CLUTCH SPRING,6X18

92001-1576

Unavailable

12

BEARING-BALL,6001C3ML01

92045-1235

$16.25

13

UNAVAILABLE IN PRICE BOOK

92081-08

Unavailable

14

O RING,9MM

670B1509

$3.65

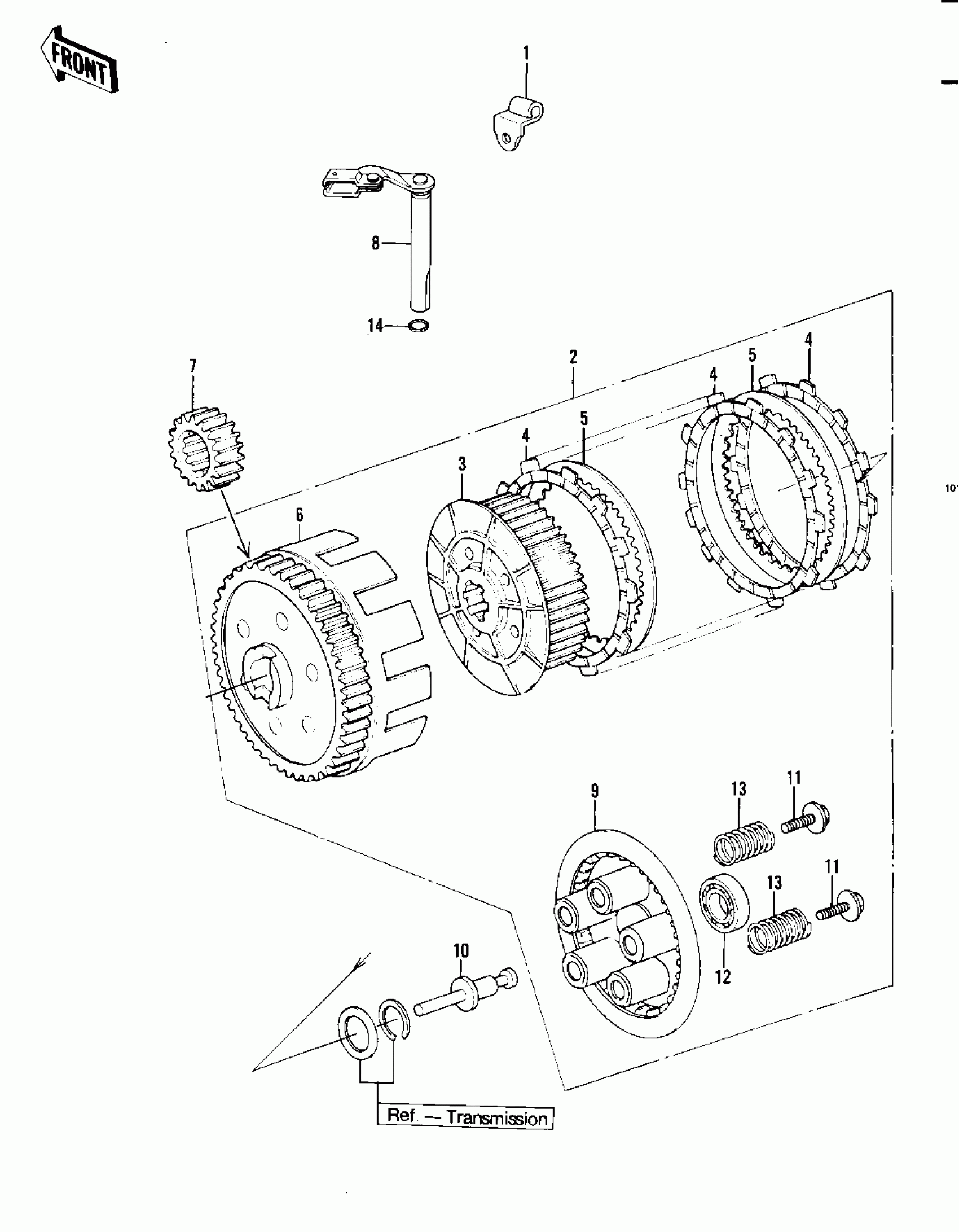

Kawasaki KLT250 CLUTCH ('82 A1) Diagram

BRACKET,CLUTCH CABLE

CLUTCH-ASSY

HUB,CLUTCH

PLATE,CLUTCH FRICTION

PLATE-CLUTCH,T=1.6

HOUSING-COMP-CLUTCH

GEAR-PRIMARY,19T

RELEASE,CLUTCH

PLATE-CLUTCH OPERATING

ROD,CLUTCH PUSH

BOLT,CLUTCH SPRING,6X18

BEARING-BALL,6001C3ML01

UNAVAILABLE IN PRICE BOOK

O RING,9MM
