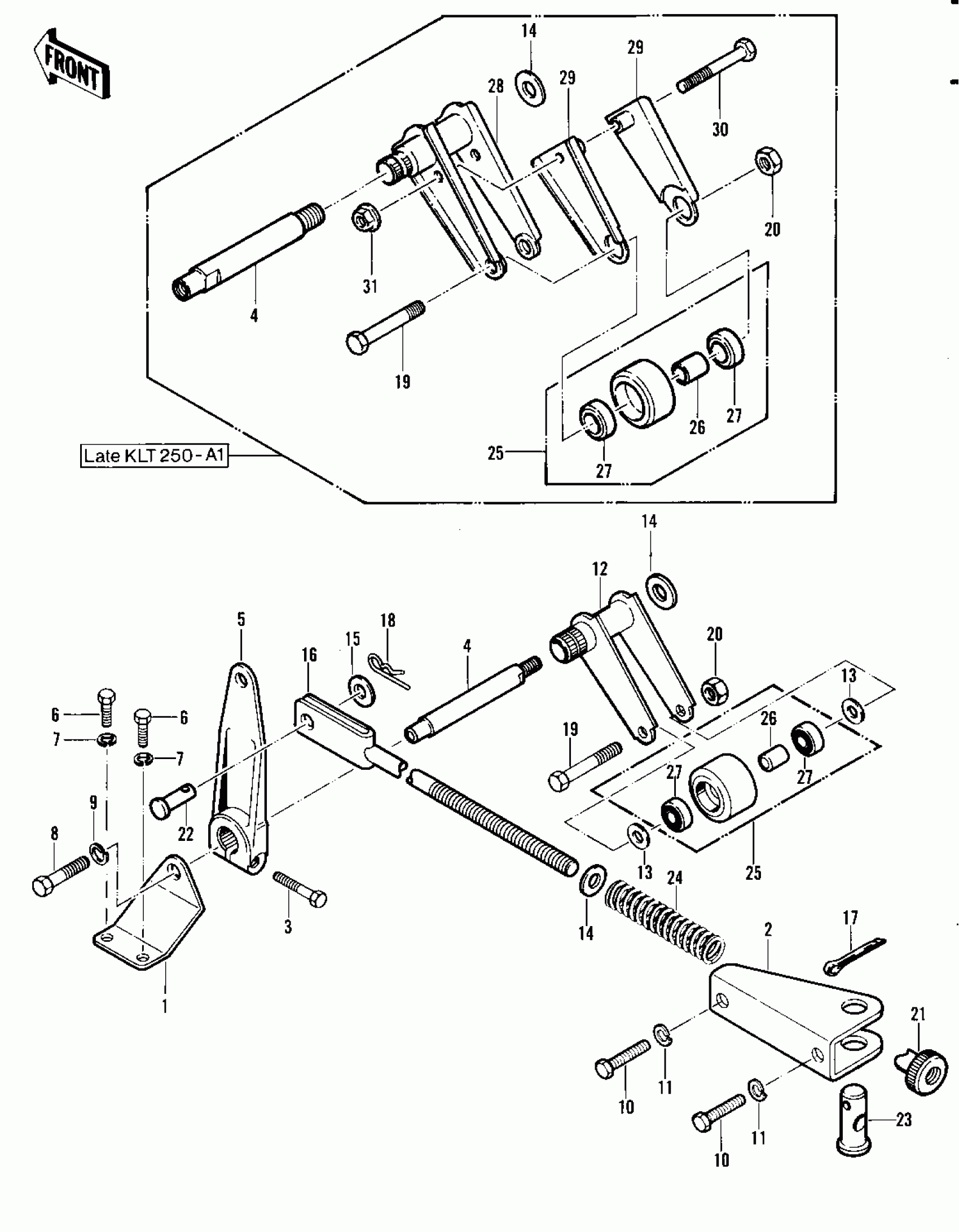

Kawasaki KLT250 CHAIN TENSIONER ('82 A1) Diagram
#
Description
Price
1
BRACKET,LEVER TENSION
11034-4060
Unavailable
2
BRACKET,CHAIN ADJUST
11034-4061
Unavailable
3
BOLT-SMALL-UPSET
115G0835
$4.54
4
SHAFT,L=90
13107-4008
Unavailable
5
LEVER-ARM-TENSIONER S
13168-5002
Unavailable
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
WASHER SPRING 6MM
461F0600
$0.69
8
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
9
WASHER SPRING 8MM
461F0800
$0.40
10
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
11
WASHER SPRING 8MM
461F0800
$0.40
12
LEVER-ARM-TENSIONER S
13168-5002
Unavailable
13
WASHER PLAIN 8MM
411B0800
$0.93
14
WASHER-PLAIN,10MM
411B1000
$0.93
15
WASHER PLAIN 12MM
411B1200
$0.93
16
ROD,CHAIN TENSIONER
46102-4001
$42.32
17
PIN,COTTER
550D3230
$2.33
18
PIN-SNAP,12MM
554A1200
$3.57
19
BOLT,HEX HEAD,8X45
92001-4008
Unavailable
20
NUT,LOCK,8MM
92015-1124
$5.42
21
NUT,BRAKE ROD ADJUSTG
92015-4008
$12.81
22
PIN,12X22
92043-4004
$7.55
23
PIN,18X33
92043-4005
$15.77
24
SPRING,14X20
92081-1287
$6.17
25
ROLLER,CHAIN ADJUST
92122-4004
$35.97
26
SPACER,CHN GDE ROLLER
92027-4007
$8.54
27
BEARING-BALL,608LLU/2A
92045-1009
$35.22
28
LEVER-ARM-TENSIONER S
13168-5002
Unavailable
29
GUIDE-CHAIN
12053-4002
Unavailable
30
BOLT-UPSET
112G0645
$0.48
31
NUT,LOCK,6MM
92019-008
$4.26
