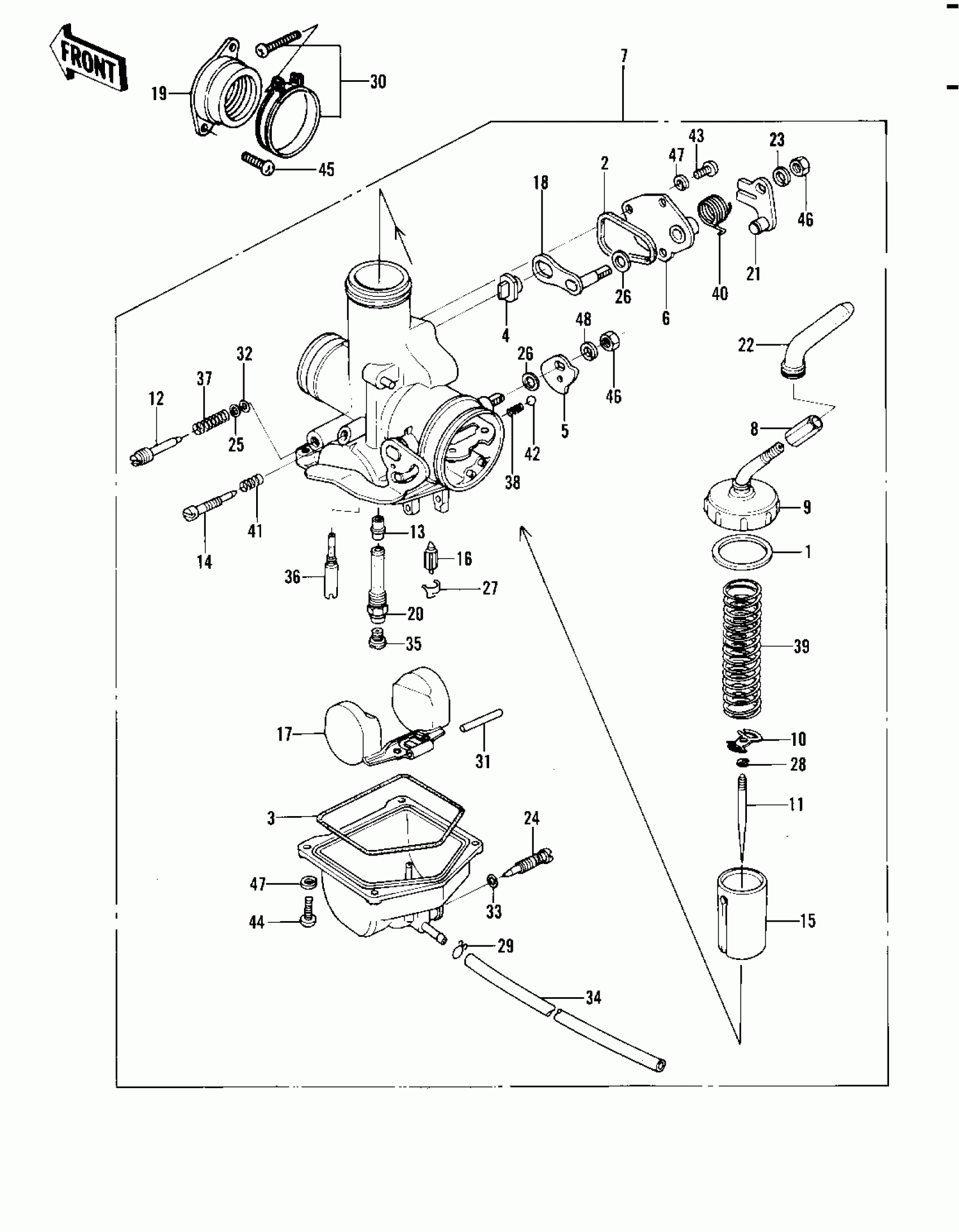

Kawasaki KLT250 CARBURETOR ('82 A1) Diagram
#
1
GASKET-MIXING CHAMBER
11009-1278
Unavailable
2
GASKET-FAST IDLE
11009-1279
Unavailable
3
O RING,FLOAT CHAMBER
16019-024
Unavailable
4
GUIDE-THROTTLE
13070-1060
Unavailable
5
PLATE-CHOKE CAM
13169-1492
Unavailable
6
COVER-FAST IDLE
14025-1452
Unavailable
7
CARBURETOR
16001-1910
$425.68
7
CARBURETOR
16001-1910
$425.68
8
ADJUSTER,CABLE
16002-1002
Unavailable
9
CHAMBER-MIXING,TOP
16005-1014
Unavailable
10
SEAT-SPRING,THROTTLE
16007-1049
Unavailable
11
NEEDLE-JET
16009-1104
Unavailable
12
SCREW-PILOT AIR
16014-1029
$19.09
13
NEEDLE JET
16017-1001
Unavailable
14
SCREW-THROTTLE STOP
16021-1037
Unavailable
15
VALVE-THROTTLE,#2
16025-1064
$119.53
16
VALVE-FLOAT
16030-1007
$47.99
17
FLOAT
16031-1001
Unavailable
18
SHAFT-CARB,FAST IDLE
16041-1026
$16.37
19
HOLDER-CARBURETOR
16065-1035
Unavailable
20
HOLDER-NEEDLE JET
16065-1053
$29.31
21
ARM-IDLE PLATE
21083-1013
$12.45
22
CAP,CABLE ADJUSTER
49006-1007
Unavailable
23
WASHER SPRING 5MM
461F0500
$0.69
24
SCREW,DRAIN,M6X1.0
92009-1095
$14.92
25
WASHER,PLAIN
92022-1003
$4.31
26
WASHER-CHOKE CAM
92022-1308
$4.64
27
CLAMP,FLOAT VALVE
16044-007
$7.91
28
CIRCLIP,JET NEEDLE
92037-1039
Unavailable
29
CLAMP,TUBE
92037-1142
$4.31
30
CLAMP,CARBURETOR HLDR
92037-178
Unavailable
31
PIN,FLOAT
92043-1002
Unavailable
32
RING-O,PILOT ADJUST
92055-1002
$4.31
33
RING-O
92055-1053
$4.69
34
HOSE,FUEL OVERFLOW
92059-1046
Unavailable
35
JET-MAIN,#110
92063-1114
$14.79
35
JET-MAIN,#105
92063-1009
Unavailable
35
JET-MAIN,#108
92063-1116
Unavailable
35
JET-MAIN,#112
92063-1117
Unavailable
35
JET-MAIN,#115
92063-1118
Unavailable
36
JET-PILOT #42
92064-1048
Unavailable
37
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
38
SPRING
92081-1249
$7.55
39
SPRING-THROTTLE VALVE
92081-1435
$8.73
40
SPRING-FAST IDLE
92081-1436
$4.06
41
SPRING-THROTTLE STOP
92081-1437
$3.59
42
BALL-CHOKE CAM
92140-1007
$6.44
43
SCREW PAN HEAD 4X8
220B0408
$0.67
44
SCREW-PAN-CROS
220B0414
$4.28
45
SCREW-PAN-CROS,6X14
220B0614
$1.48
46
NUT-HEX
311B0500
$0.47
47
WASHER SPRING 4MM
461F0400
Unavailable
