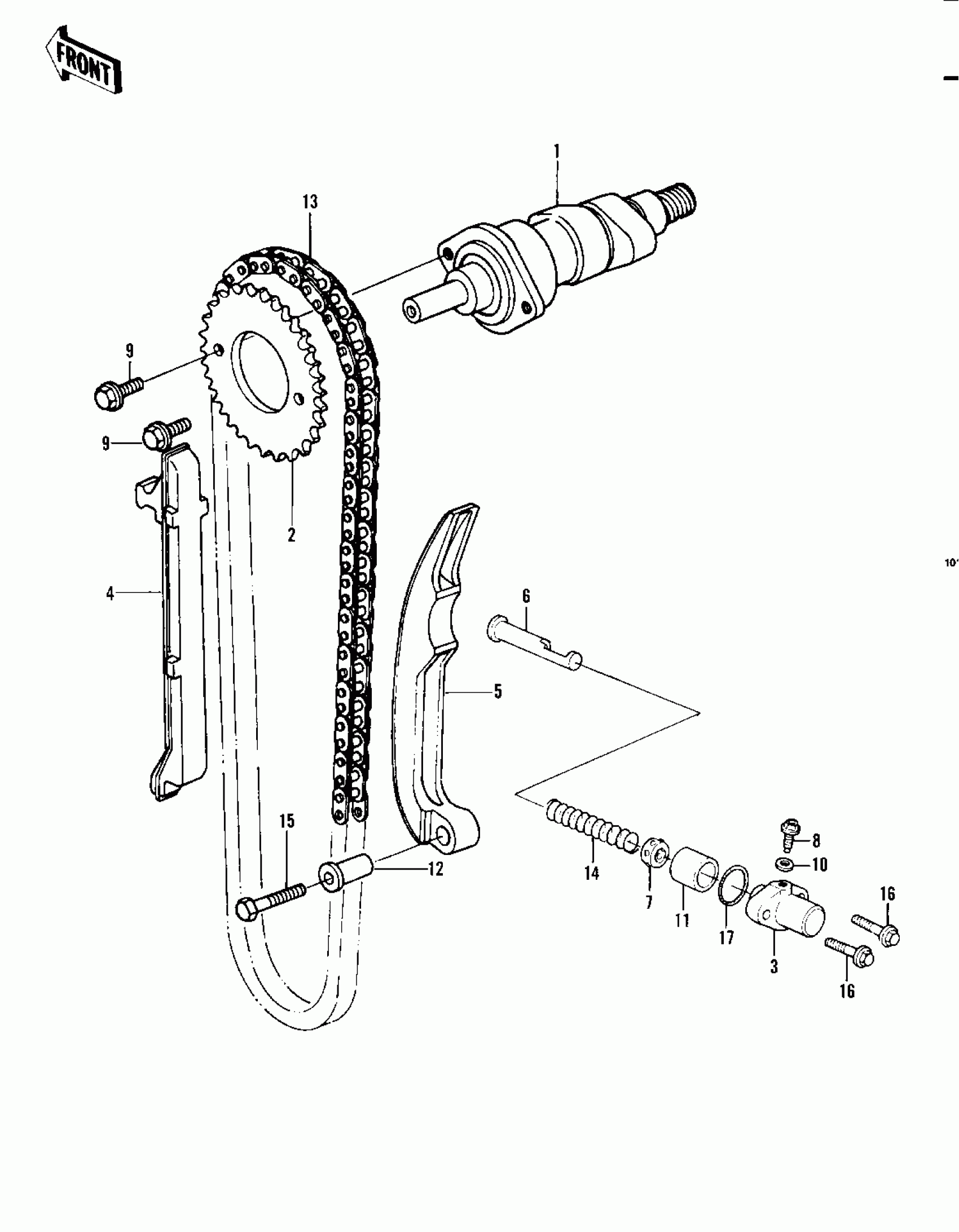

Kawasaki KLT250 CAMSHAFT/CHAIN/TENSIONER ('82 A1) Diagram

Description

Price

SHAFT,CAM

12044-1028

Unavailable

SPROCKET,CAM SHAFT

12046-1007

Unavailable

TENSIONER,CAM CHAIN

12049-1008

Unavailable

SLIPER,CAM CHAIN

12053-023

$36.12

SLIPER,CAM CHAIN

12053-024

$49.12

ROD,PUSH,CAM CHAIN

13116-1019

$16.13

RETAINER,TENSIONER

14020-1002

$17.55

BOLT,TENSIONER ADJUST

92001-1155

$5.33

BOLT,FLANGED,6X11

92003-208

$4.31

WASHER OIL PUMP BANJO

92022-077

$3.99

COLLAR,TENSIONER

92027-1273

$32.58

COLLAR

92027-155

$8.19

CHAIN,CAM

21070-013

$150.60

SPRING,TENSIONER

92081-1105

$4.55

BOLT-UPSET

112G0630

$1.36

BOLT,FLANGED,6X25

130G0625

$1.17

O RING,22MM

670B2022

$4.69
