Description

Price

1

METER-ASSY

25001-4006

$171.83

1

METER-ASSY,KPH (Canada)

25001-4007

Unavailable

2

BRACKET-METER ASSY

11034-4136

Unavailable

3

NUT 6MM

311B0600

$0.93

4

WASHER SPRING 6MM

461F0600

$0.69

5

CABLE,SPEEDOMETER

54001-4002

Unavailable

6

CABLE-BRAKE

54005-4004

Unavailable

7

COVER-SEAL

54009-008

$5.54

8

PIN,BRAKE CABLE

92043-082

$5.59

9

NUT,CABLE ADJUSTER LOCK

92015-052

$12.76

10

CABLE-CLUTCH

54011-4004

Unavailable

11

CABLE-THROTTLE

54012-4002

Unavailable

12

BAND

92072-3505

Unavailable

13

CLAMP,CLUTCH CABLE

92037-1202

Unavailable

14

BOLT-UPSET

112G0618

$1.01

15

WASHER SPRING 6MM

461F0600

$0.69

16

NUT,LOCK,6MM

92019-008

$4.26

17

WASHER,6.5X20X1.6

92022-125

$1.40

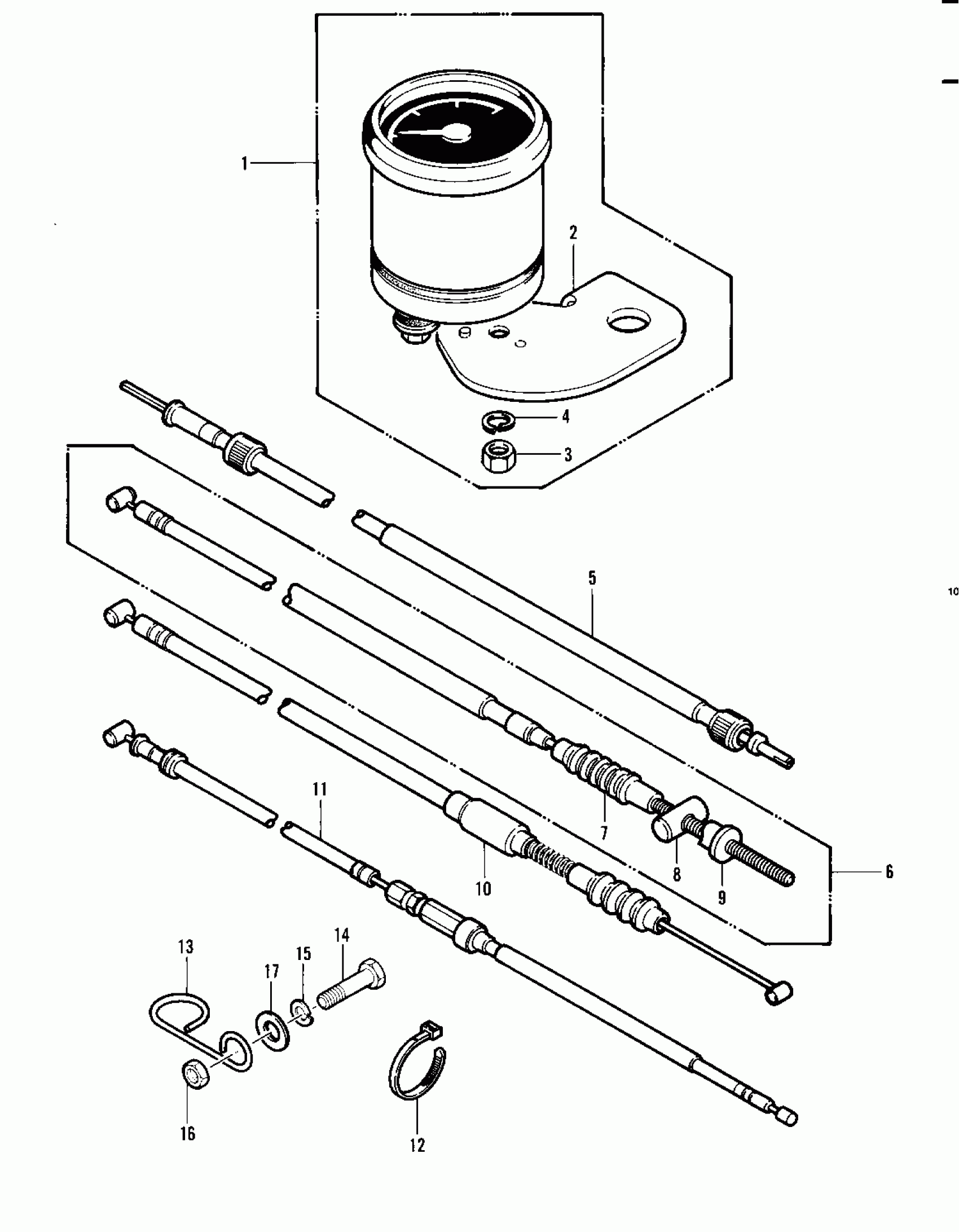

Kawasaki KLT250 CABLES/METER ('82 A1) Diagram

METER-ASSY

METER-ASSY,KPH (Canada)

BRACKET-METER ASSY

NUT 6MM

WASHER SPRING 6MM

CABLE,SPEEDOMETER

CABLE-BRAKE

COVER-SEAL

PIN,BRAKE CABLE

NUT,CABLE ADJUSTER LOCK

CABLE-CLUTCH

CABLE-THROTTLE

BAND

CLAMP,CLUTCH CABLE

BOLT-UPSET

WASHER SPRING 6MM

NUT,LOCK,6MM

WASHER,6.5X20X1.6
