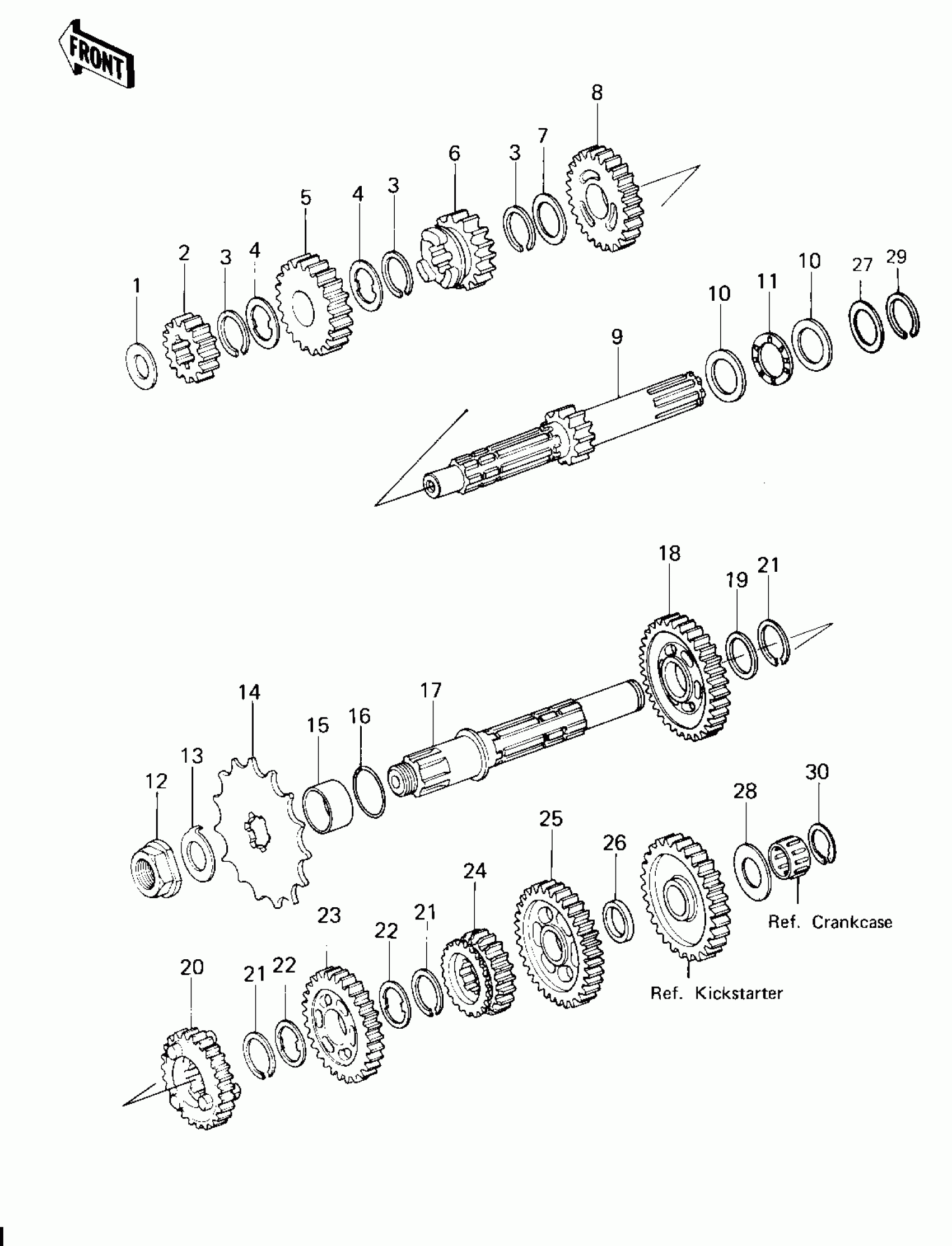

Kawasaki KLT200 TRANSMISSION ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

WASHER,THRUST,15MM

92022-279

$10.56

2

2ND GEAR,DRIVE SHAFT

13129-1022

Unavailable

3

RING-SNAP,20X25.5X1.2

92033-025

$4.96

4

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

5

4TH GEAR,DRIVE SHAFT

13134-026

Unavailable

6

GEAR,INPUT,3RD,20T

13129-1284

Unavailable

7

WASHER,22.3X27X0.5

92022-198

$5.52

8

TOP GEAR,DRIVE SHAFT

13136-057

Unavailable

9

SHAFT,DRIVE

13127-053

Unavailable

10

WASHER,PLAIN

92022-314

$5.35

11

BRG,NEEDLE,AXK1104

92046-052

$15.98

12

NUT,LOCK,16M/M

92015-1013

Unavailable

13

WASHER,LOCK

92022-1017

Unavailable

14

SPROCKET-OUTPUT,13T

13144-1038

Unavailable

14

SPROCKET-OUTPUT,12T

13144-1039

Unavailable

15

COLLAR,ENGINE SPROCKT

92027-287

Unavailable

16

RING-O,17.5X1.5

92055-022

$6.22

17

SHAFT,OUTPUT

13128-1007

Unavailable

18

2ND GEAR,OUTPUT 26T

13131-044

Unavailable

19

WASHER,22.3X27X0.5

92022-198

$5.52

20

GEAR,OUTPUT 4TH,21T

13129-1285

Unavailable

21

RING-SNAP,20X25.5X1.2

92033-025

$4.96

22

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

23

3RD GEAR,OUTPUT SHAFT

13133-044

Unavailable

24

TOP GEAR,OUTPUT SHAFT

13137-037

Unavailable

25

LOW GEAR,OUTPUT SHAFT

13129-058

Unavailable

26

SPACER

92026-114

$5.40

27

WASHER,20.5X30X1,STEEL

92022-112

$8.86

28

WASHER,17.3X30X1.4

92022-270

$9.84

29

RING-SNAP,18MM

92033-029

$9.82

30

RING-SNAP

92033-032

$4.96
