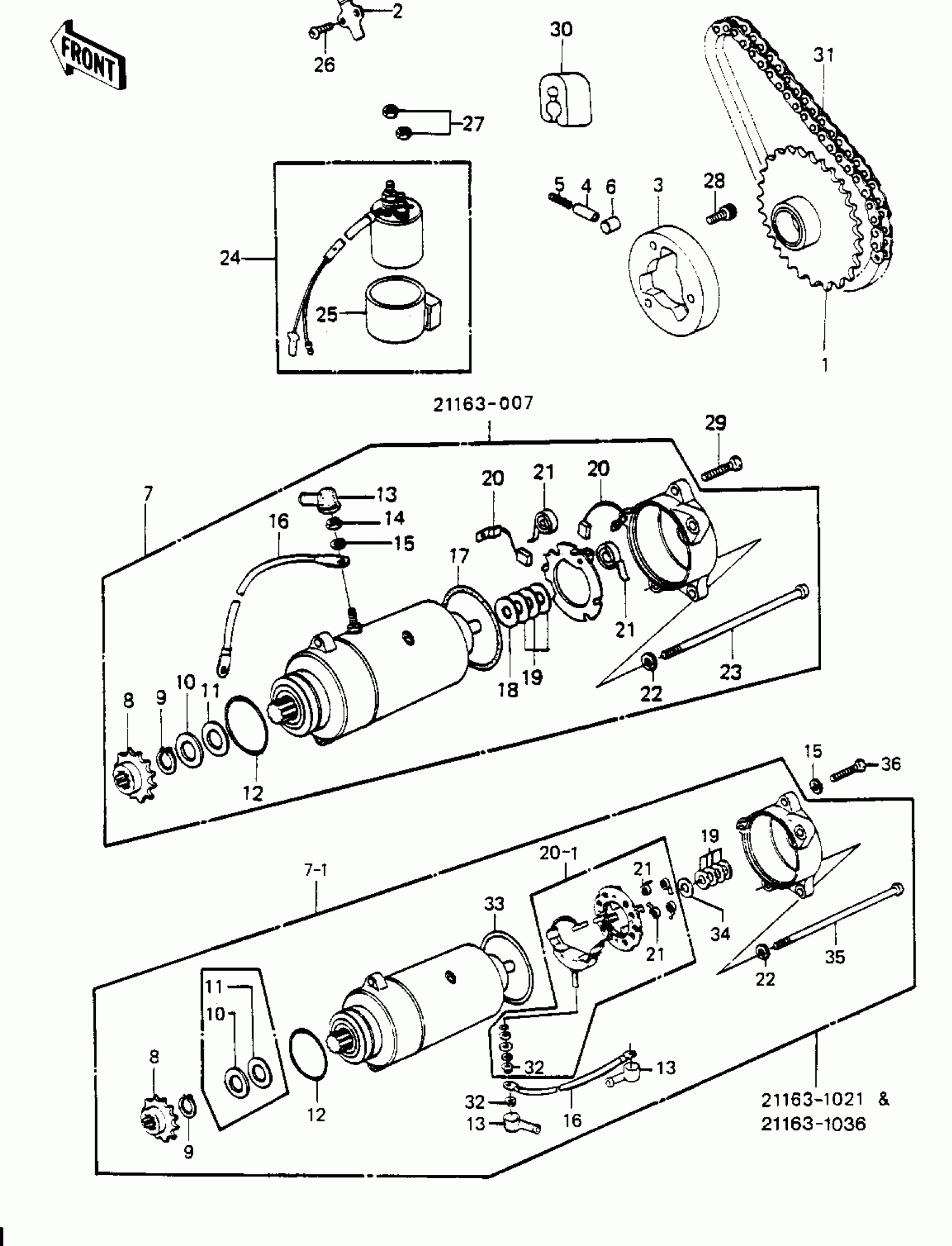

Kawasaki KLT200 STARTER MOTOR/STARTER CLUTCH Diagram
#
1
SPROCKET,STARTER CLUT
12046-1107
Unavailable
1
SPROCKET,STARTER CLUT
12046-1107
Unavailable
2
PLATE
13169-1010
Unavailable
3
CLUTCH,STARTER
13194-008
Unavailable
4
PIN
92043-132
$6.22
5
SPRING,COIL
92081-159
$3.89
6
ROLLER
92122-006
$6.22
7
STARTER-ELECTRIC
21163-1036
Unavailable
7-1
STARTER-ELECTRIC
21163-1036
Unavailable
7-1
STARTER-ELECTRIC
21163-1036
Unavailable
8
SPROCKET,STARTER MOTO
12046-1004
Unavailable
9
RING-SNAP,13MM
92033-037
$9.80
10
WASHER,PLAIN,14MM
21025-008
Unavailable
11
WASHER PLAIN 14MM
21025-009
Unavailable
12
RING-O,42.8MM
21027-005
Unavailable
13
CAP,STARTING MOTOR
21017-020
$8.42
14
NUT 6MM
312B0600
$0.72
15
WASHER SPRING 6MM
461F0600
$0.69
16
WIRE-LEAD,STARTER MOT
26011-1201
$48.53
16
WIRE-LEAD,STARTER MOT
26011-1201
$48.53
17
"0" RING,62MM
21027-006
Unavailable
18
WASHER,THRUST,T=1.6
21025-010
Unavailable
19
WASHER,9.1X18X0.2
21025-011
Unavailable
20
BRUSH CARBON
21039-004
$41.68
20-1
BRUSH,CARBON
21039-1007
Unavailable
20-1
BRUSH,CARBON
21039-1053
$94.23
21
SPRING CARBON BRUSH
21040-004
Unavailable
21
SPRING CARBON BRUSH
21040-004
Unavailable
21
SPRING-BRUSH
21040-1003
$9.41
22
WASHER SPRING 6MM
461F0600
$0.69
23
SCREW,PAN HEAD,6X130
92001-1046
Unavailable
24
SWITCH ASSY,MAGNETIC
21164-005
$159.50
25
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
26
SCREW-PAN-CROS,6X14
220B0614
$1.48
27
NUT-HEX,6MM
311G0600
$2.19
28
BOLT-SOCKET,8X16
120P0816
$4.15
29
BOLT,FLANGED,6X25
130G0625
$1.17
30
CLAMP,CABLE
92037-1049
$3.60
31
CHAIN,DYNAMO
92057-1009
$49.50
32
NUT,FLANGED,6MM
92015-1078
Unavailable
33
RING-O,64MM
92055-1086
$10.00
34
WASHER,9.1X18X0.8
92022-1132
$6.22
35
SCREW,PAN HEAD,6X119
92009-1097
Unavailable
35
SCREW-CSK-RD-CROS,4X45
222C0445
$2.73
36
BOLT-UPSET
112G0625
$3.62
