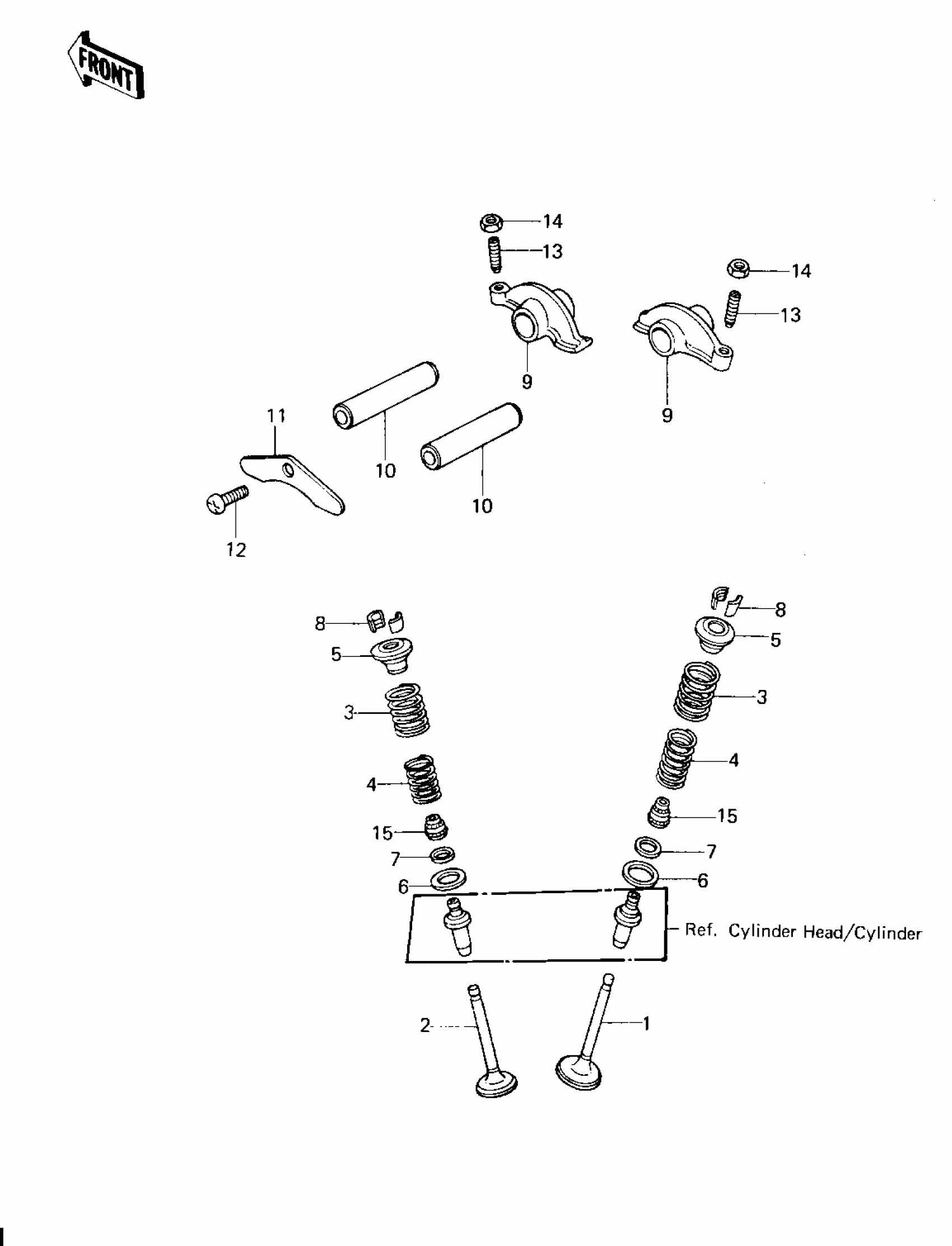

Kawasaki KLT200 ROCKER ARMS/VALVES ('81-'82 KLT200-A1/A2 Diagram

#

Description
Price

1

VALVE,INLET

12004-1006

Unavailable

2

VALVE,EXHAUST

12005-1005

$72.00

3

SPRING,OUTER VALVE

12007-013

$15.61

4

SPRING,INNER VALVE

12007-014

$15.61

5

RETAINER,VALVE SPRING

12009-006

$11.03

6

SEAT,VLV OUTER SPRING

12010-005

$7.95

7

SEAT,VLV INNER SPRING

12010-006

Unavailable

8

COLLET,RETAINER

12011-004

$4.32

9

ARM,ROCKER

12016-012

Unavailable

10

SHAFT,ROCKER ARM

12020-004

$11.48

11

PLATE,POSITIONING

14014-034

$8.31

12

SCREW-PAN-CROS,6X14

220B0614

$1.19

13

SCREW,6MM

92013-009

$5.14

14

NUT,6MM

92016-061

$3.72

15

SEAL-OIL,RV37129.5

92049-016

$14.42
