Description

Price

1

WASHER SPRING 10MM

461F1000

$0.67

2

BOLT

92001-160

Unavailable

5

BOLT-UPSET

112G0622

$3.48

6

WASHER PLAIN 6MM

411B0600

$2.84

7

SHOE-BRAKE

41048-1068

$27.31

8

CAM SHAFT,BRAKE

41050-1002

Unavailable

9-1

LEVER BRAKE CAM

41053-1022

Unavailable

10

PANEL,REAR BRAKE

42016-4001

$102.38

11

SPRING,BRAKE SHOE

42020-004

$8.51

12

O RING,15MM

670B2015

$1.42

13

DRUM

41038-4005

$44.17

14

HOUSING,BEARING

41046-4001

$87.97

15

BEARING-BALL,#6008UU

601A6008UU

$61.39

16

NUT,HUB

92015-4012

Unavailable

19

SPRING,BEARING

92081-4013

$5.27

20

HUB

49030-4001

Unavailable

22

WASHER,16X41X4

92022-230

$11.93

23

PIN COTTER 4.0X30

550D4030

$2.33

24

NUT

92015-4015

Unavailable

25

SPROCKET-HUB,50T

42041-4004

$98.91

26

DR CHAIN 520X98

92057-106

$175.64

27

CHAIN JOINT 520

92058-1001

Unavailable

28

WASHER

92022-4020

$2.77

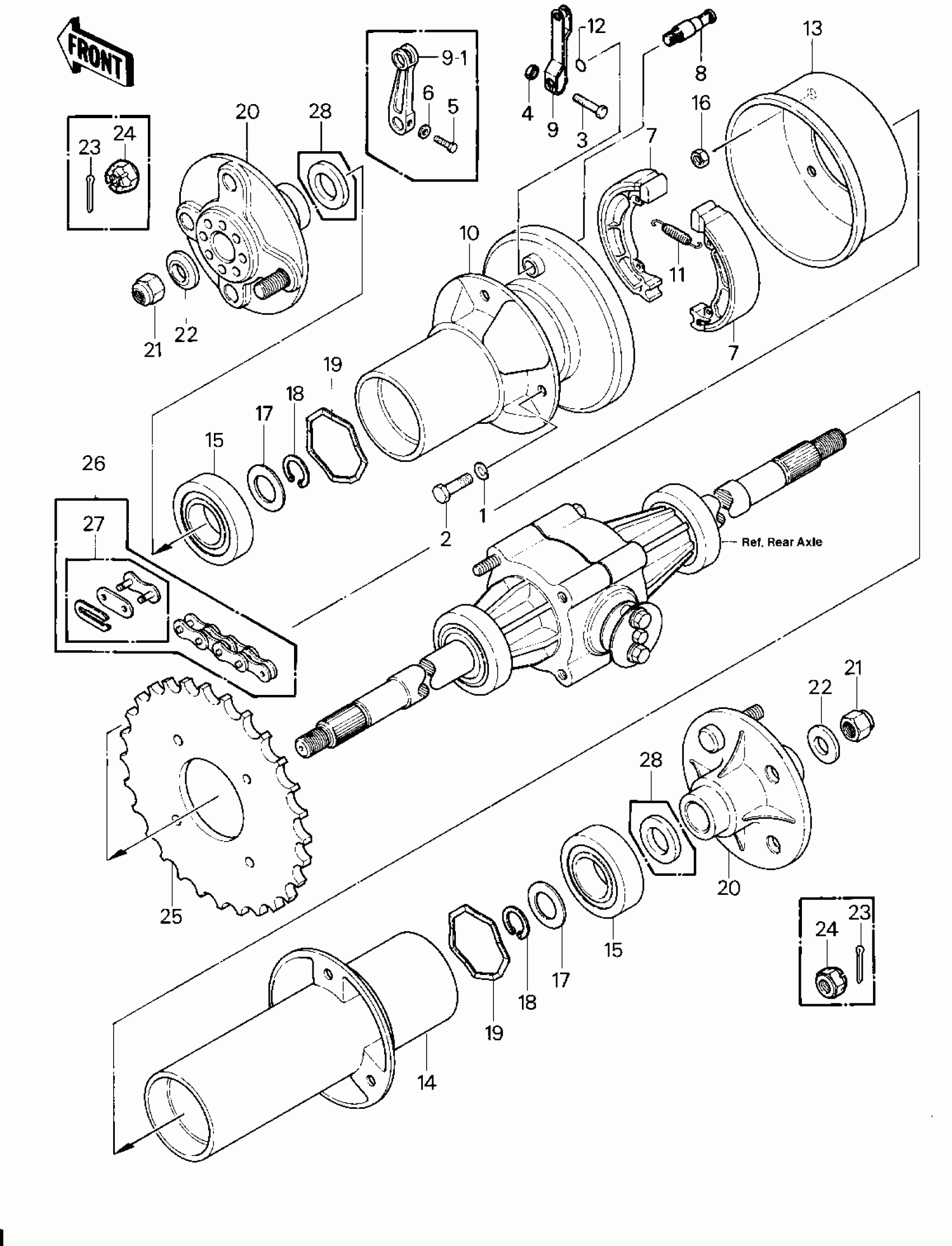

Kawasaki KLT200 REAR BRAKE/CHAIN ('81-'82 KLT200-A1/A2/A Diagram

WASHER SPRING 10MM

BOLT

BOLT-UPSET

WASHER PLAIN 6MM

SHOE-BRAKE

CAM SHAFT,BRAKE

LEVER BRAKE CAM

PANEL,REAR BRAKE

SPRING,BRAKE SHOE

O RING,15MM

DRUM

HOUSING,BEARING

BEARING-BALL,#6008UU

NUT,HUB

SPRING,BEARING

HUB

WASHER,16X41X4

PIN COTTER 4.0X30

NUT

SPROCKET-HUB,50T

DR CHAIN 520X98

CHAIN JOINT 520

WASHER
