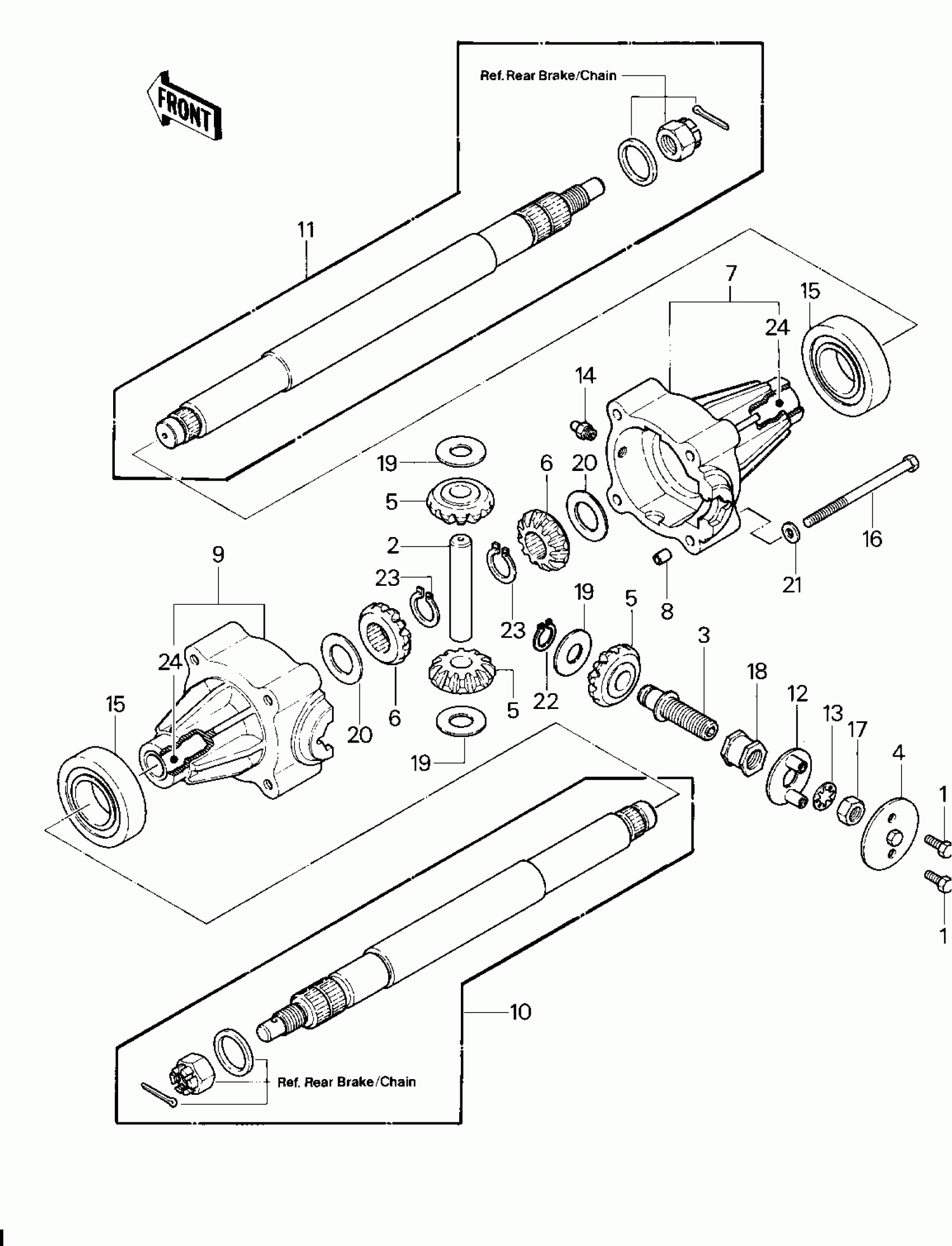

Kawasaki KLT200 REAR AXLE ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

BOLT-FLANGED,6X12

130G0612

$1.69

2

SHAFT

13107-4001

Unavailable

3

SHAFT

13107-4009

Unavailable

4

PLATE LOCKING

13169-4011

Unavailable

5

GEAR

16085-4003

$24.35

6

GEAR

16085-4004

Unavailable

7

CASE,RIGHT

32099-4005

$64.27

8

PIN,DOWEL,10X14

92043-1037

$0.74

9

CASE,LEFT

32099-4004

$47.36

10

AXLE ASSY,LH 13.45"

41067-4009

Unavailable

12

FLANGE,AXLE

41086-4006

$37.72

13

WASHER,TOOTHED,16M/M

463H1600

$4.13

14

NIPPLE,GREASE

49001-4001

$2.30

15

BEARING-BALL,#6008UU

601A6008UU

$61.39

16

BOLT,HEX HEAD

92001-4019

$2.70

17

NUT

92015-4009

$1.00

18

NUT

92015-4013

$7.07

19

WASHER

92022-4008

$1.00

20

WASHER

92022-4009

$1.43

21

WASHER PLAIN

92022-4011

$0.29

22

RING

92033-4001

Unavailable

23

RING,SNAP

92033-4002

$1.62

24

BUSHING

92028-4003

$9.28
