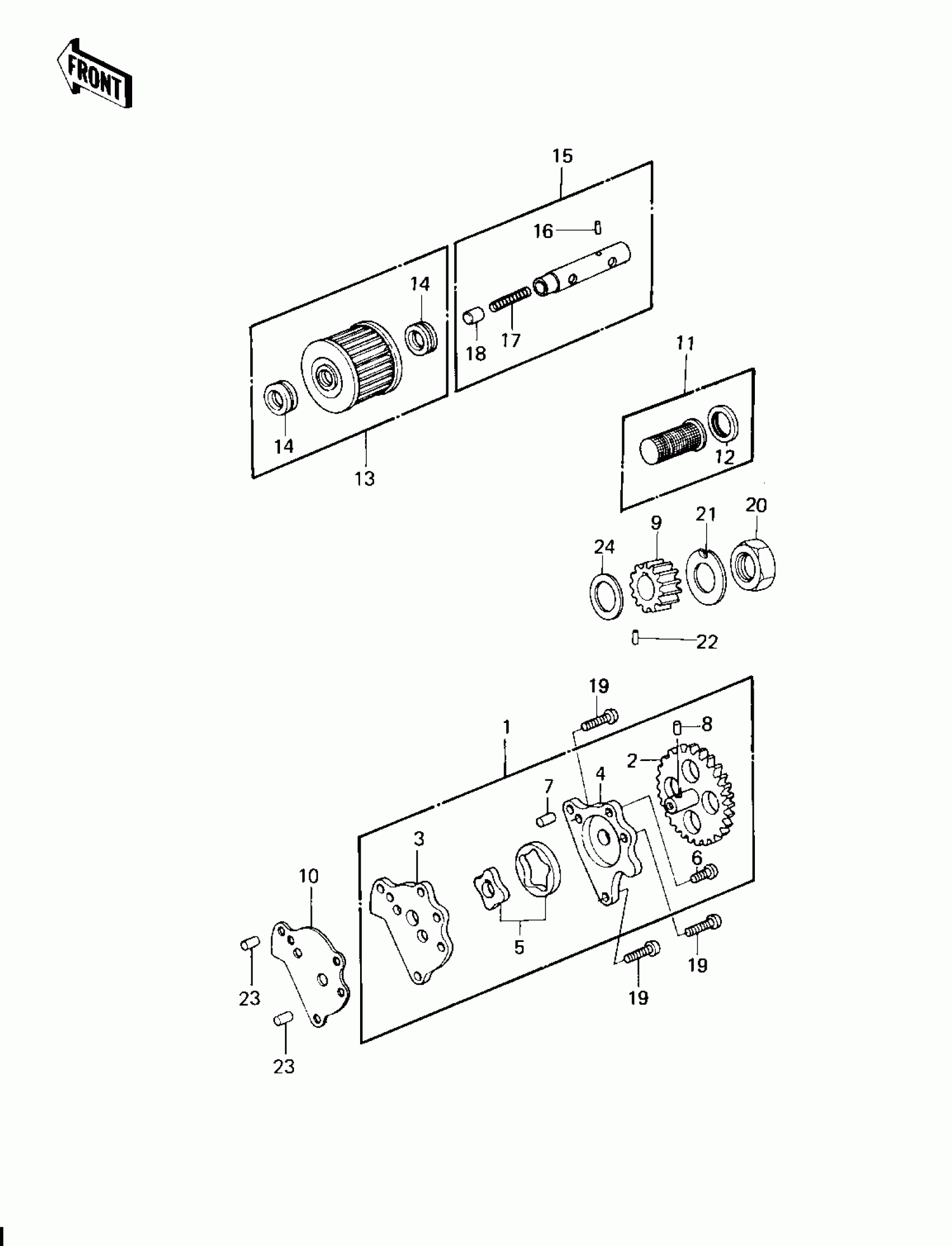

Kawasaki KLT200 OIL PUMP/OIL FILTER ('81-'82 KLT200-A1/A Diagram

#

Description
Price

1

PUMP ASSY OIL

16082-1015

$185.45

2

GEAR,OIL PUMP

16085-026

Unavailable

3

BODY,OIL PUMP

16141-006

$23.03

4

COVER OIL PUMP

16142-1006

$20.93

5

ROTOR-PUMP

16154-1008

$35.48

6

SCREW-PAN-CROS,6X16

220B0616

Unavailable

7

PIN-DOWEL,6X8

551A0608

$3.53

8

PIN,DOWEL,4X12.8

92042-041

$5.71

9

GEAR,OIL PUMP

16084-018

$10.93

10

GASKET,OIL PUMP

11060-1115

$4.58

11

FILTER-ASSY-OIL

16097-1001

$9.69

12

GROMMET,OIL STRAINER

92071-100

$4.32

13

ELEMENT-OIL FILTER

16099-004

$7.36

14

GROMMET,OIL FILTER

92071-101

$4.32

15

PISTON-ASSY,VALVE,BY-PASS

16156-002

$19.56

16

PIN,SPRING,2.2X13.5

92043-123

$4.17

17

SPRING,PISTON

92081-043

$4.32

18

VALVE

92136-002

$4.14

19

SCREW PAN HEAD 6X25

220B0625

Unavailable

20

NUT-HEX-FINE,16MM

315B1600

Unavailable

21

WASHER-CLAW,16MM

420B1611

Unavailable

22

PIN DOWEL 3X12

551A0312

Unavailable

23

PIN-DOWEL,6X8

551A0608

$3.53

24

WASHER,THRUST,16.5X28X1

92022-170

$9.02
