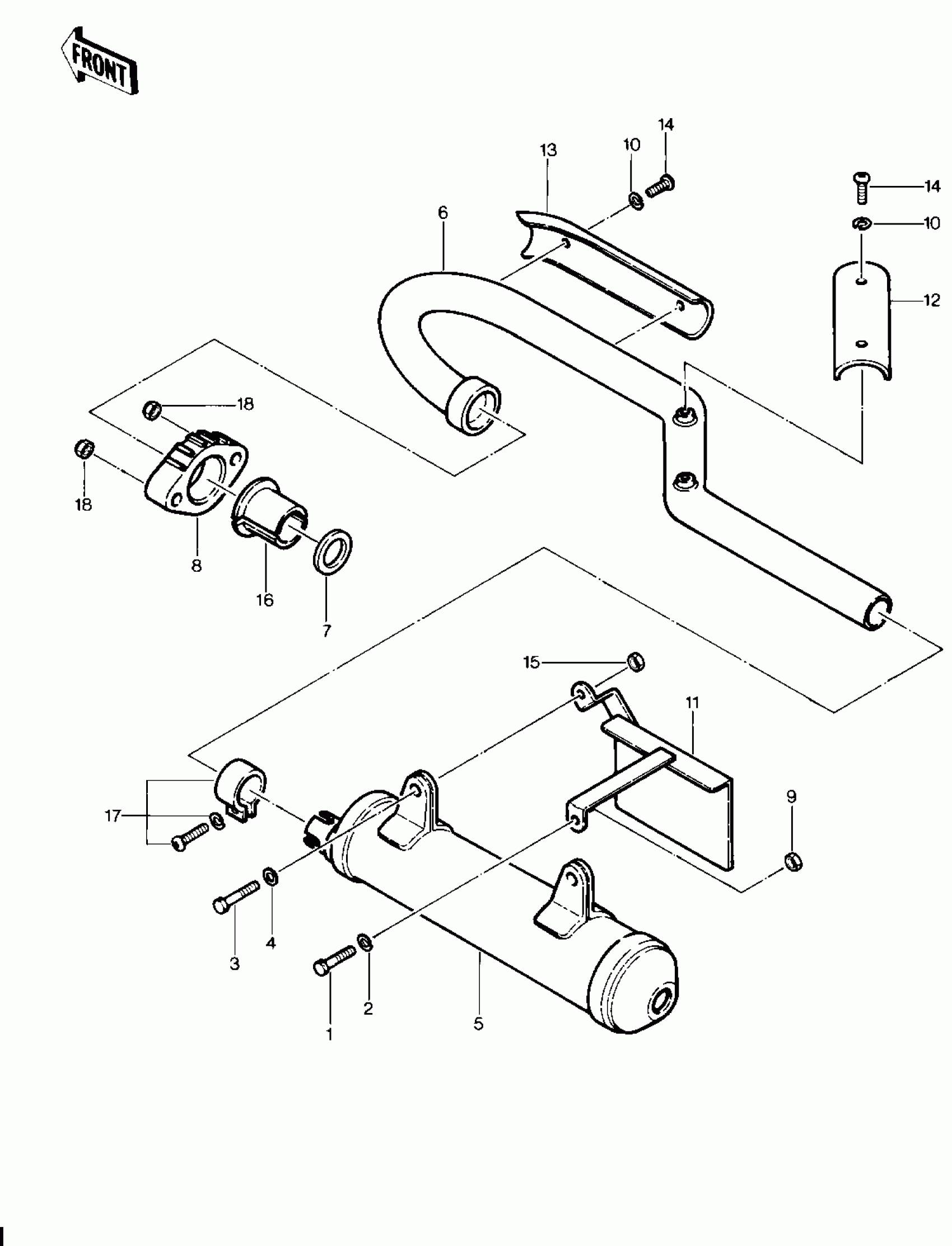

Kawasaki KLT200 MUFFLER ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

BOLT,8X20

115G0820

Unavailable

4

WASHER PLAIN 8MM

410B0800

Unavailable

5

MUFFLER

18001-1451

$465.33

6

PIPE-EXHAUST

18049-1131

$81.05

7

GASKET,EXHAUST PIPE H

11009-1866

$6.55

8

CLAMP EXHAUST PIPE

18069-004

Unavailable

9

NUT-HEX-SMALL,8MM

317B0800

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

12

COVER-EXHAUST PIPE

49107-1002

$40.15

13

COVER-EXHAUST PIPE

49107-1003

$31.64

14

SCREW,6X6.7

92009-1054

$2.56

15

NUT,8MM

92015-1143

$0.59

16

INSERT,EXHAUST PIPE

92027-278

Unavailable

17

CLAMP,MUFFLER FITTING

92037-1035

Unavailable
