Description

Price

1

LEVER,KICK

13059-1013

Unavailable

2

IDLE GEAR,KICKSTARTER

13073-013

Unavailable

3

PINION,KICKSTARTER

13075-012

Unavailable

4

SHAFT,KICK

13066-1018

Unavailable

5

GEAR-COMP,KICKSTARTER

13216-1099

Unavailable

6

RATCHET

13078-1052

$66.54

7

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

8

WASHER,16.8X22X0.5

92022-315

$6.22

9

SPRING,RATCHET

92081-122

$8.79

10

GUIDE,KICK SPRING

13070-011

$9.82

11

SPRING,KICKSTARTER

92082-003

$28.46

12

BOLT-UPSET

112G0618

$1.01

13

STOPPER,KICKSTARTER

13072-017

Unavailable

14

GUIDE,KICK RATCHET

13206-1004

Unavailable

15

WASHER,18.5X23X1.2

92022-118

$4.69

16

WASHER,12.3X20X0.5

92022-269

$1.25

17

PLUG,KICK LEVER

92066-1067

$5.03

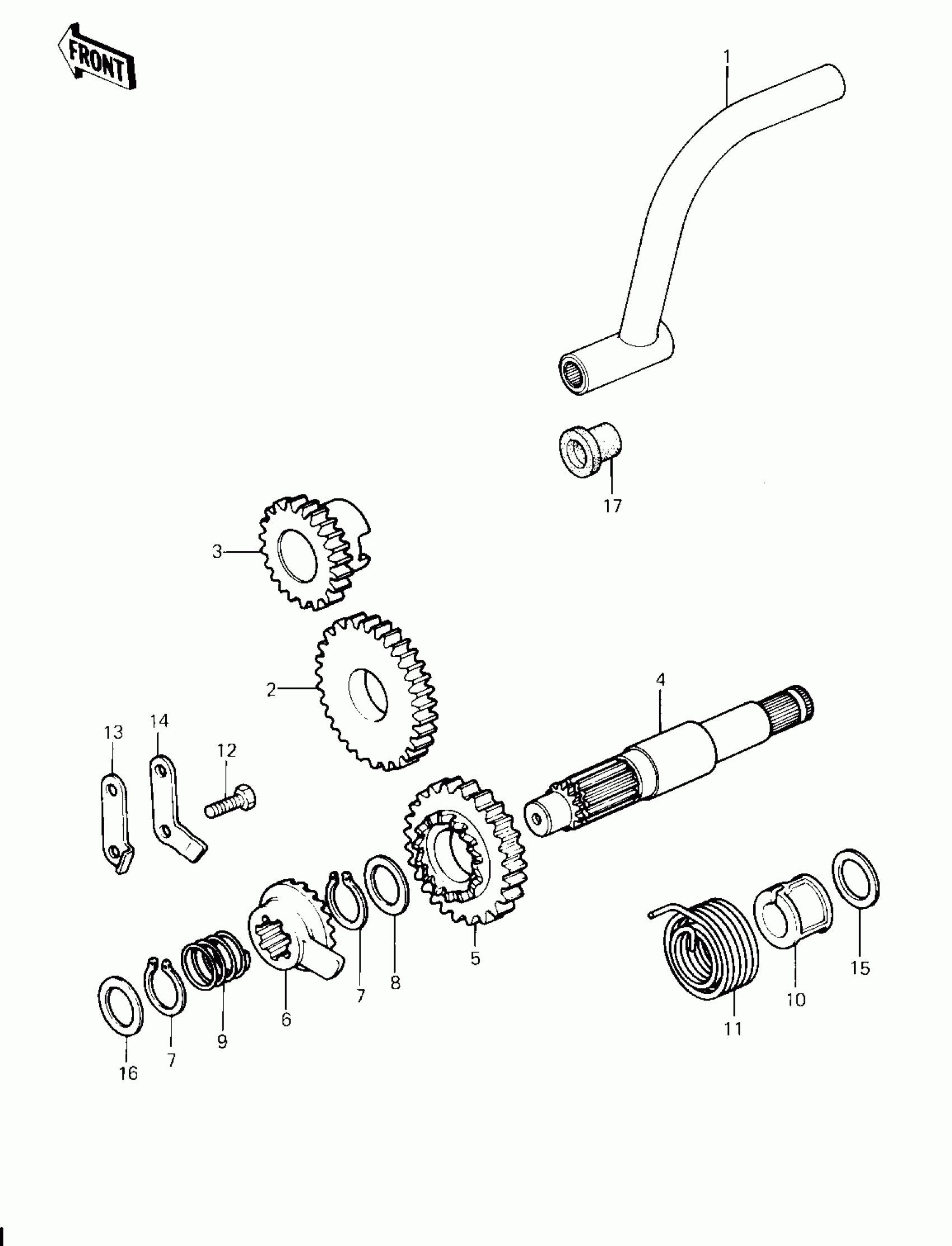

Kawasaki KLT200 KICKSTARTER MECHANISM Diagram

LEVER,KICK

IDLE GEAR,KICKSTARTER

PINION,KICKSTARTER

SHAFT,KICK

GEAR-COMP,KICKSTARTER

RATCHET

CIRCLIP-TYPE-C,16MM

WASHER,16.8X22X0.5

SPRING,RATCHET

GUIDE,KICK SPRING

SPRING,KICKSTARTER

BOLT-UPSET

STOPPER,KICKSTARTER

GUIDE,KICK RATCHET

WASHER,18.5X23X1.2

WASHER,12.3X20X0.5

PLUG,KICK LEVER
