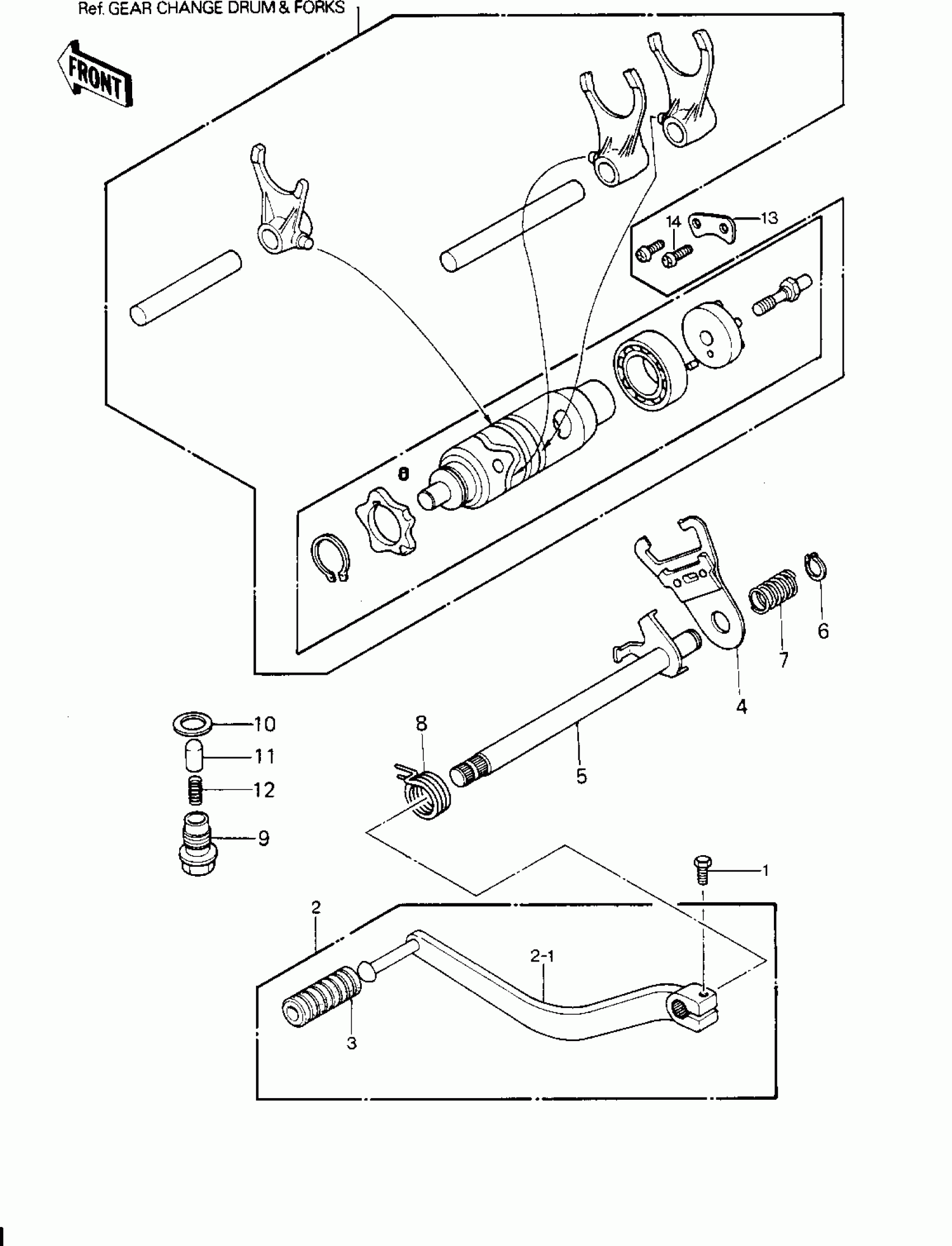

Kawasaki KLT200 GEAR CHANGE MECHANISM ('81-'82 KLT200-A1 Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

LEVER,GEAR SHIFT

13156-1070

Unavailable

2-1

LEVER,GEAR SHIFT

13156-1070

Unavailable

3

DAMPER,CHANGE PEDAL

92160-1108

$6.44

4

LEVER ASSY,GEAR SHIFT

13161-044

Unavailable

5

LEVER ASSY,GEAR SHIFT

13161-1013

Unavailable

6

CIRCLIP-TYPE-C,13MM

480J1300

$3.12

7

SPRING,COIL

92081-149

Unavailable

8

SPRING,CHG PEDL RTRN

92083-028

Unavailable

9

BOLT,NEUTRAL POSITION

92001-182

$17.46

10

WASHER,16.5X23X2

92022-324

Unavailable

11

PIN,NEUTRAL POSITIONG

92043-131

Unavailable

12

SPRING

92081-112

$5.37

13

PLATE,GEAR CHANGE DRUM

13169-014

$4.90

14

SCREW-PAN-CROS,6X14

220B0614

$1.32
