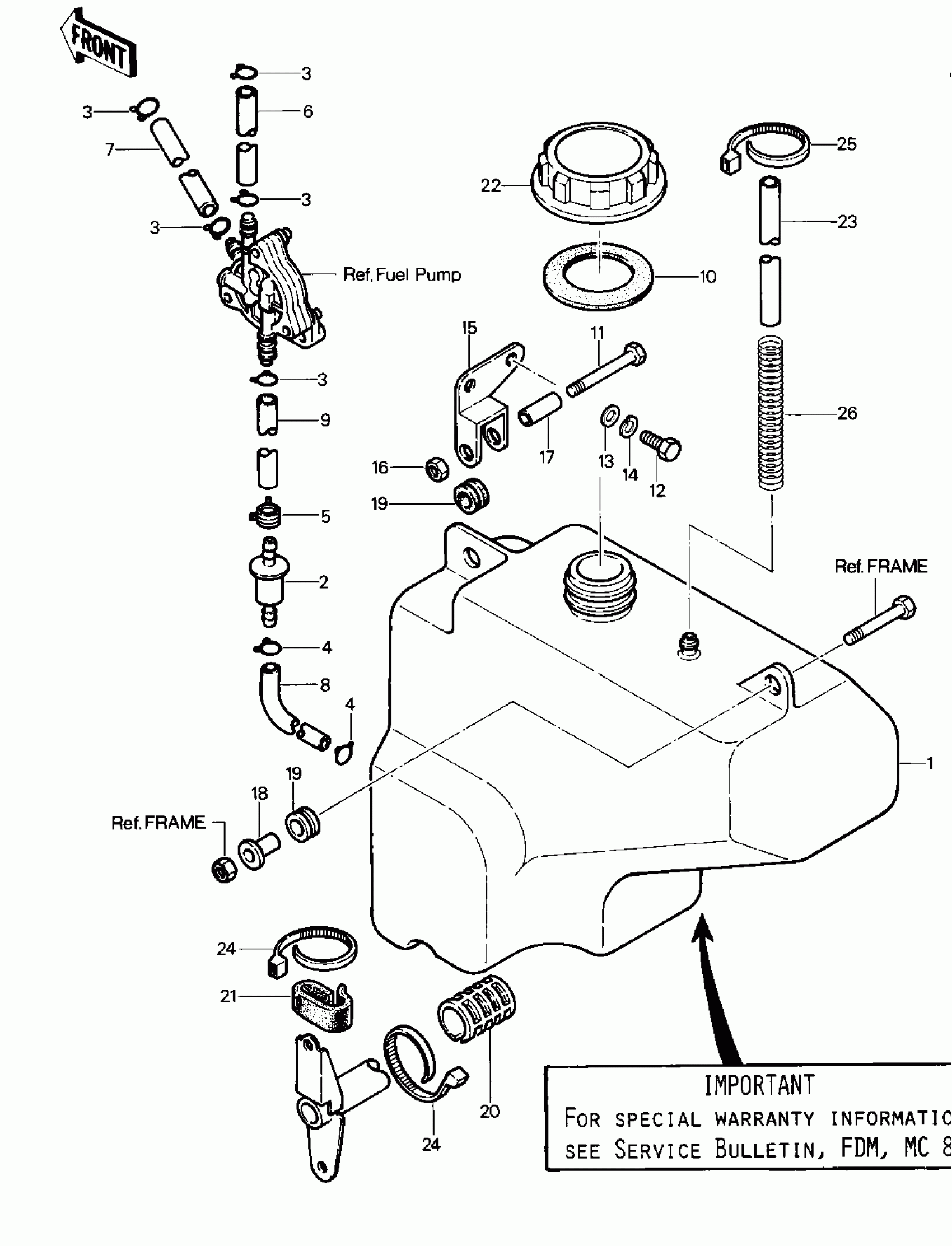

Kawasaki KLT200 FUEL TANK ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

TANK-FUEL,GRAY

51001-4003-8L

Unavailable

1

TANK-FUEL,GRAY

51001-4003-8L

Unavailable

2

FILTER-FUEL

49019-3502

Unavailable

3

CLAMP,CARB CONECT HOS

92037-056

$5.75

4

CLAMP-FUEL TUBE

92037-3501

$0.58

5

CLAMP

92037-4009

$0.65

6

TUBE,6.5X11.5X350

92059-4004

$10.02

7

TUBE,6.5X11.5X290

92059-4028

$10.44

8

TUBE,FUEL

92059-4011

$1.42

9

TUBE,6.5X11.5X85

92059-4014

$2.90

10

GASKET,TANK CAP

11009-3020

$10.69

11

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

12

BOLT-UPSET,6X12

112G0612

Unavailable

13

WASHER PLAIN 6MM

411B0600

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BRKT,TANK

32052-4005

$14.75

16

NUT,LOCK,8MM

92015-1124

$4.28

17

COLLAR,8.8X12X14

92027-012

$4.87

18

COLLAR,FUEL TANK FITT

92027-1134

$8.16

19

DAMPER RUBB TANK FRNT

92075-013

$3.92

20

DAMPER,FUEL TANK

92075-084

$7.97

21

DAMPER

92075-4024

$1.20

22

CAP-TANK

51049-3001

$8.56

23

TUBE

92059-4009

$1.66

24

BAND

92072-3505

Unavailable

25

BAND

92072-4004

$2.41

26

SPRING

92081-4011

$1.93
