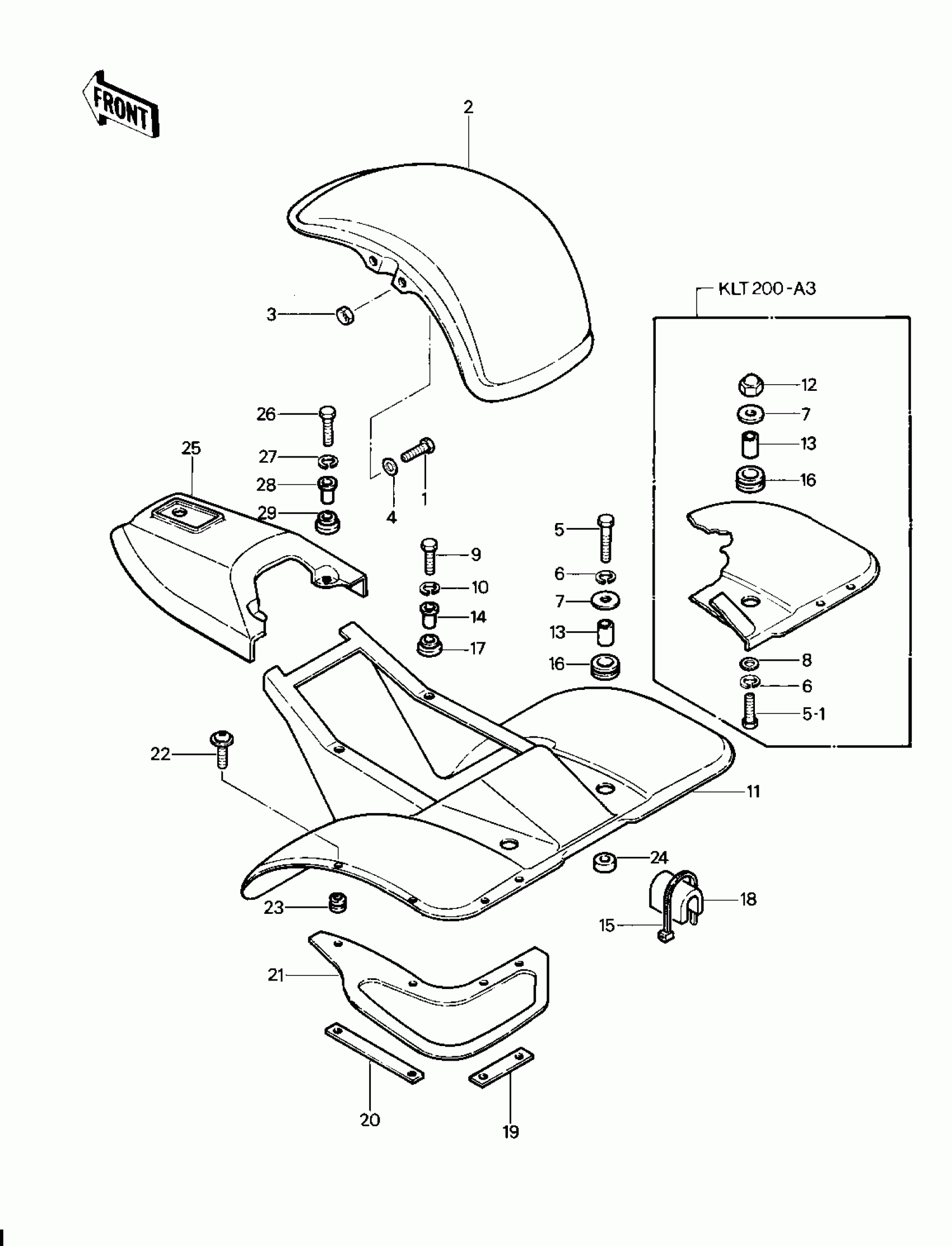

Kawasaki KLT200 FENDERS/COVER ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

BOLT-UPSET,6X12

112G0612

Unavailable

2

FENDER, FRONT, LIME GREEN

35004-4002-6W

Unavailable

2

FENDER-FR,BLACK

35004-4002-6D

Unavailable

3

NUT-6MM

322N0600

$1.00

4

WASHER,6.5X20X1.6

92022-125

$1.13

5-1

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

WASHER,8.5X26X1.6

92022-092

$3.85

8

WASHER PLAIN 8MM

410B0800

Unavailable

9

BOLT 6X22

112B0622

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

FENDER-RR,GREEN

35022-4002-6W

Unavailable

11

FENDER-RR,BLACK

35022-4002-6D

$138.99

12

NUT FUEL TANK FRONT

92020-007

Unavailable

13

COLLAR

92027-102

$0.90

14

COLLAR

92027-194

$4.36

15

BAND,L=292.1

92072-3509

Unavailable

16

DAMPER RUBB TANK FRNT

92075-013

$3.92

17

DAMPER RUBBER

92075-112

$3.57

18

DAMPER

92075-4023

$2.02

19

BRACKET,FLAP

11034-4062

Unavailable

20

BRACKET,FLAP

11034-4063

Unavailable

21

FLAP,FENDER

35019-4003

Unavailable

22

SCREW,6X20

92009-1289

$3.43

23

DAMPER RUBBER

92075-051

$3.12

25

COVER,FR,GREEN

14025-4008-6W

Unavailable

25

COVER,FR,BLACK

14025-4008-6D

Unavailable

26

BOLT 6X22

112B0622

Unavailable

27

WASHER SPRING 6MM

461F0600

Unavailable

28

COLLAR

92027-194

$4.36

29

DAMPER RUBBER

92075-112

$3.57
