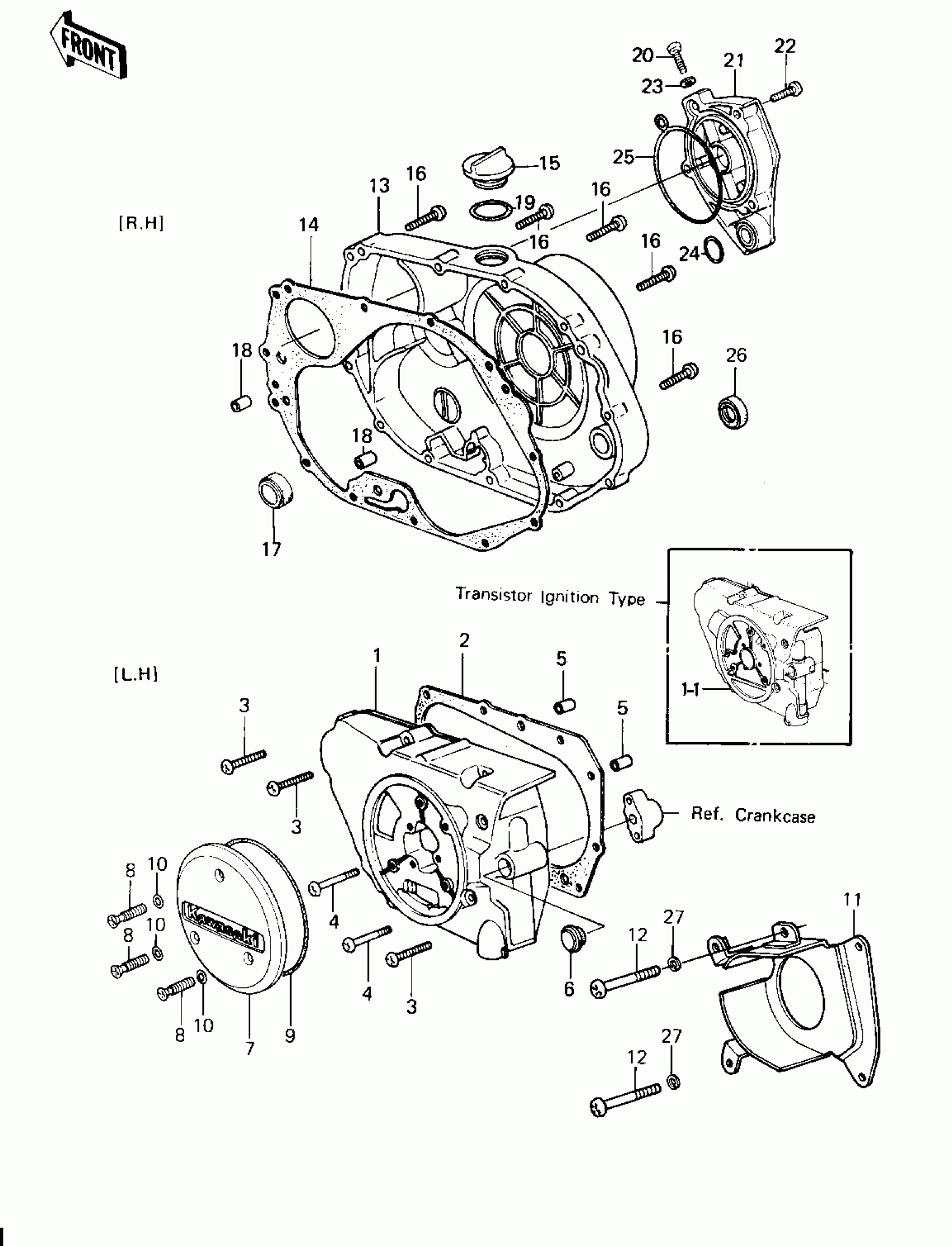

Kawasaki KLT200 ENGINE COVERS ('81-'82 KLT200-A1/A2/A3) Diagram
#
Description
Price
1-1
COVER-GENERATOR
14031-1067
Unavailable
2
GASKET,L.H ENGINE COV
14045-031
$30.41
3
SCREW PAN HEAD 6X30
220B0630
$3.41
4
SCREW-PAN-CROS,6X60
220B0660
$1.79
5
PIN,DOWEL,6.3X8X14
92042-007
$5.70
6
PLUG
92066-065
Unavailable
7
COVER,DYNAMO
14025-1239
Unavailable
8
SCREW OVL CNTSK 6X25
222E0625
Unavailable
9
"O" RING,DYNAMO COVER
92055-108
$14.93
10
RING-O,5.28X1.78
92055-109
$4.39
11
COVER-CHAIN
14026-1033
Unavailable
12
SCREW PAN HEAD 6X10
220B0610
$3.14
13
COVER,R.H.ENG,F.BLACK
14032-1036
Unavailable
14
GASKET,ENGINE COV,RH
11009-1235
Unavailable
15
CAP-OIL FILLER
16115-013
$19.96
16
SCREW PAN HEAD 6X30
220B0630
$3.41
17
GAUGE,OIL LEVEL
52005-1009
$18.40
18
PIN,DOWEL,6.3X8X14
92042-007
$5.70
19
RING-O,31.5X2.6
92055-049
$4.31
20
BOLT HEX HEAD 6X8
110B0608
$0.18
21
COVER,FILTER,F.BLACK
14025-1102
Unavailable
22
SCREW PAN HEAD 6X25
220B0625
$2.60
23
WASHER,6.2X11X1
92022-304
$3.65
24
RING-O
92055-098
$9.57
25
"0" RING,FILTER COVER
92055-1048
$14.50
26
SEAL-OIL
92050-078
$8.58
27
WASHER SPRING 6MM
461F0600
$0.69
