Description

Price

1

GASKET,CYLINDER HEAD

11004-1004

Unavailable

2

CYLINDER HEAD

11002-5023

Unavailable

3

GUIDE,INLET VALVE

12013-003

Unavailable

4

GUIDE,EXHAUST VALVE

49002-1010

Unavailable

5-1

BOLT-SOCKET,8X30

120P0830

$2.62

6

WASHER PLAIN 8MM

410B0800

$0.93

7

BOLT,8X233

92003-220

$17.92

8

PIN,DOWEL,10X14

92043-1037

$0.74

9

RING-O,10MM

92055-1149

$6.57

10

"0" RING

92055-105

$52.25

11

PLUG,TACHOMETER GEAR

92066-060

Unavailable

12

CYLINDER-ENGINE

11006-1011

Unavailable

13

GASKET,CYLINDER BASE

11009-043

Unavailable

14

BOLT,FLANGED,6X28

92003-202

Unavailable

15

PIN,DOWEL,10X14

92043-1037

$0.74

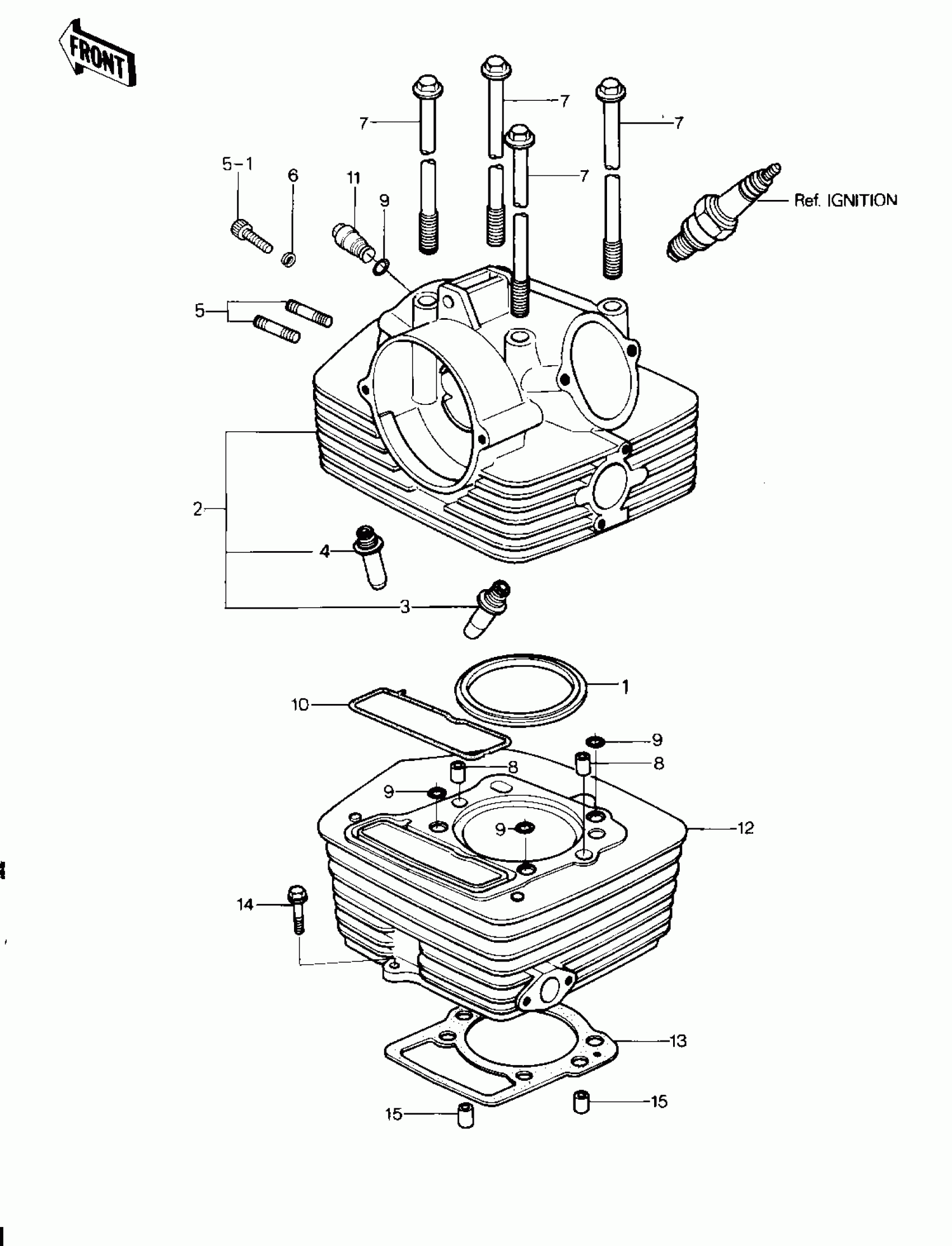

Kawasaki KLT200 CYLINDER HEAD/CYLINDER Diagram

GASKET,CYLINDER HEAD

CYLINDER HEAD

GUIDE,INLET VALVE

GUIDE,EXHAUST VALVE

BOLT-SOCKET,8X30

WASHER PLAIN 8MM

BOLT,8X233

PIN,DOWEL,10X14

RING-O,10MM

"0" RING

PLUG,TACHOMETER GEAR

CYLINDER-ENGINE

GASKET,CYLINDER BASE

BOLT,FLANGED,6X28

PIN,DOWEL,10X14
