Description

Price

1

PISTON,STD

13001-083

$117.83

1

PISTON,0.020"0/S

13029-1001

Unavailable

1

PISTON,0.040"0/S

13027-1001

Unavailable

2

PIN-PISTON

13002-026

$36.90

3

RING SET,STD

13008-5005

$111.09

3

RING SET,0.020'0.S

13025-5004

Unavailable

3

RING SET,0.040'0.S

13024-5005

Unavailable

4

CIRCLIP,PISTON PIN

92036-021

$0.49

5

CRANKSHAFT ASSY

13031-055

Unavailable

6

CONNECTING ROD ASSY

13044-5006

Unavailable

7

BRG,NEEDLE PK293921.4

13034-031

Unavailable

8

PIN,CRANK

13035-035

Unavailable

9

CRANKSHAFT,L.H

13037-5001

Unavailable

10

CRANKSHAFT,RH

13037-1149

Unavailable

11

SPACER,29.1X47.5X1.2

92026-087

$9.91

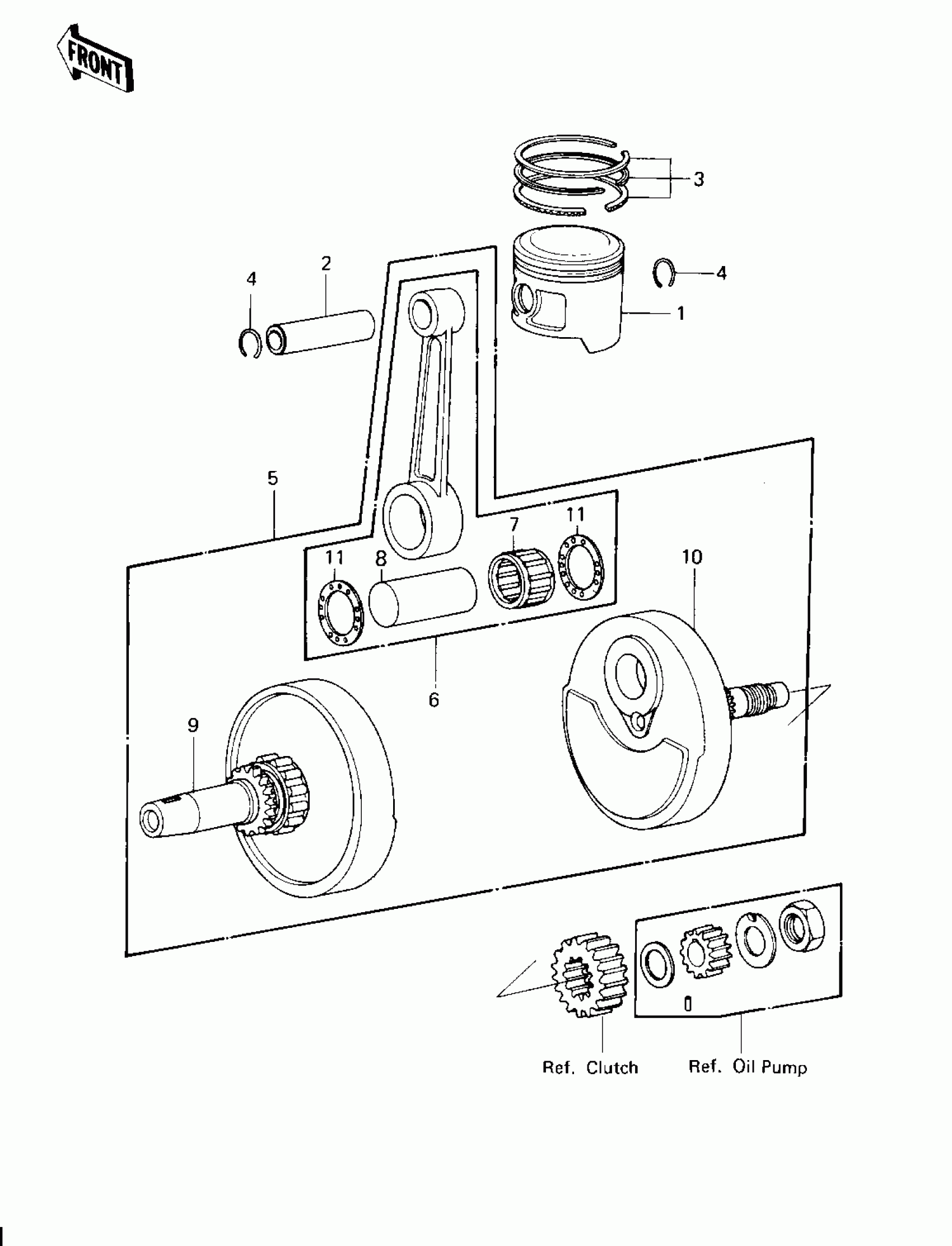

Kawasaki KLT200 CRANKSHAFT/PISTON Diagram

PISTON,STD

PISTON,0.020"0/S

PISTON,0.040"0/S

PIN-PISTON

RING SET,STD

RING SET,0.020'0.S

RING SET,0.040'0.S

CIRCLIP,PISTON PIN

CRANKSHAFT ASSY

CONNECTING ROD ASSY

BRG,NEEDLE PK293921.4

PIN,CRANK

CRANKSHAFT,L.H

CRANKSHAFT,RH

SPACER,29.1X47.5X1.2
