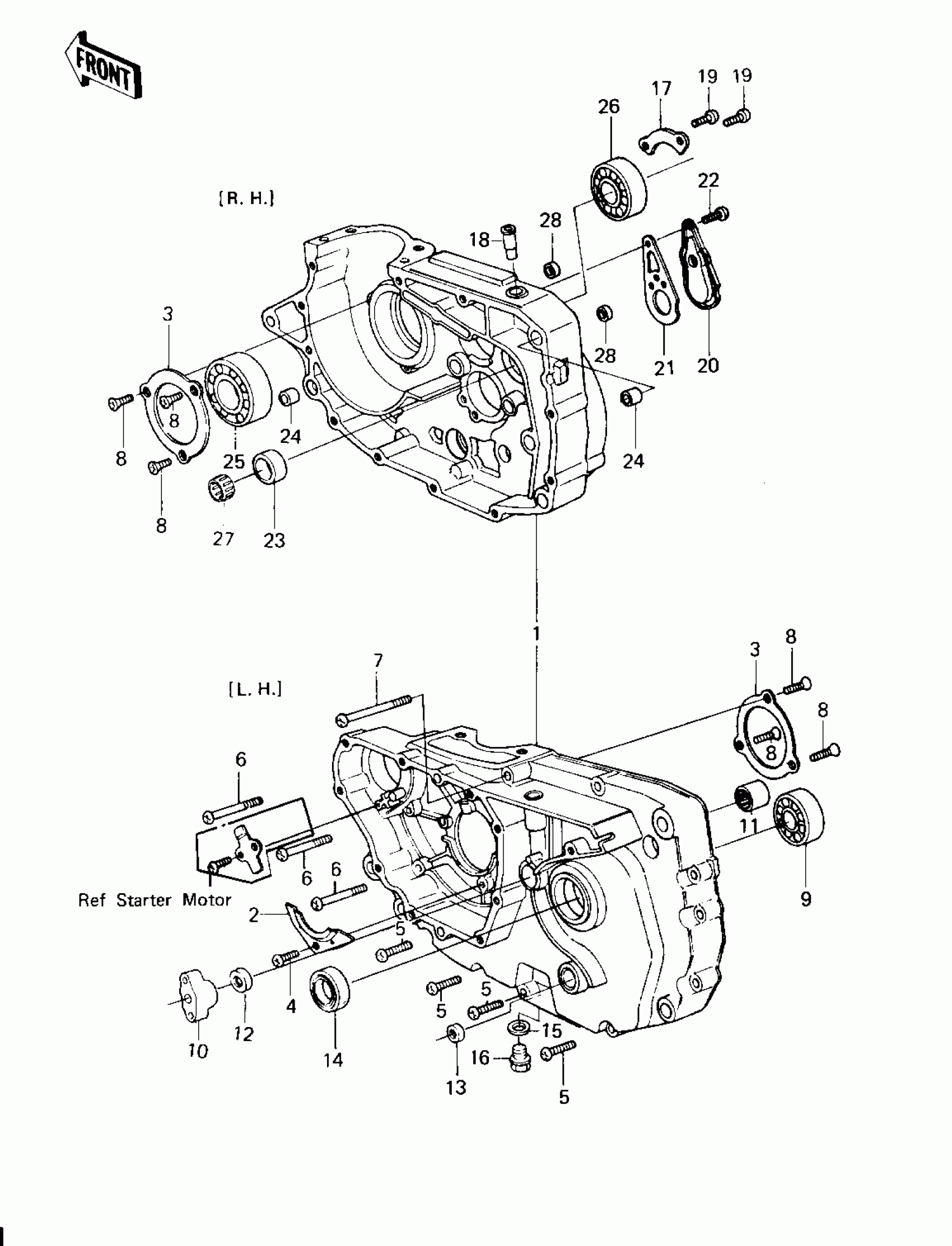

Kawasaki KLT200 CRANKCASE ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

CRANKCASE SET,F.BLACK

14001-5078

Unavailable

2

PLATE,POSITIONING

14014-035

$5.24

3

PLATE-POSITION,CRANK BEARING

14014-1004

$11.61

4

SCREW-PAN-CROS,6X14

220B0614

$1.48

5

SCREW PAN HEAD 6X30

220B0630

$3.41

6

SCREW PAN HEAD 6X55

220B0655

$4.12

7

SCREW-PAN-CROS,6X75

220B0675

$4.66

8

SCREW-CSK-CROS,6X16

221B0616

$0.59

9

BEARING-BALL,#6205C3

601B6205

$19.57

10

COLLAR,PUSH ROD

92027-1467

Unavailable

11

BRG,NEEDLE,HMK1515B

92046-060

$18.53

12

OIL SEAL,PUSH ROD

92050-077

Unavailable

13

SEAL-OIL

92050-082

$8.58

14

SEAL-OIL,TC32457

92049-1159

$8.60

15

GASKET,12X22X2

92065-097

$0.74

16

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

17

PLATE-POSITION

14014-037

$4.60

18

FITTING,BREATHER

14067-006

$21.09

19

SCREW-PAN-CROS,6X14

220B0614

$1.48

20

CAP

16078-002

$7.59

21

GASKET

16079-002

Unavailable

22

SCREW-PAN-CROS,6X14

220B0614

$1.48

23

BUSHING,23X30X13

92028-132

$38.06

24

PIN,DOWEL,14X14

92042-032

Unavailable

25

BEARING-BALL,#6306

92045-037

$42.66

26

BEARING,BALL#6006

92045-038

Unavailable

27

BEARING-NEEDLE

92046-1184

$21.25

28

PLUG

92066-1282

$6.51
