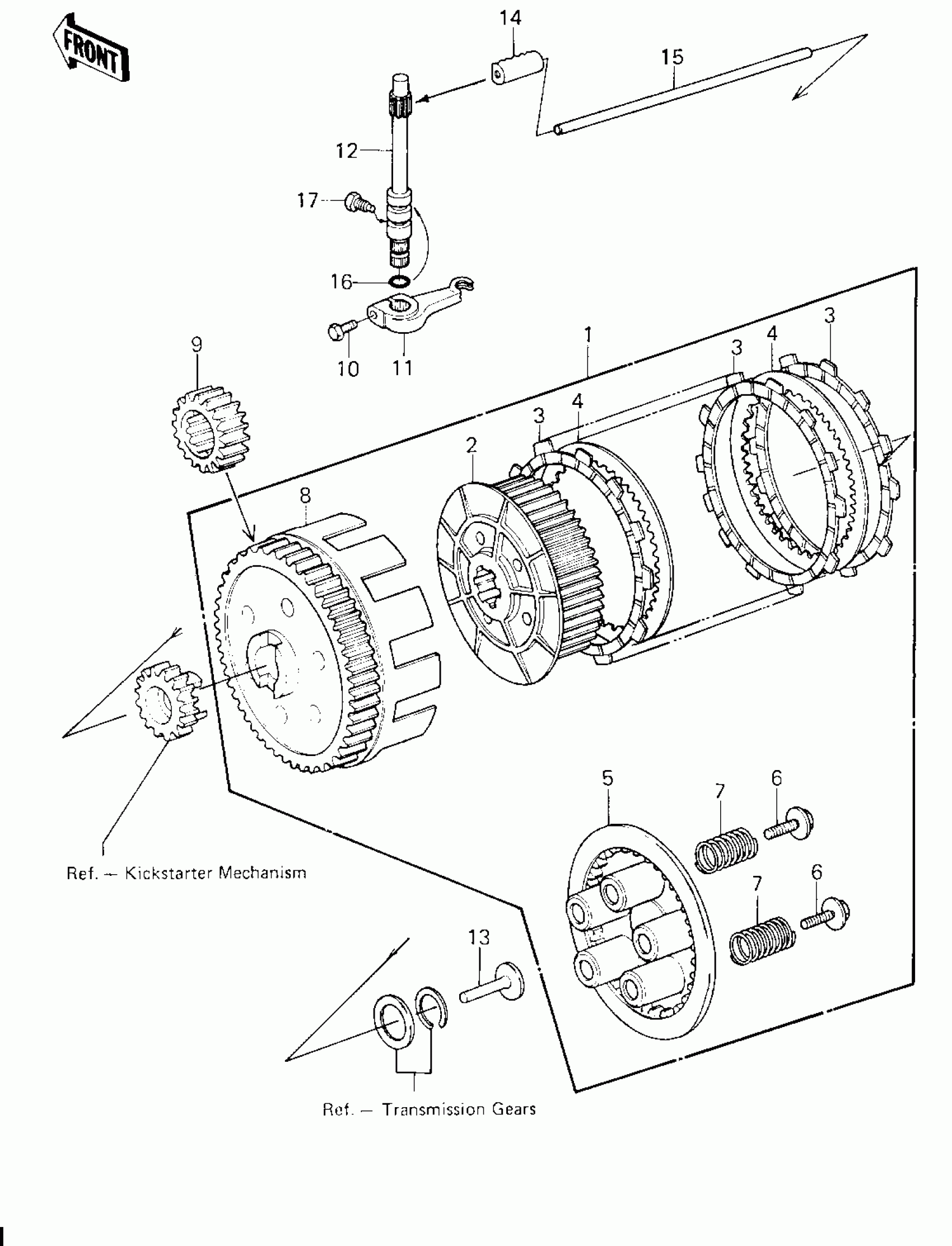

Kawasaki KLT200 CLUTCH ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1052

Unavailable

2

HUB,CLUTCH

13087-1001

$108.45

3

PLATE,CLUTCH FRICTION

13088-1008

Unavailable

4

PLATE-CLUTCH,T=1.6

13089-013

$13.16

5

PLATE,CLUTCH OPERATNG

13187-1005

Unavailable

6

BOLT,FLANGED,6X18

92001-1066

$6.22

7

SPRING,CLUTCH

92081-083

$8.53

8

HOUSING-COMP-CLUTCH

13095-1032

Unavailable

9

GEAR-PRIMARY,19T

13097-1039

Unavailable

10

BOLT-UPSET

112G0618

$1.01

11

LEVER,CLUTCH RELEASE

13103-028

Unavailable

12

SHAFT,CLUTCH RELEASE

13106-006

Unavailable

13

PUSHER-CLTCH SPRG PLT

13116-016

Unavailable

14

ROD-PUSH,CLUTCH,6T

13116-1040

$22.29

15

ROD,CLUTCH PUSH,LONG

13116-1002

Unavailable

16

O RING,10MM

670B2010

$1.50

17

BOLT,CLUTCH RELEASE

92003-130

$6.01
