Description

Price

1

HARNESS,MAIN

26001-4011

$42.41

2

FUSE ASSY

26004-013

Unavailable

3

FUSE,20A,L=25

26006-005

$5.06

4

WIRE,MAGNETIC SWITCH

26010-051

$34.44

5

WIRE-LEAD,BATTERY GROUND

26010-052

$21.47

6

BAND

92072-3505

Unavailable

7

BOLT-UPSET 6X14

112B0614

Unavailable

8

WASHER SPRING 6MM

461F0600

$0.69

9

LAMP-ASSY,IGNITION

23016-1025

Unavailable

10

BULB 12V 3W

92069-018

$4.87

11

SWITCH-ASSY-IGNITION

27005-1117

Unavailable

12

BRKT,SWITCH

32059-4001

$15.65

13

WASHER,6.5X16X2

92022-1565

$3.92

14

TUBE,IGNITION SWITCH LAMP

92059-1559

Unavailable

15

DAMPER IGNITION SWITH

92075-4016

Unavailable

16

YUA BAT 12N10-3B

26012-050

$61.24

17

LABEL-WARNING,BATTERY

56040-1036

Unavailable

18

KEY-LOCK,BLANK

27008-1103

Unavailable

19

NUT,IGNITION SW LOCK

27007-004

Unavailable

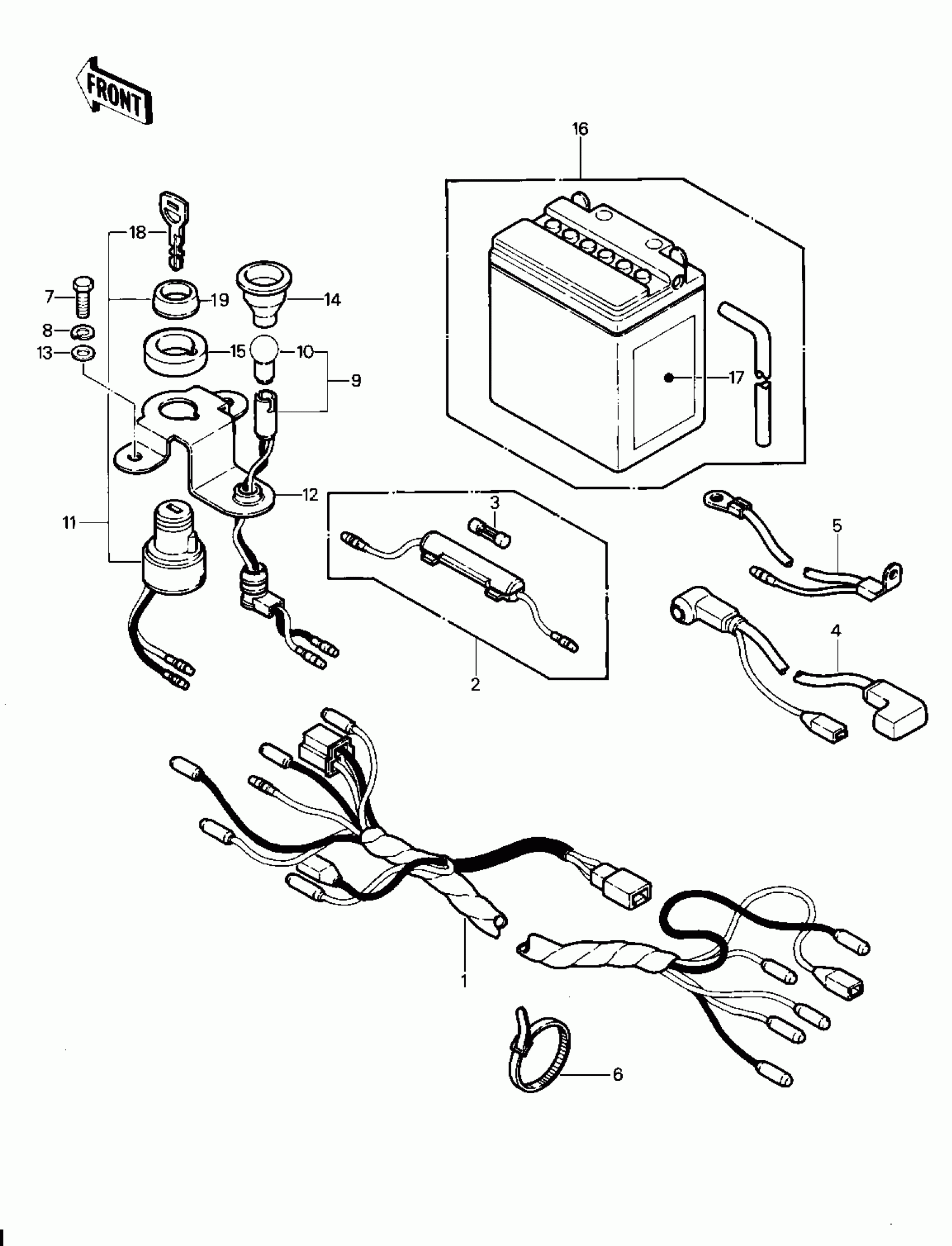

Kawasaki KLT200 CHASSIS ELECTRICAL EQUIPMENT ('81-'82 KL Diagram

HARNESS,MAIN

FUSE ASSY

FUSE,20A,L=25

WIRE,MAGNETIC SWITCH

WIRE-LEAD,BATTERY GROUND

BAND

BOLT-UPSET 6X14

WASHER SPRING 6MM

LAMP-ASSY,IGNITION

BULB 12V 3W

SWITCH-ASSY-IGNITION

BRKT,SWITCH

WASHER,6.5X16X2

TUBE,IGNITION SWITCH LAMP

DAMPER IGNITION SWITH

YUA BAT 12N10-3B

LABEL-WARNING,BATTERY

KEY-LOCK,BLANK

NUT,IGNITION SW LOCK
