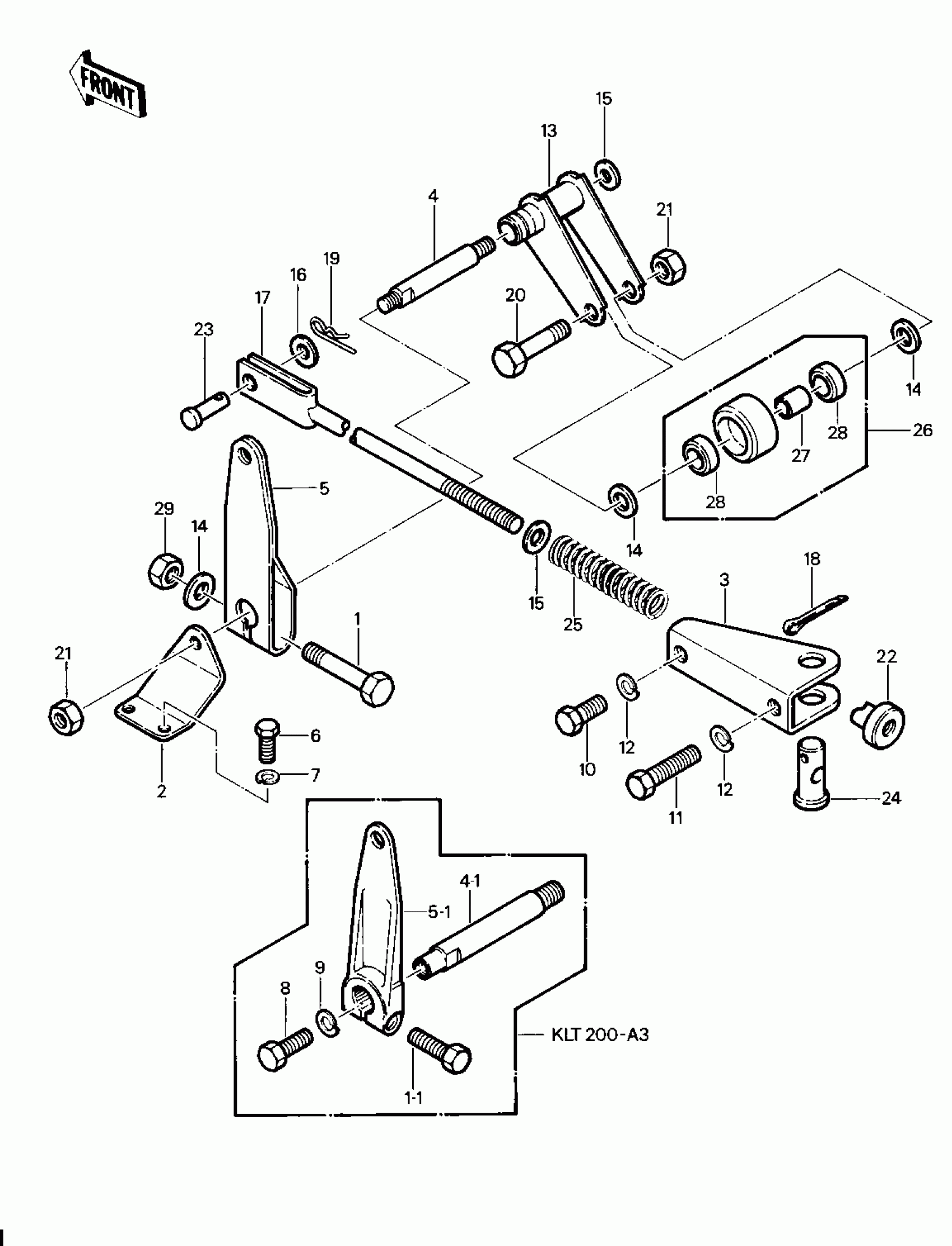

Kawasaki KLT200 CHAIN TENSIONER ('81-'82 KLT200-A1/A2/A3 Diagram
#
Description
Price
1-1
BOLT-SMALL-UPSET
115G0835
$4.54
2
BRACKET,LEVER TENSION
11034-4060
Unavailable
3
BRACKET,CHAIN ADJUST
11034-4061
Unavailable
4-1
SHAFT,L=90
13107-4008
Unavailable
5-1
LEVER-ARM-TENSIONER S
13168-5002
Unavailable
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
WASHER SPRING 6MM
461F0600
$0.69
8
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
9
WASHER SPRING 8MM
461F0800
$0.40
10
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
11
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
12
WASHER SPRING 8MM
461F0800
$0.40
13
LEVER-ARM-TENSIONER S
13168-5002
Unavailable
14
WASHER PLAIN 8MM
411B0800
$0.93
15
WASHER-PLAIN,10MM
411B1000
$0.93
16
WASHER PLAIN 12MM
411B1200
$0.93
17
ROD,CHAIN TENSIONER
46102-4001
$42.32
18
PIN,COTTER
550D3230
$2.33
19
PIN-SNAP,12MM
554A1200
$3.57
20
BOLT,HEX HEAD,8X45
92001-4008
Unavailable
21
NUT,LOCK,8MM
92015-1124
$5.42
22
NUT,BRAKE ROD ADJUSTG
92015-4008
$12.81
23
PIN,12X22
92043-4004
$7.55
24
PIN,18X33
92043-4005
$15.77
25
SPRING,14X20
92081-1287
$6.17
26
ROLLER,CHAIN ADJUST
92122-4004
$35.97
27
SPACER,CHN GDE ROLLER
92027-4007
$8.54
28
BEARING-BALL,608LLU/2A
92045-1009
$35.22
