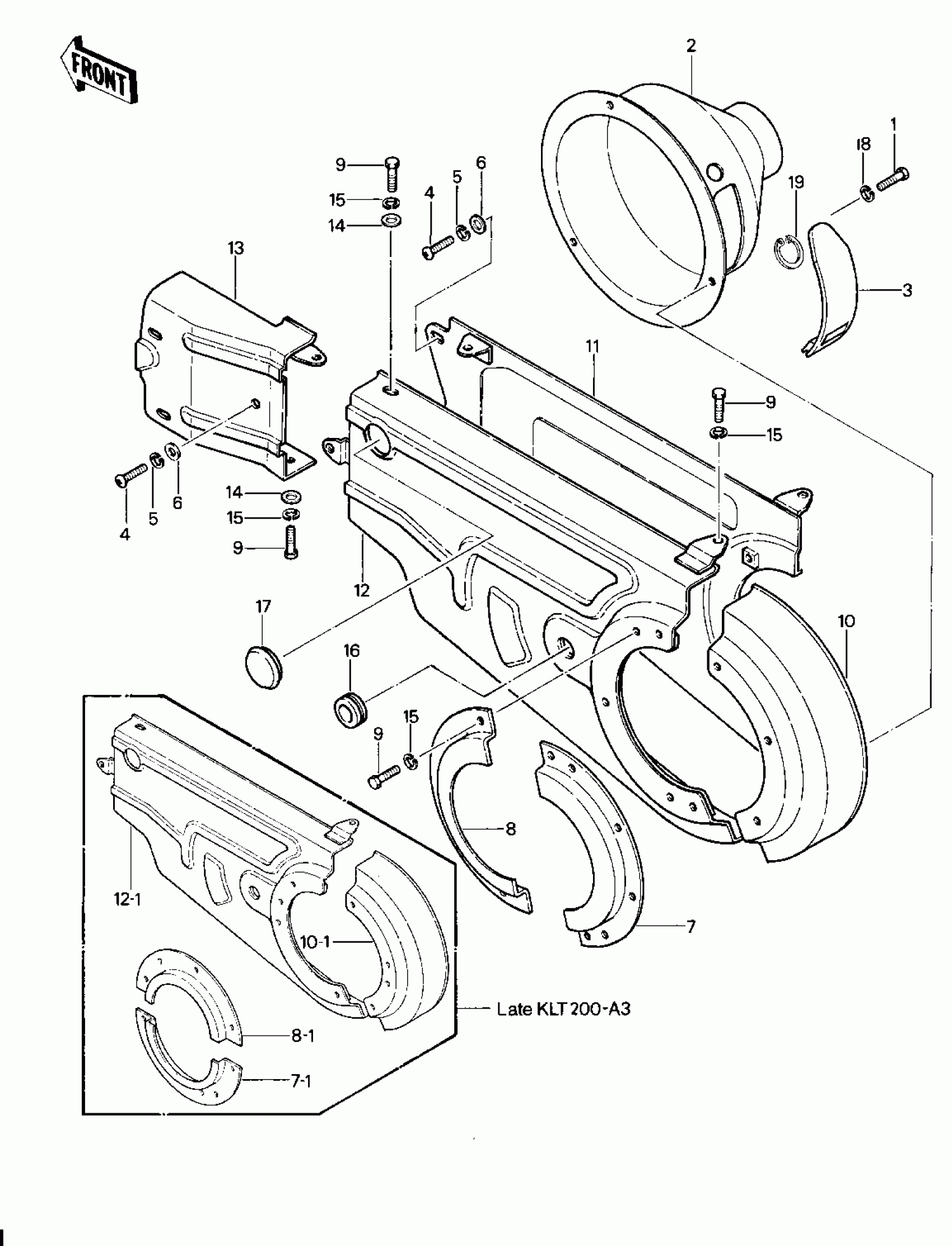

Kawasaki KLT200 CHAIN CASE (KLT200-A2/A3) Diagram

#

Description
Price

1

BOLT-UPSET,6X12

112G0612

Unavailable

2

COVER,DIFFERENTIAL

14025-4009

Unavailable

3

COVER,DIFFERENTIAL

14025-4010

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.07

7

BRKT,CHAIN CASE,RR

11034-4055

Unavailable

7-1

BRACKET,SMALL

11036-1455

Unavailable

8

BRKT,CHAIN CASE,FR

11034-4065

Unavailable

8-1

BRACKET,LARGE

11036-1454

Unavailable

9

BOLT-UPSET,6X12

112G0612

Unavailable

10

CASE-CHAIN,RR

36014-1059

$51.42

10-1

CASE-CHAIN,RR

36014-1059

$51.42

11

CASE-CHAIN,INNER

36014-1041

$59.69

12

CASE-CHAIN,SET

36014-5002

$154.74

12-1

CASE-CHAIN,FR

36014-1060

$110.19

13

CASE-CHAIN,FR

36014-1049

$80.72

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.07

15

WASHER SPRING 6MM

461F0600

Unavailable

16

GROMMET HARNESS 22MM

92071-012

Unavailable

17

PLUG CHAIN CASE

92074-004

$4.58

18

WASHER SPRING 6MM

461F0600

Unavailable

19

CIRCLIP-TYPE-C,20MM

480J2000

$2.12
