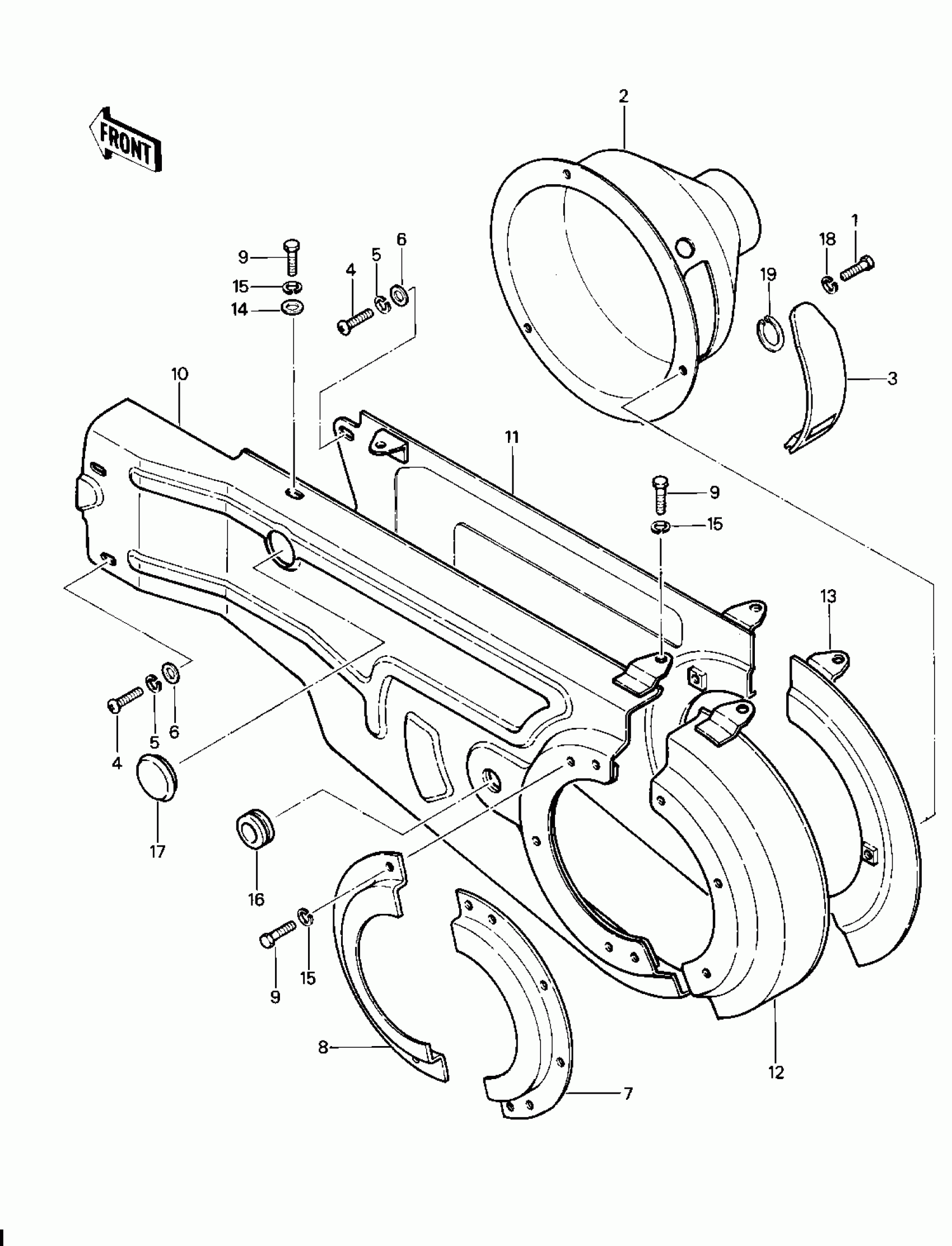

Kawasaki KLT200 CHAIN CASE (KLT200-A1) Diagram

#

Description
Price

1

BOLT-UPSET,6X12

112G0612

$1.45

2

COVER,DIFFERENTIAL

14025-4009

Unavailable

3

COVER,DIFFERENTIAL

14025-4010

Unavailable

4

SCREW PAN HEAD 6X12

220B0612

Unavailable

5

WASHER SPRING 6MM

461F0600

$0.69

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

7

BRKT,CHAIN CASE,RR

11034-4055

Unavailable

8

BRKT,CHAIN CASE,FR

11034-4065

Unavailable

9

BOLT-UPSET,6X12

112G0612

$1.45

10

CASE-CHAIN,OUTSIDE

36014-4002

$55.49

11

CASE-CHAIN,INNER

36014-1041

$59.19

12

CASE-CHAIN,RR

36014-1059

$50.78

13

UNAVAILABLE IN PRICE BOOK

36014-4006

$0.17

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

15

WASHER SPRING 6MM

461F0600

$0.69

16

GROMMET HARNESS 22MM

92071-012

Unavailable

17

PLUG CHAIN CASE

92074-004

$5.18

18

WASHER SPRING 6MM

461F0600

$0.69

19

CIRCLIP-TYPE-C,20MM

480J2000

$2.71
