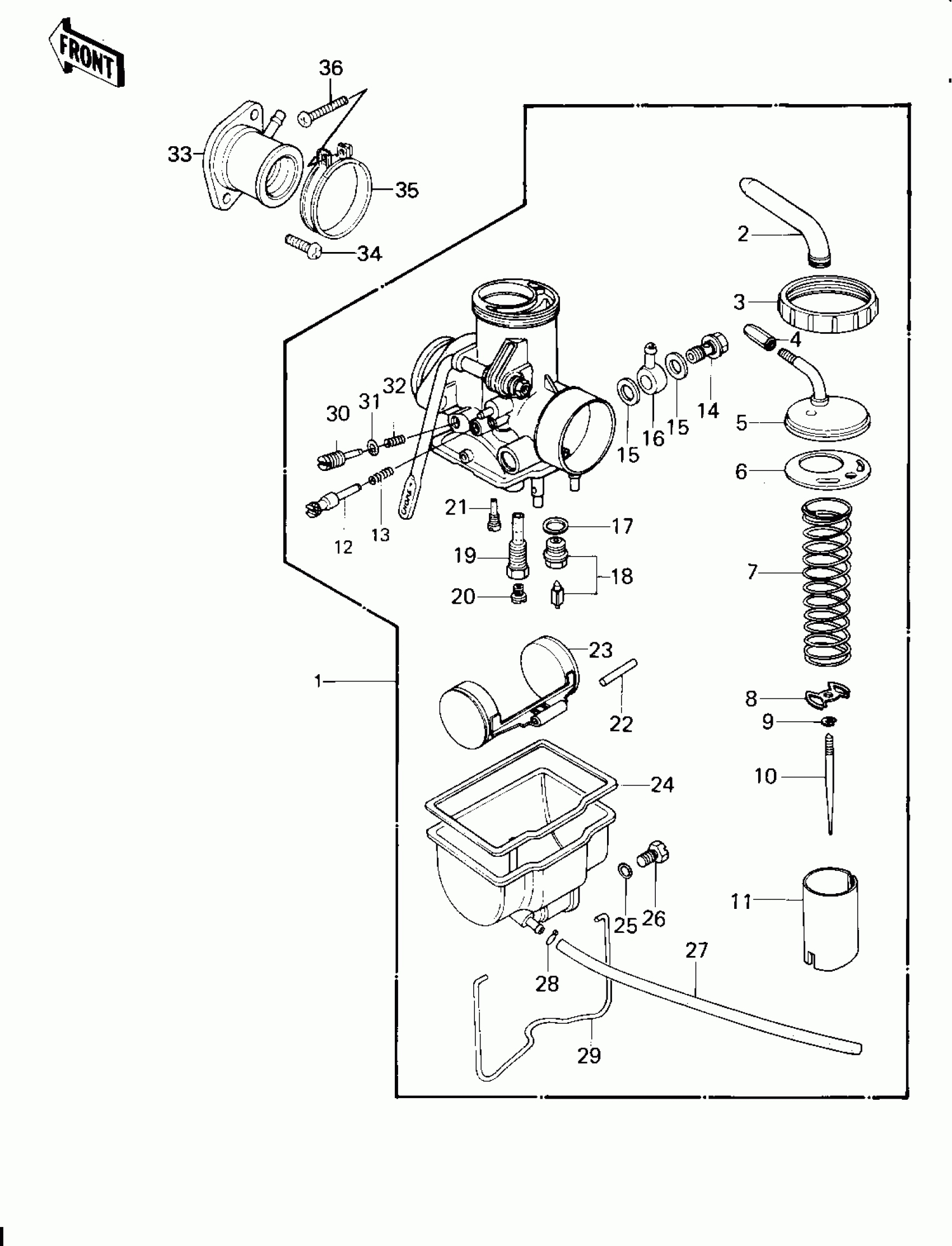

Kawasaki KLT200 CARBURETOR (-F/NO. 522924) Diagram
#
1
CARBURETOR ASSY,
16001-1326
$337.23
2
CAP,CABLE ADJUSTER
49006-1007
Unavailable
3
CAP,MIXING CHAMBER
16004-1001
$38.56
4
ADJUSTER,CABLE
16002-1002
Unavailable
5
TOP,MIXING CHAMBER
16005-1002
$37.68
6
GASKET,MIXING CHAMBER
11009-1026
Unavailable
7
SPRING,THROTTLE
92081-1268
$8.15
8
SEAT,THROTTLE VAL SPR
16007-1003
$6.44
9
CIRCLIP,JET NEEDLE
92037-1039
Unavailable
10
JET NEEDLE,N04D
16009-1075
$42.95
11
VALVE,THRR,0.6/1.2
16025-1015
$96.55
12
SCREW,THROTTLE STOP
16021-1004
$13.34
13
SPRING,THROT STOP SCR
92081-1036
$4.68
14
BOLT,BANJO
92001-1413
$21.21
15
WASHER,PLAIN
92022-1021
$3.59
16
CONNECTOR,BANJO
92005-1031
$17.92
17
GASKET,FLOAT VAV SEAT
11009-1027
Unavailable
18
FLOAT VALVE ASSY
16030-1014
Unavailable
19
HOLDER,NEEDLE JET
16065-1006
Unavailable
20
JET-MAIN,#98
92063-1005
$15.04
20
JET-MAIN,#92
92063-1004
Unavailable
20
JET-MAIN,#95
92063-1001
Unavailable
20
JET-MAIN,#100
92063-1006
Unavailable
20
JET-MAIN,#102
92063-1090
Unavailable
21
JET-PILOT,#35
92064-1035
$19.04
22
PIN,FLOAT
92043-1011
$6.02
23
FLOAT
16031-1003
Unavailable
24
GASKET,FLOAT CHAMBER
11009-1028
Unavailable
25
"O" RING,DRAIN SCREW
92055-1003
Unavailable
26
SCREW,DRAIN
92009-1003
Unavailable
27
HOSE,FUEL OVERFLOW
92059-1046
Unavailable
28
CLAMP,TUBE
92037-1142
$4.31
29
CLIP,FLOAT CHAMB FITT
92037-1041
$9.55
30
SCREW,PILOT AIR ADJUS
16014-1003
$21.69
31
"O" RING
92055-1013
Unavailable
32
SPRING,PILOT AIR ADJ
92081-1035
$4.69
33
HOLDER-CARBURETOR
16065-1035
Unavailable
34
SCREW-PAN-CROS,6X14
220B0614
$1.48
35
CLAMP,CARBURETOR HLDR
92037-178
Unavailable
36
SCREW-PAN-CROS,5X25
220B0525
$3.67
