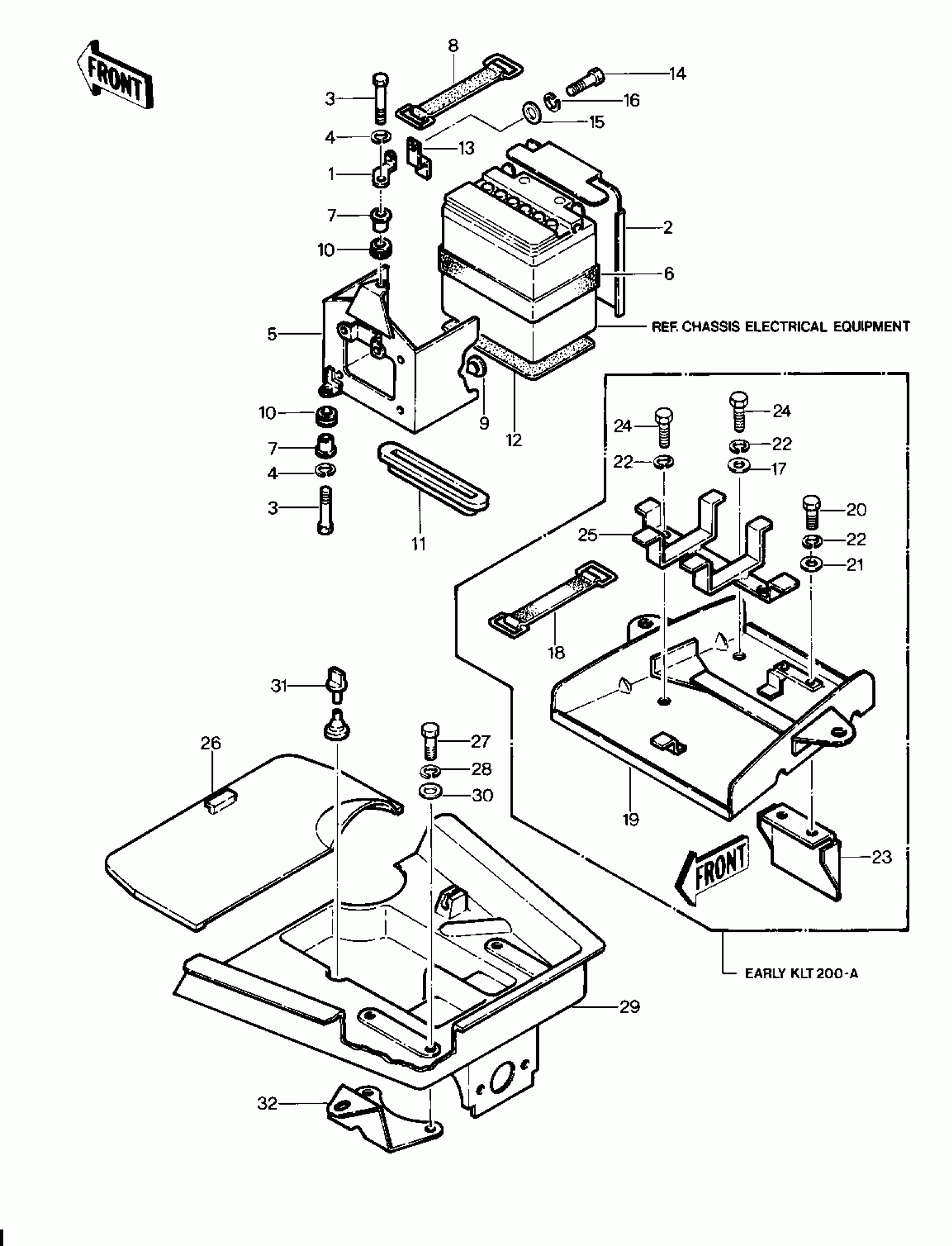

Kawasaki KLT200 BATTERY CASE/TOOL CASE ('81-'82 KLT200-A Diagram

#

Description
Price

1

BRAKET

11034-4051

Unavailable

2

COVER

14025-4007

Unavailable

3

BOLT-UPSET,6X20

112G0620

$2.12

4

WASHER SPRING 6MM

461F0600

$0.69

5

CASE-BATTERY

32097-4002

$53.54

6

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

7

COLLAR

92027-1045

$5.52

8

BAND,L=142.1

92072-006

$12.76

9

DAMPER,RUBBER

92075-078

$4.39

10

DAMPER

92075-277

$2.84

11

DAMPER

92075-280

Unavailable

12

DAMPER,BATTRY CASE

92075-4019

$1.62

13

HOLDER-BATTERY

13091-4006

Unavailable

14

SCREW-PAN-CROS,6X16

220B0616

$2.84

15

WASHER PLAIN 6MM

411B0600

$2.84

16

WASHER SPRING 6MM

461F0600

$0.69

26

COVER-TOOL CASE

14025-4022

Unavailable

27

BOLT-UPSET

112G0618

$1.01

28

WASHER SPRING 6MM

461F0600

$0.69

29

CASE,TOOL

32098-4002

$10.29

30

WASHER,6.5X20X1.6

92022-125

$1.40

31

BAND,HEAD LAMP

92072-077

Unavailable

32

BRACKET

32065-4008

$5.79
