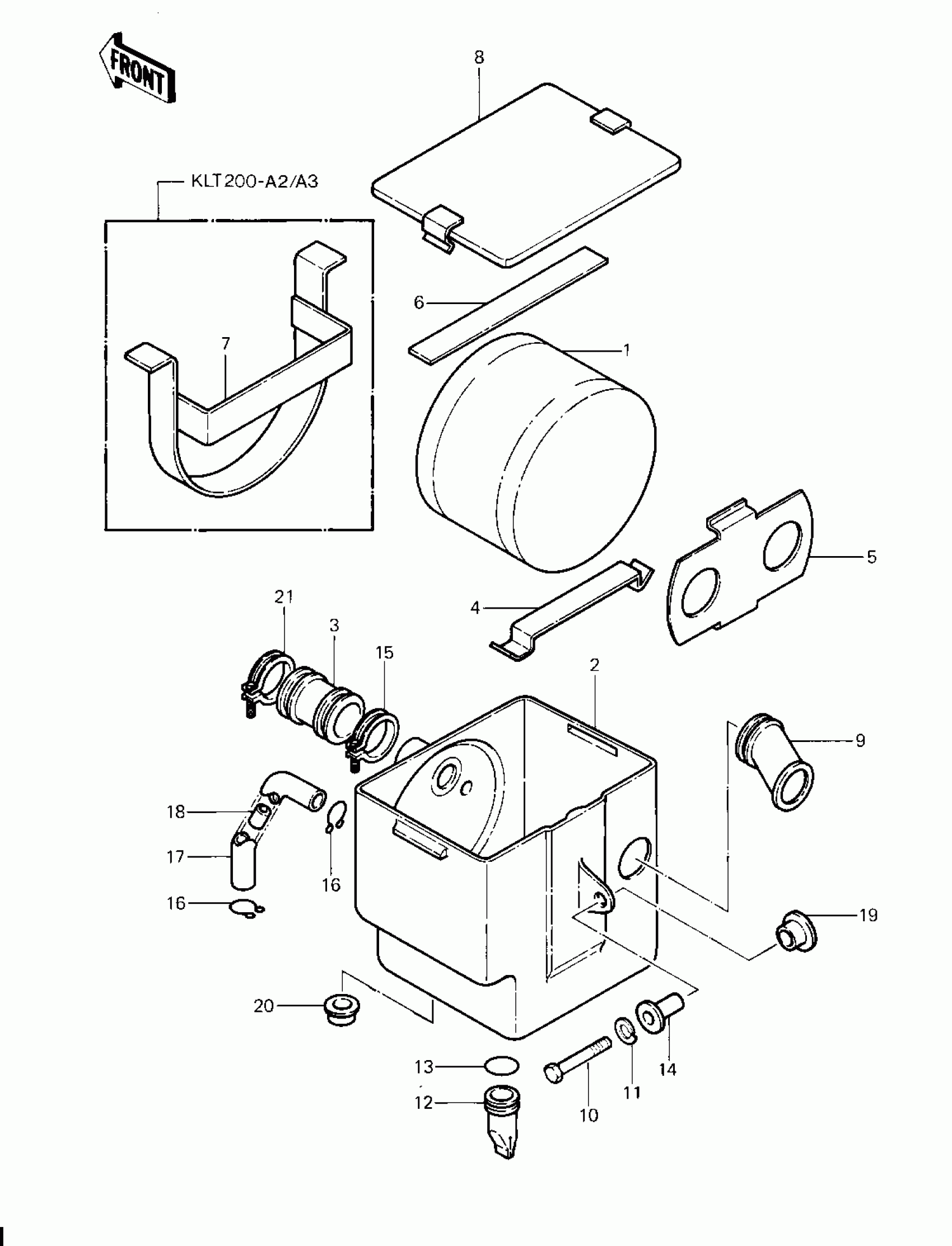

Kawasaki KLT200 AIR CLEANER ('81-'82 KLT200-A1/A2/A3) Diagram

#

Description
Price

1

AIR FILTER

11010-4003

Unavailable

2

CASE,AIR FILTER

11011-4003

Unavailable

3

PIPE,INLET

11015-065

Unavailable

3

DUCT,AIR INLET

14073-1067

Unavailable

7

HOLDER,AIR FILTER

13091-4010

Unavailable

8

COVER

14025-4006

Unavailable

9

DUCT,AIR FILTER

14073-1013

$24.56

10

BOLT 6X22

112B0622

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

BOOT

49006-1012

Unavailable

13

O RING,20MM

670B2020

$1.01

14

COLLAR

92027-194

$4.36

15

CLAMP

92037-177

Unavailable

16

CLAMP,TUBE

92037-213

$3.43

17

TUBE,BREATHER

92059-1154

Unavailable

18

BREATHER VALVE

92062-1002

Unavailable

19

DAMPER RUBBER

92075-112

$3.57

20

DAMPER RUBBER,SIG LM

92075-158

$4.33

21

CLAMP

92037-177

Unavailable

21

CLAMP-INLET PIPE

92037-061

Unavailable
