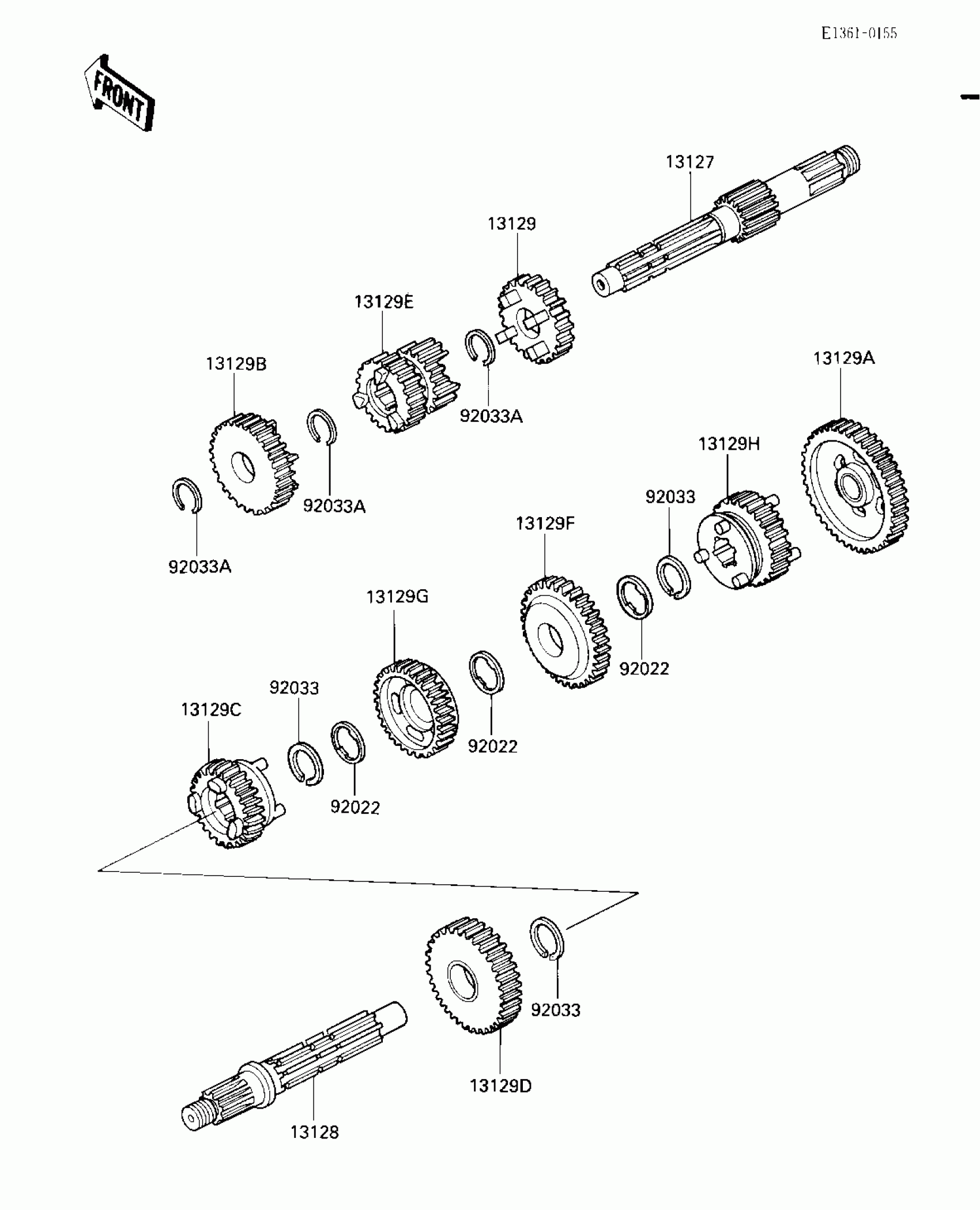

Kawasaki KLT185 TRANSMISSION Diagram

SHAFT-TRANSMISSION INPUT,13T

13127-1109

Unavailable

SHAFT-TRANSMISSION OUTPUT

13128-1122

Unavailable

GEAR,INPUT 4TH,26T

13129-1541

Unavailable

GEAR,OUTPUT LOW,40T

13129-1543

Unavailable

GEAR,INPUT TOP,28T

13129-1674

Unavailable

GEAR,OUTPUT TOP,26T

13129-1690

Unavailable

GEAR-REVERSE,33T

13129-1691

Unavailable

GEAR,INPUT 2ND&3RD,22T&18T

13129-1696

Unavailable

GEAR,OUTPUT 2ND,36T

13129-1697

Unavailable

GEAR,OUTPUT 3RD,31T

13129-1698

Unavailable

GEAR,OUTPUT 4TH,28T

13129-1699

Unavailable

WASHER,22.3X27X0.5

92022-198

$5.52

RING-SNAP,20X25.5X1.2

92033-025

$4.96

RING-SNAP

92033-028

$8.79
