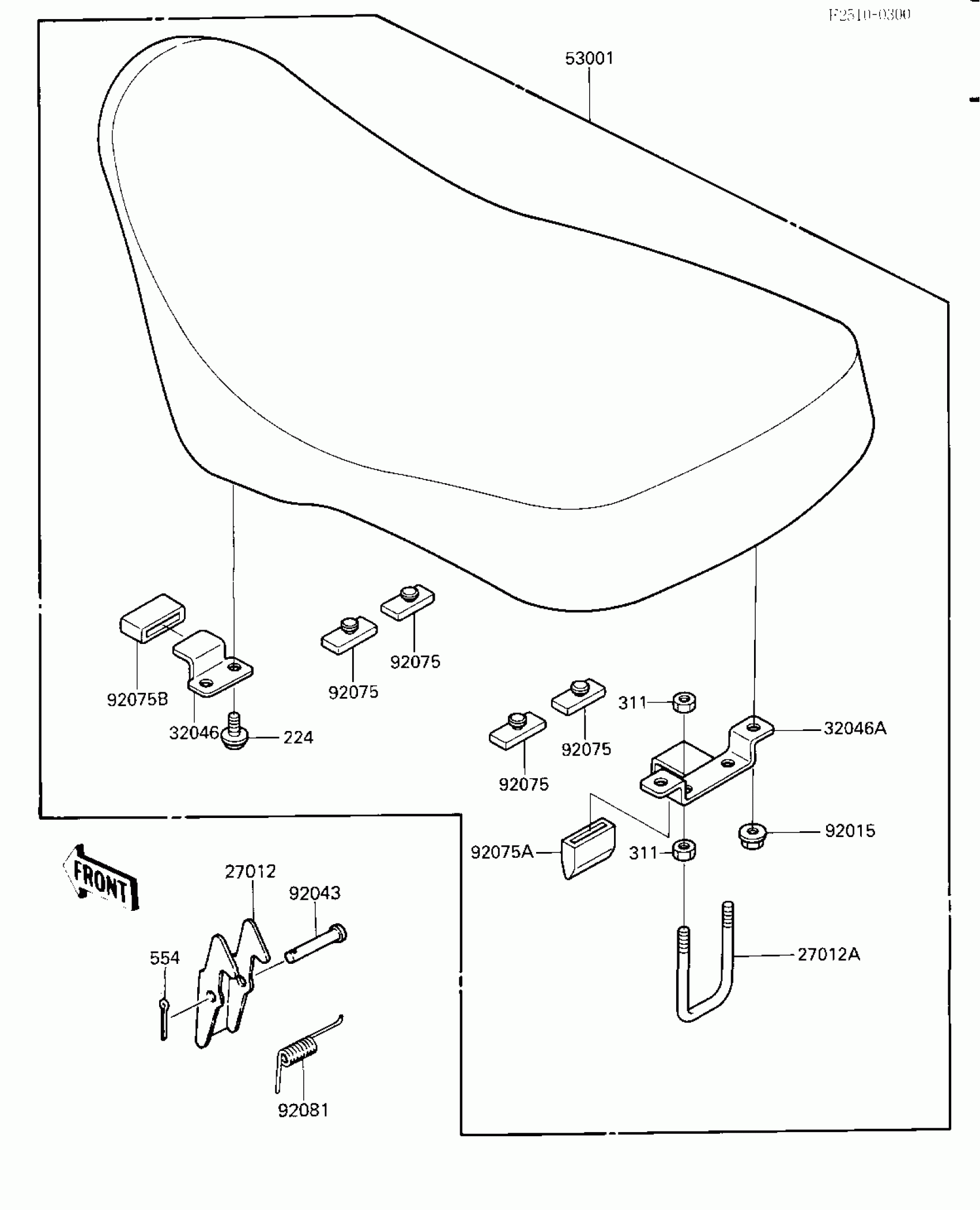

Kawasaki KLT185 SEAT Diagram

Description

Price

27012

HOOK,SEAT

27012-4009

$10.12

27012A

HOOK,SEAT

27012-4010

$8.28

32046

BRACKET-SEAT,FR

32046-4018

Unavailable

32046A

BRACKET,SEAT,RR

32046-4025

$8.28

53001

SEAT-ASSY

53001-1429

$163.84

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92043

PIN, DUAL SEAT PIVOT

53011-006

$5.24

92075

DAMPER

92075-1054

$5.00

92075A

DAMPER,SEAT

92075-219

Unavailable

92075B

DAMPER,SEAT

92075-4039

Unavailable

92081

SPRING

92081-4020

Unavailable

224

SCREW,6X14

92009-1333

Unavailable

311

NUT 6MM

311B0600

$0.93

554

PIN,SNAP

554A0600

$0.93
