Description

Price

32033

PIPE,FR-HUB

32033-1321

$9.29

32033A

PIPE,FRONT HUB,L=70

32033-1325

$7.81

41035

PANEL-ASSY-BRAKE,FR

41035-1171

$210.42

41038

DRUM,FR

41038-1119

$108.83

41048

SHOE-BRAKE

41048-1085

$22.53

41050

CAM-BRAKE

41050-1056

$28.92

41053

LEVER-BRAKE CAM

41053-1055

$28.39

41068

AXLE,FR,L=345

41068-1173

$64.87

49030

HUB-FR,G.SILVER

49030-1056-F2

$124.95

92001

BOLT,LUG

92001-4006

Unavailable

92002

BOLT,FLANGED,10X22

92002-1312

$3.52

92015

NUT,10MM

92015-1429

$6.88

92022

WASHER

92022-257

Unavailable

92027

COLLAR

92027-1783

$11.12

92045

BEARING BALL HUB-ASSY

92045-4005

Unavailable

92055

RING-O,BRAKE CAM

92055-004

$4.80

92055A

"0" RING

92055-4001

$1.99

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92093

SEAL,FR HUB

92093-1157

Unavailable

130

BOLT-FLANGED,6X30

130G0630

$1.42

311

NUT 6MM

311B0600

$0.93

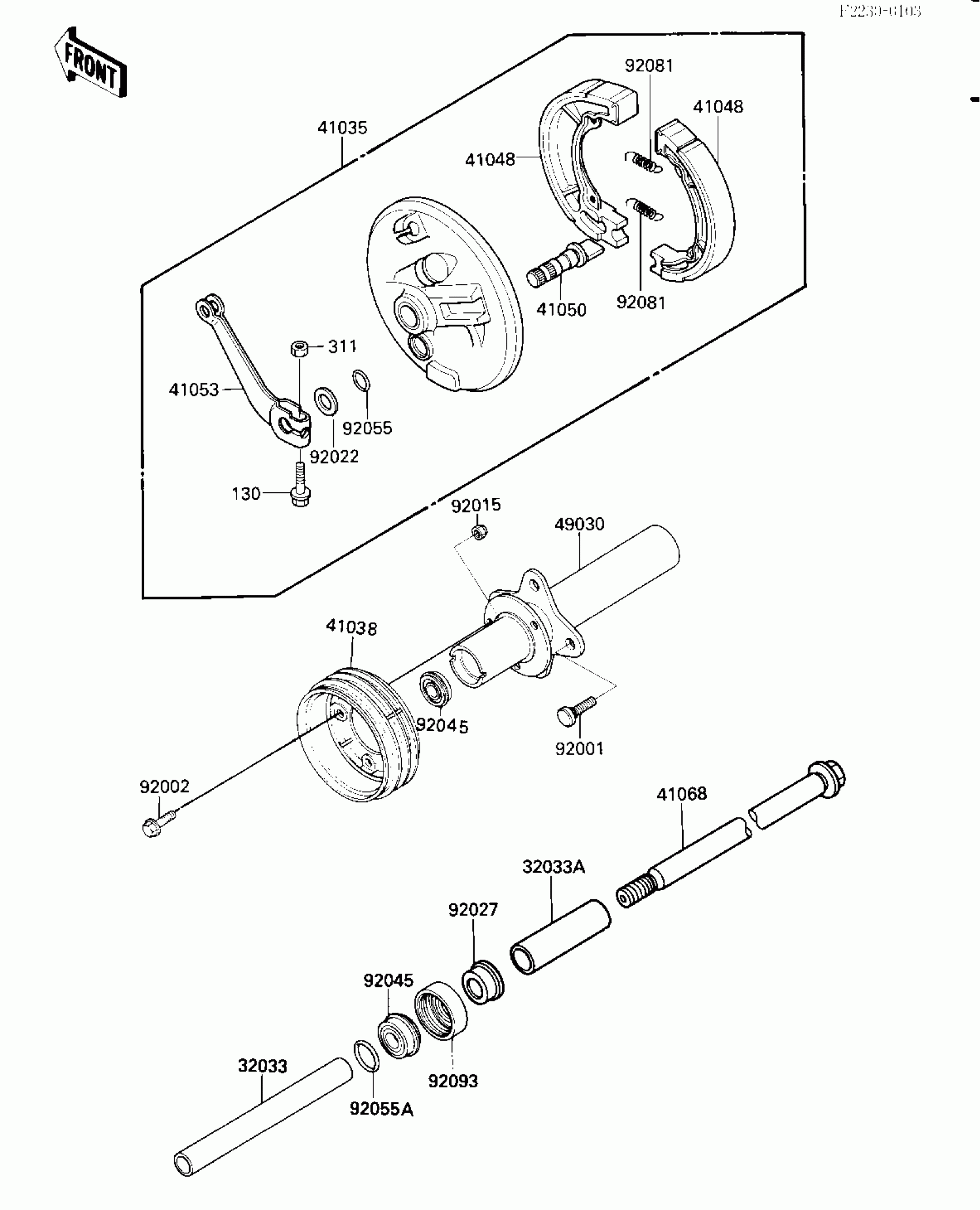

Kawasaki KLT185 FRONT HUB/BRAKE Diagram

PIPE,FR-HUB

PIPE,FRONT HUB,L=70

PANEL-ASSY-BRAKE,FR

DRUM,FR

SHOE-BRAKE

CAM-BRAKE

LEVER-BRAKE CAM

AXLE,FR,L=345

HUB-FR,G.SILVER

BOLT,LUG

BOLT,FLANGED,10X22

NUT,10MM

WASHER

COLLAR

BEARING BALL HUB-ASSY

RING-O,BRAKE CAM

"0" RING

SPRING,BRAKE SHOE

SEAL,FR HUB

BOLT-FLANGED,6X30

NUT 6MM
