Description

Price

11012

CAP,STEERING STEM

46098-012

Unavailable

11043

BRACKET,AIR FILTER,LH

11043-1540

Unavailable

11043A

BRACKET,IGNITION COIL

11043-1773

Unavailable

32002

FRAME-COMP

32002-1848

Unavailable

35011

STAY,REAR FENDER

35011-1281

$28.82

55020

GUARD

55020-4017

$35.30

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM

92015-4007

Unavailable

92022

WASHER,10.5X35X4,BLAC

92022-4028

Unavailable

92048

RACE,STEERING STEM BEARING

92047-014

$12.72

92048A

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

92048B

RACE,STEERING STEM BEARING

92048-009

$14.10

113

BOLT-SMALL-FINE,12X25

113J1225

$3.81

130

BOLT-FLANGED,6X45

130B0645

$0.86

130A

BOLT-FLANGED,6X10

130C0610

$3.84

180

BOLT 6X12

180B0612

$4.01

184

BOLT-UPSET-WP-SMALL

184J0820

$5.33

600

BALL-STEEL,3/16

600A0600

$1.07

600A

BALL-STEEL,1/4

600A0800

$0.62

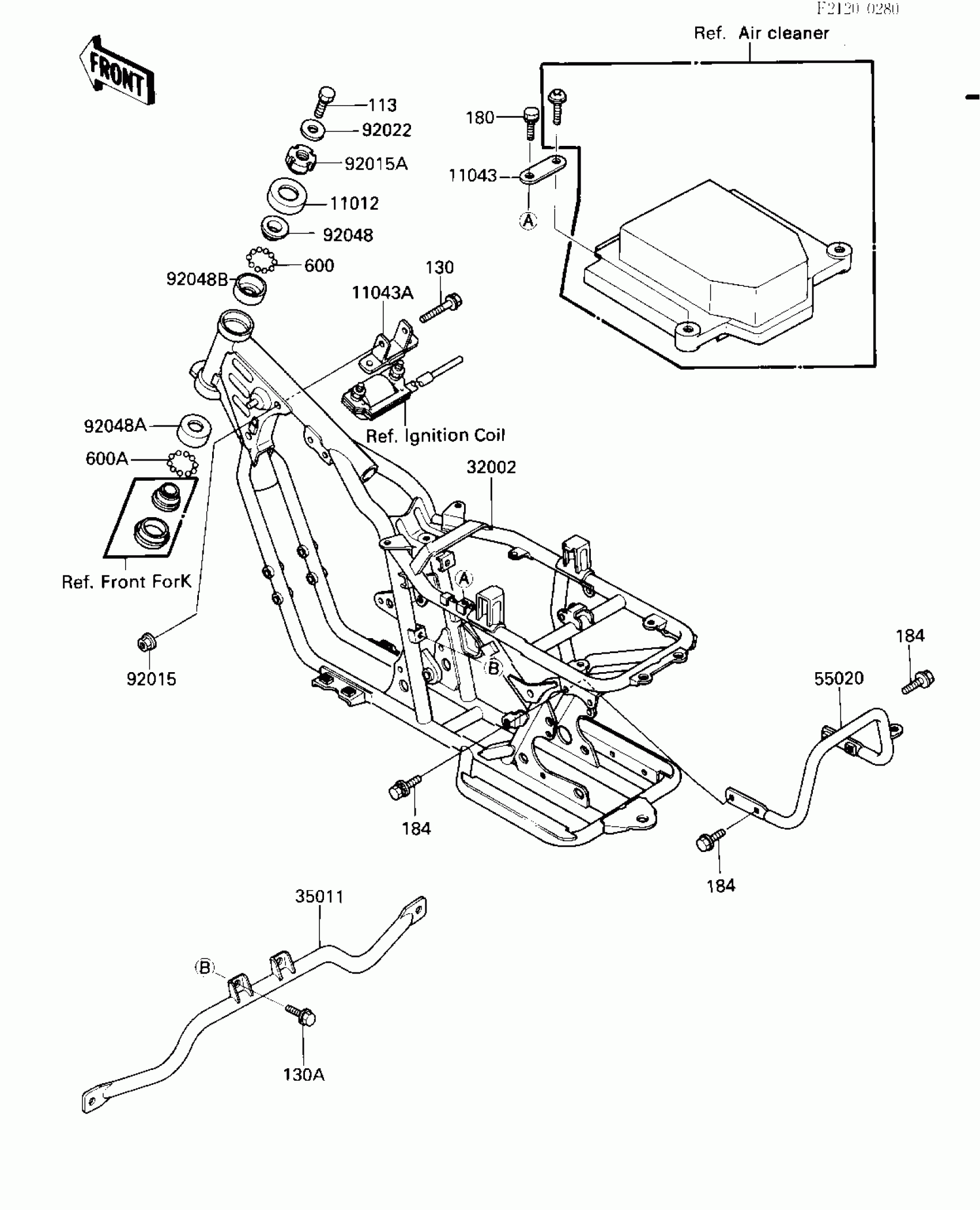

Kawasaki KLT185 FRAME Diagram

CAP,STEERING STEM

BRACKET,AIR FILTER,LH

BRACKET,IGNITION COIL

FRAME-COMP

STAY,REAR FENDER

GUARD

NUT,FLANGED,6MM

NUT,STEERING STEM

WASHER,10.5X35X4,BLAC

RACE,STEERING STEM BEARING

RACE,STEERING STEM BEARING,LWR

RACE,STEERING STEM BEARING

BOLT-SMALL-FINE,12X25

BOLT-FLANGED,6X45

BOLT-FLANGED,6X10

BOLT 6X12

BOLT-UPSET-WP-SMALL

BALL-STEEL,3/16

BALL-STEEL,1/4
